ARTDriveG Instruction manual Chapter 7 - Parameters Description • 95
d.170 Exp dig out sta (Expansion board digital outputs status)
Status of the expansion digital outputs terminals of the regulation board. Each output can be set by the
associated drive function (see I.100, ..., I.103) or by writing the virtual dig. 004 parameter H.010 (see figure 7.4.6).

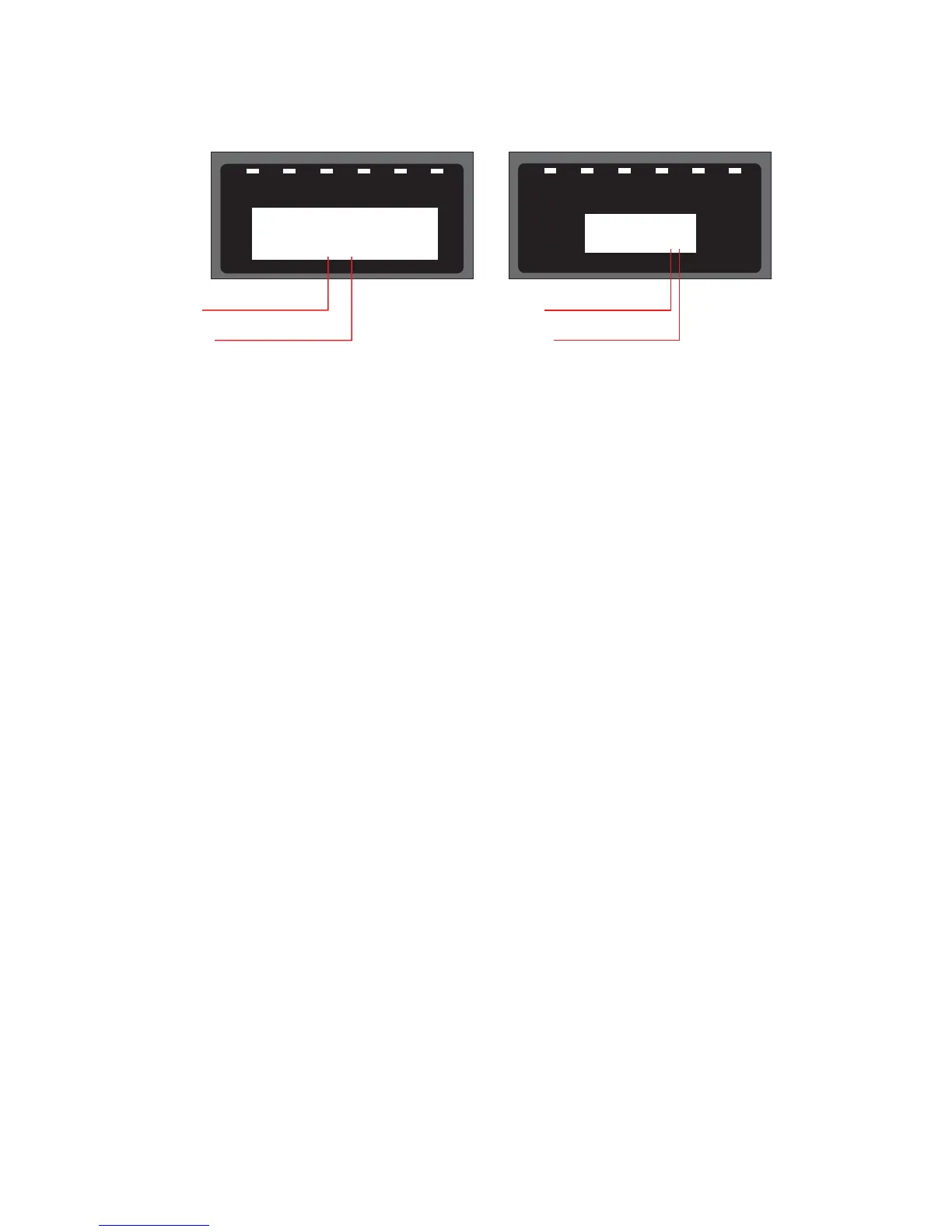

According to the type of keypad in use, the status of expansion digital outputs will be displayed as follows:
Reset
Hz A VPrg Rev Fwd
Exp Dig out stat
Exp Digital output1=OFF
Exp Digital output2=ON
2_
Hz A VPrg Rev Fwd
I.
Exp Digital output 2 = ON
Exp Digital output1=OFF
d.171 Exp DrvDigOutSta (Expansion board terminal outputs status)
Status of the expansion digital outputs set by the drive function programmed by parameters I.100 through I.103.
See example d.170
d.172 Exp VirDigOutSta (Expansion board virtual digital outputs status)
Status of the expansion virtual digital outputs set via serial link or field bus card, by writing parameter H.010.
See example d.170
d.200 An in 1 cnf mon (Analog input 1 configuration monitor)
Monitor of the function associated to the Analog input 1:
[0] Null funct No function programmed
[1] Freq ref 1 Frequency reference 1 chapter FREQ & RAMPS, section Reference sources (F.050)
[2] Freq ref 2 Frequency reference 2 chapter FREQ & RAMPS, section Reference sources (F.051)
[3] Boost lev fac Level of voltage boost chapter PARAMETERS, section Boost (P.121)
[4] OT level fact Level of over torque chapter PARAMETERS, section OT level factor src (P.242)
[5] V red lev fac Output voltage reduction level chapter PARAMETERS, section Voltage Red Config P.422)
[6] DCB level fac DC braking current level chapter PARAMETERS, section DC brake Config (P.301)
[7] Ramp ext fact Ramp extension factor chapter PARAMETERS, section Ramp Config (F.260)
[8] Freq ref fact Multiplier factor for frequency reference chapter FREQ & RAMP, section F.080
d.201 An in 1 monitor (Analog input 1 monitor)
Analog input 1 - block output (%). See Fig. 7.4.1 .
d.202 An in 1 term mon (Analog input 1 terminals monitor)
Analog input 1 block input (%). See Fig. 7.4.1 .
It monitors the signal at the An In 1 regulation board terminals, according to the value of An inp 1 Type (I.200)
parameter:
• selection: [0] +/- 10V: 0V = 0%, -10V = -100%, +10V = +100%
• selection: [1] 0-10V/0-20mA: 0V = 0%, +10V = +100%
d.210 An in 2 cnf mon (Analog input 2 configuration monitor)
Monitor of the function associated to Analog Input 2. See param. d.200.
d.211 An in 2 monitor (Analog input 2 monitor)
Analog input 2 - block output (%). See figure 7.4.1.
