Siemens 3RW44 - Dimension Drawings

General technical data
11.5 Dimension drawings
3RW44 soft starters
Manual, 03/2017, NEB535219502000/RS-AB/008
283
11.5
Dimension drawings
11.5.1
Dimension drawings

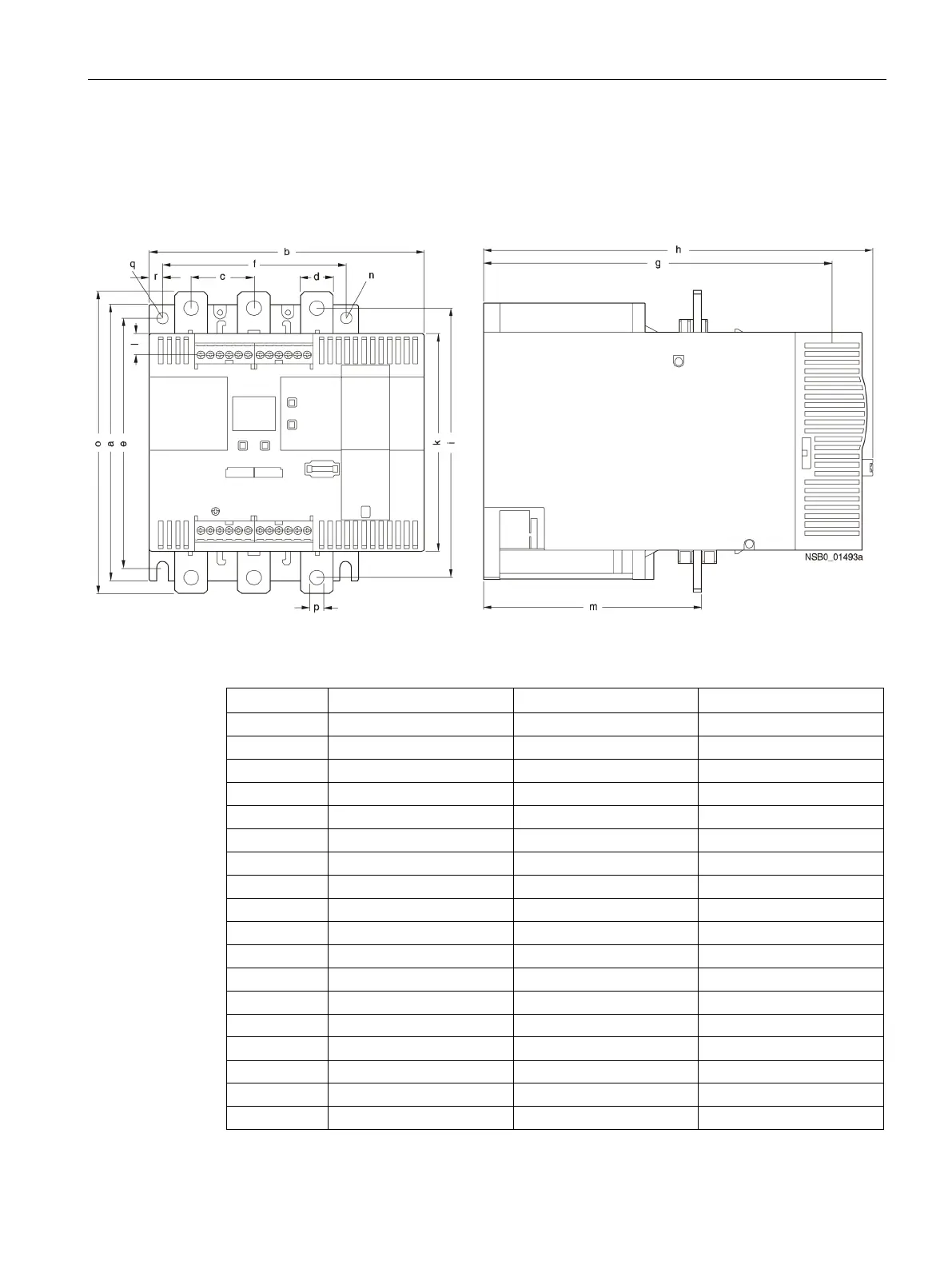

Figure 11-1 3RW44 2, 3RW44 3, 3RW44 4
3RW44 2
3RW44 3
3RW44 4
a
180 mm (7.09 in)
180 mm (7.09 in)
210 mm (8.27 in)
b
170 mm (6.69 in)
170 mm (6.69 in)
210 mm (8.27 in)
c
37 mm (1.46 in)
37 mm (1.46 in)
48 mm (1.89 in)
d
11 mm (0.43 in)
17 mm (0.67 in)
25 mm (0.98 in)
e
167 mm (6.57 in)
167 mm (6.57 in)
190 mm (7.48 in)
f
100 mm (3.94 in)
100 mm (3.94 in)
140 mm (5.51 in)
g
240 mm (9.45 in)
240 mm (9.45 in)
269 mm (10.59 in)
h
270 mm (10.63 in)
270 mm (10.63 in)
298 mm (11.73 in)
i
174 mm (6.85 in)
174 mm (6.85 in)
205 mm (8.07 in)
k
148 mm (5.83 in)
148 mm (5.83 in)
166 mm (6.54 in)
l
7.5 mm (0.30 in)
7.5 mm (0.30 in)
16 mm (0.63 in)
m
153 mm (6.02 in)
153 mm (6.02 in)
166 mm (6.54 in)
n
7 mm (0.28 in)
7 mm (0.28 in)
9 mm (0.35 in)
o
184 mm (7.24 in)
198 mm (7.80 in)
230 mm (9.06 in)
p 6.6 mm (0.26 in) 9 mm (0.35 in) 11 mm (0.43 in)
q
M6 10 Nm (89 lbf.in)
M6 10 Nm (89 lbf.in)
M8 15 Nm (134 lbf.in)
r 10 mm (0.39 in) 10 mm (0.39 in) 10 mm (0.39 in)
Weight
6.5 kg
7.9 kg
11.5 kg
