Function Description Type
Data block
No.
Number of the data block that is loaded onto the
server.
DISPLAY
INPUT
(Digits from 0
to 9999)
Start byte Start byte as of which the data of the data block will
be loaded (inclusive).
DISPLAY
INPUT
(Digits from 0
to 999,999)
Number of
bytes
Number of bytes loaded from the start address. DISPLAY
INPUT
(Digits from 0
to 999,999)
Function description "Trigger variable monitor(s)"
Using the "Trigger variable monitor(s)" action, the variables configured in the
selected variable monitors are read from the control and uploaded. In order to
execute variable monitors as an action in a control monitor, they must have been
configured beforehand. All configured variable monitors are offered for selection
here.

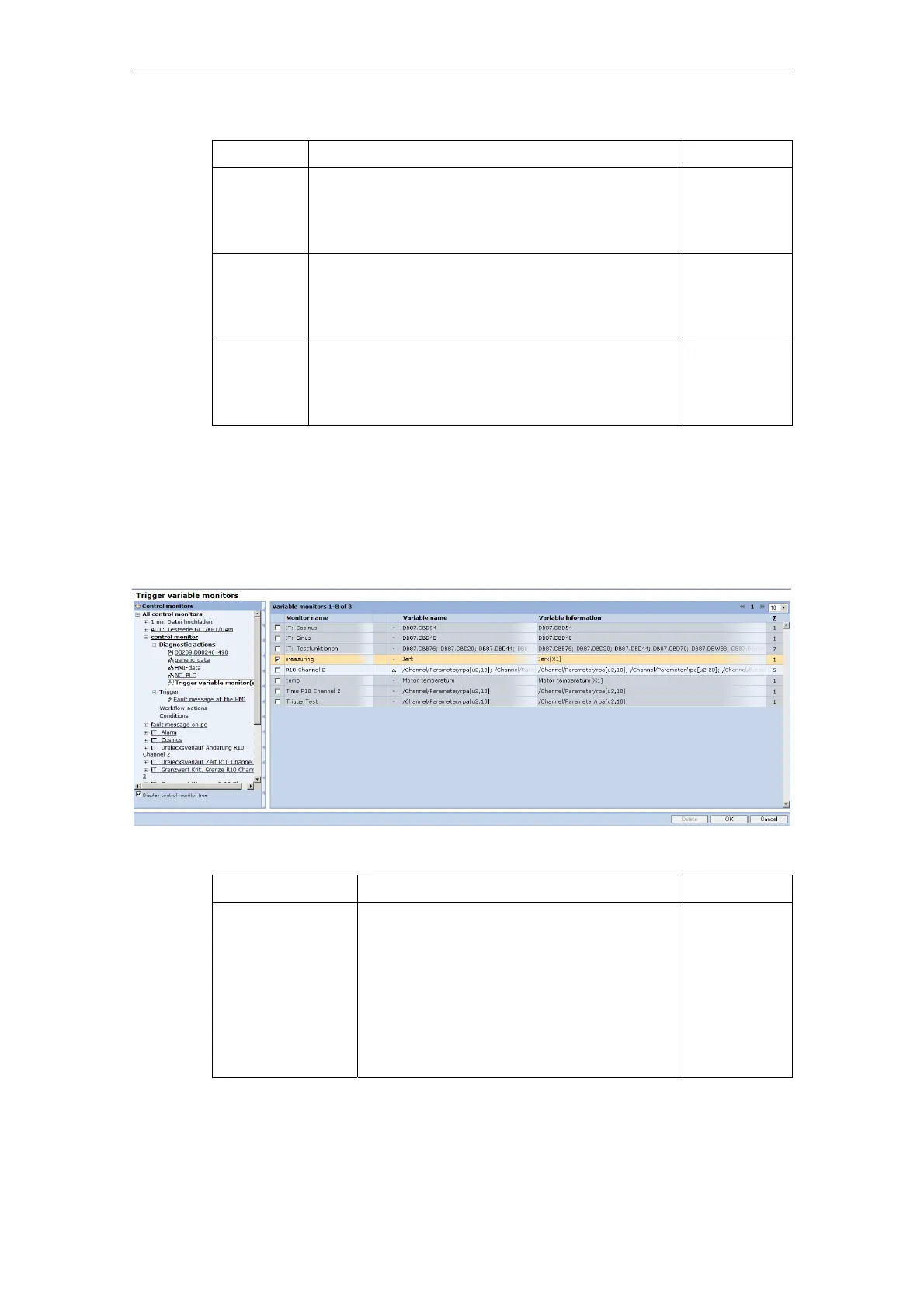

Fig. 3-65: Variable monitors - list view
Function Description Type
Trigger variable
monitor
At the trigger event, the variable monitor
acquires the variables that are configured in
the variable monitor.
In addition to a label indicating that they
have been selected, the background of each
variable monitor is highlighted in yellow.
SELECTION
Labels show detailed information for each
variable monitor that is described in the
configuration of the variable monitors.
The configuration of variable monitors is described in the Section: Configuring
variable monitors.
