Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
108 Operating Instructions, 07/2017, A5E36770603-AB

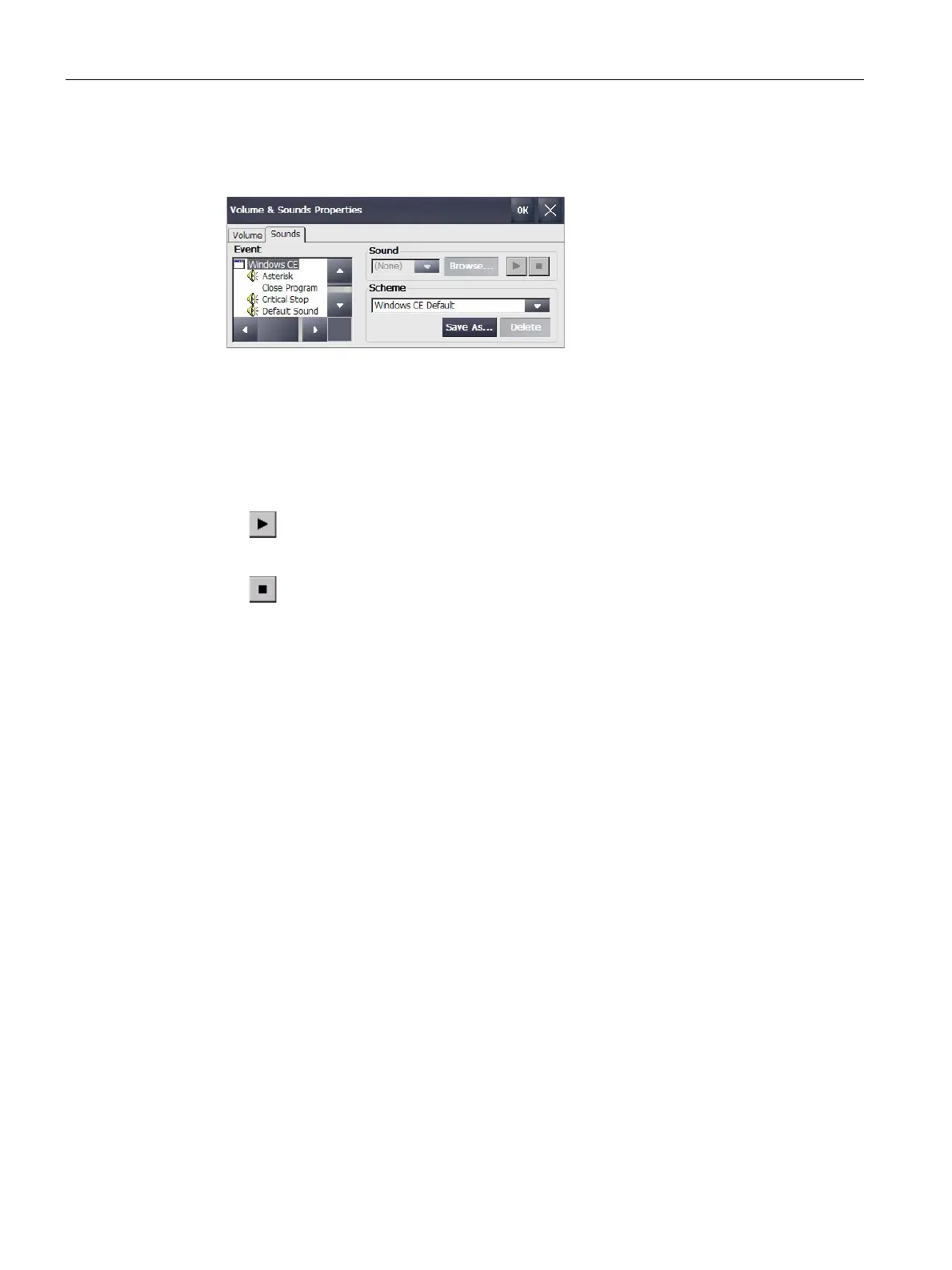

Assigning sounds and events
1. Change to the "Sound" tab.
2. Under "Event", select the event to which you want to assign a sound.
Events to which a sound is already assigned are marked with a loudspeaker symbol.
3. Select the desired sound for the event under "Sound":
– Select either a standard sound or use "Browse" to select a "*.WAV" file from the file
system.
– Test the sound with "Play", if required.
– Stop the output with "Stop", if required.
4. Confirm your entries with "OK".
Sounds and properties of acoustic signals are set.
