8.10
Des
cript
ion of t
he
por
ts
Com
for
t P
an
els
Oper
ati
ng
Inst
r
ucti
ons
,
07
/20
17
,
A
5E3677
0603
-AB
225
8.10.5

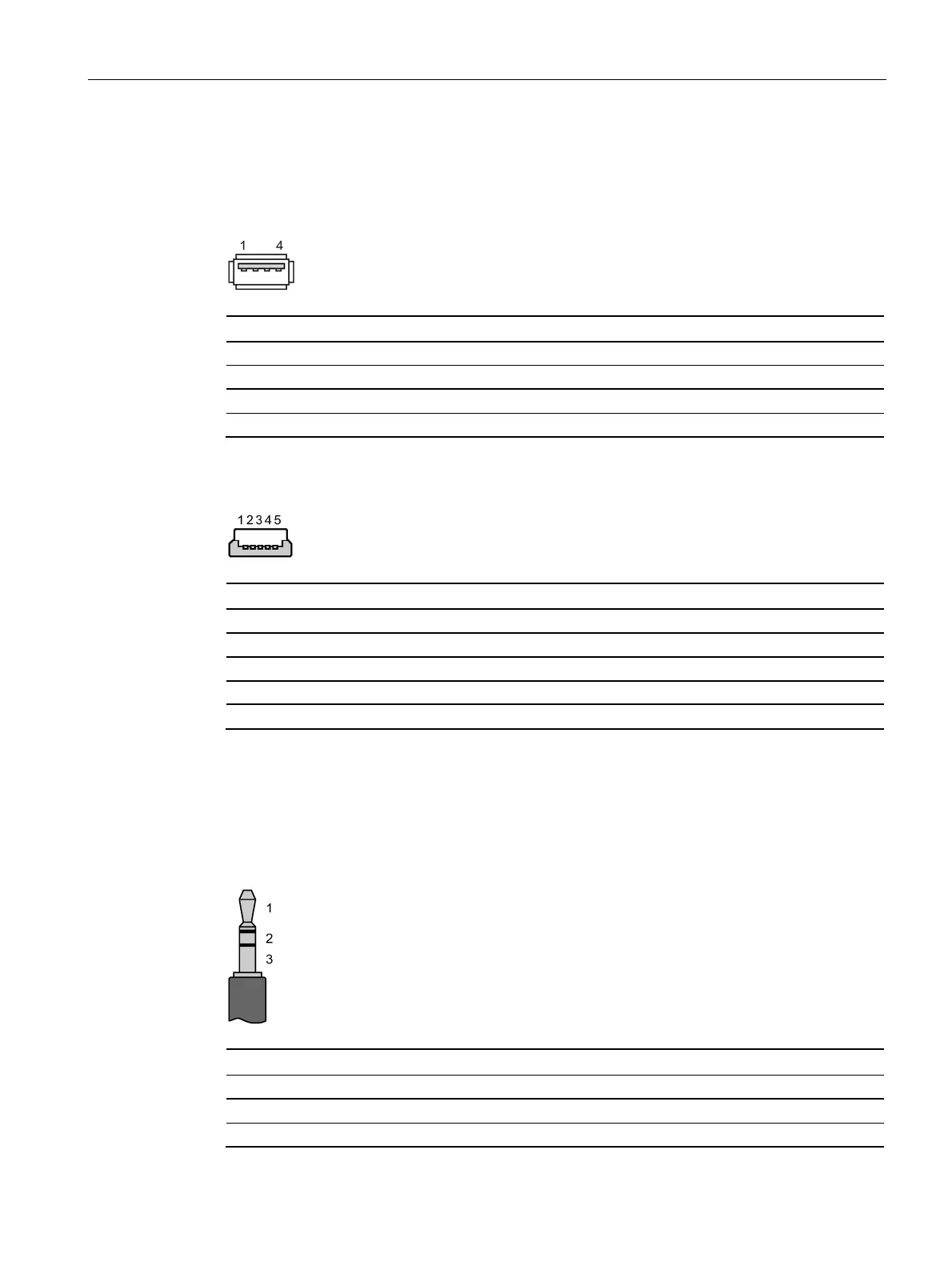

USB
USB socket
type A
Name of int
erf
ace on HMI device: X61/X62
Pin
Assignment
1
+5
VDC, out (max
.
500 mA)
2
USB
-
DN
3
USB
-
DP
4
GND
USB soc
ket type M
ini
-
B of the Comfort V1/
V1.1 devices
Name of int
erf
ace on HMI device: X60
Pin
Assignment
1
-
2
USB
-
DN
3
USB
-
DP
4
-
5
GND
8.10.6
Audio
Name of int
erf
ace on HMI device: X90
Audio plug
Pin
Assignment
1
Left audio
channel
2
Right audio
channel
3
GND
224
226
Table of Contents
Default Chapter
3
Preface
3
Table of Contents
7
1 Overview
13
Product Description
13
Scope of Delivery
15
Configuration of the Devices
16
KP400 Comfort and KTP400 Comfort
16
KP700 Comfort to KP1500 Comfort, TP700 Comfort to TP2200 Comfort
18
Interfaces
20
Accessories
22
The HMI Device in the Operating Process
24
Software Add-Ons
25
2 Safety Instructions
27
General Safety Instructions
27
Security Management for HMI Devices
29
Notes about Usage
30
3 Mounting and Connecting the HMI Device
33
Preparing for Installation
33
Checking the Package Contents
33
Checking the Operating Conditions
34
Selecting a Mounting Position
34
Checking Clearances
37
Preparing the Mounting Cutout
38
Labeling the Function Keys
39
Mounting the Device
42
Connecting the Device
46
Notes on Connection
46
Connecting the Equipotential Bonding Circuit
47
Connecting the Power Supply
49
Connecting the Configuration PC
51
Connecting the Controller
53
Connecting a USB Device
55
Connecting a Printer
56
Connecting an Audio Device
57
Switching on and Testing the HMI Device
58
Securing the Cables
59
4 Commissioning the Device
61
Overview
61
Firmware and Software
61
Memory Concept
61
Changing the Memory Cards
65
Front Operator Controls
67
Operating the Device
69
Reference for System Keys
69
Entering Values with System Keys
73
Parameter Assignment for Comfort Panel
74
Desktop and Start Center
74
Installed Programs
75
Security Mode
76
Overview
76
Using the HMI Device in Password-Protected Security Mode
77
Control Panel
78
Opening the Settings
78
Overview of Functions
78
Operating the Control Panel
80
Display Types for the Screen Keyboard
80
Configuring Operation
83
Changing Display Brightness
83
Change Screen Orientation
84
Configuring the Screen Keyboard
85
Setting the Character Repeat Rate of the Screen Keyboard
86
Setting the Double-Click
87
Calibrating the Touch Screen
88
Restarting the HMI Device
89
General Settings
91
Regional and Language Settings
91
Setting the Date and Time
91
Changing Password Protection
93
Setting the Screen Saver
94
Configuring Transfer
96
Memory Management
99
Backing up Registry Information and Temporary Data
102
Changing the Printer Properties
103
Displaying General System Properties
104
Displaying Information about the Comfort Panel
105
Setting Volume and Sound
106
Changing Internet Settings
109
Changing General Settings
109
Setting the Proxy Server
110
Changing Internet Security Settings
111
Activating Encryption Protocols
112
Importing, Displaying and Deleting Certificates
113
Enabling PROFINET
115
Enabling NTP
117
Configuring Network Operation
118
Overview
118
Specifying the Computer Name of the HMI Device
120
Entering the IP Address and Name Server
121
Changing MPI/PROFIBUS DP Settings
124
Specifying the Logon Data
125
Configuring E-Mail
126
Configuring Telnet for Remote Control
128
Configure Sm@Rt Server
129
Configure Web Server
131
Functions for Service and Commissioning
134
Saving to External Storage Medium - Backup
134
Restoring from External Storage Medium - Restore
136
Update Operating System
139
Load Project from External Storage Medium
142
Using Automatic Backup
146
Editing IP Addresses and Communication Connections
149
Uninterruptible Power Supply
155
Setting the Uninterruptible Power Supply
155
State of the Uninterruptible Power Supply
157
5 Commissioning a Project
159
Overview
159
Operating Modes
160
Using Existing Projects
161
Data Transmission Options
161
Transferring a Project with Wincc
162
Configuring Data Channel and Setting Transfer Mode
162
Starting the Transfer
162
Testing a Project
164
Backup and Restore
165
Overview
165
Backing up and Restoring Data of the HMI Device
166
Updating the Operating System
167
Updating the Operating System of the HMI Device
168
Managing Add-Ons and License Keys
170
Managing Add-Ons
170
Transferring License Keys
171
Managing License Keys
171
6 Operating a Project
173
Overview
173
Function Keys
176
Direct Keys
176
Setting the Project Language
177
Input of Values
178
Entering and Editing Numerical Values
179
Entering or Changing Alphanumeric Values
180
Displaying Infotext
181
Closing the Project
182
7 Maintenance and Care
183
Maintaining and Caring for the Touch Screen and the Keyboard Cover
183
Clean Screen for Touch HMI Devices
183
Spare Parts and Repairs
184
Recycling and Disposal
184
8 Technical Information
185
Software License Agreements
185
Certificates and Approvals
185
Electromagnetic Compatibility
188
Mechanical Ambient Conditions
190
Storage Conditions
190
Operating Conditions
190
Climatic Ambient Conditions
191
Long-Term Storage
191
Transport and Short-Term Storage
191
Operating Conditions
191
Climate Diagram
192
Information on Insulation Tests, Protection Class and Degree of Protection
193
Dimension Drawings
194
Dimension Drawings of the KP400 Comfort
194
Dimension Drawings of the KP700 Comfort
195
Dimension Drawings of the KP900 Comfort
196
Dimension Drawings of the KP1200 Comfort
197
Dimension Drawings of the KP1500 Comfort V1
198
Dimension Drawings of the KP1500 Comfort V2
199
Dimension Drawings of the KTP400 Comfort
200
Dimension Drawings of the TP700 Comfort
201
Dimension Drawings of the TP900 Comfort
202
Dimension Drawings of the TP1200 Comfort
203
Dimension Drawings of the TP1500 Comfort V1
204
Dimension Drawings of the TP1500 Comfort V2
205
Dimension Drawings of the TP1900 Comfort V1
206
Dimension Drawings of the TP1900 Comfort V2
207
Dimension Drawings of the TP2200 Comfort V1
208
Dimension Drawings of the TP2200 Comfort V2
209
Dimensions for Labeling Strips
210
Technical Specifications
213
KP400 Comfort to KP1200 Comfort, KTP400 Comfort to TP1200 Comfort
213
KP1500 Comfort, TP1500 Comfort to TP2200 Comfort
215
Bit Assignment of the Direct Keys
218
KTP400 Comfort
218
KP400 Comfort
218
KP700 Comfort
219
TP700 Comfort
219
KP900 Comfort
220
TP900 Comfort
220
KP1200 Comfort
221
TP1200 Comfort
221
KP1500 Comfort
222
TP1500, TP1900 and TP2200 Comfort
222
Description of the Ports
223
Power Supply
223
Profibus
223
Profinet (Lan)
224
PROFINET (LAN) 10/100/1000 Mb
224
Usb
225
Audio
225
Communication with Controllers
226
Scope of Functions with Wincc
227
Technical Support
231
Service and Support
231
Troubleshooting
232
System Events
232
A.2 Troubleshooting
232
Markings and Symbols
233
Safety-Relevant Symbols
233
Abbreviations
235
Glossary
237
Index
243
