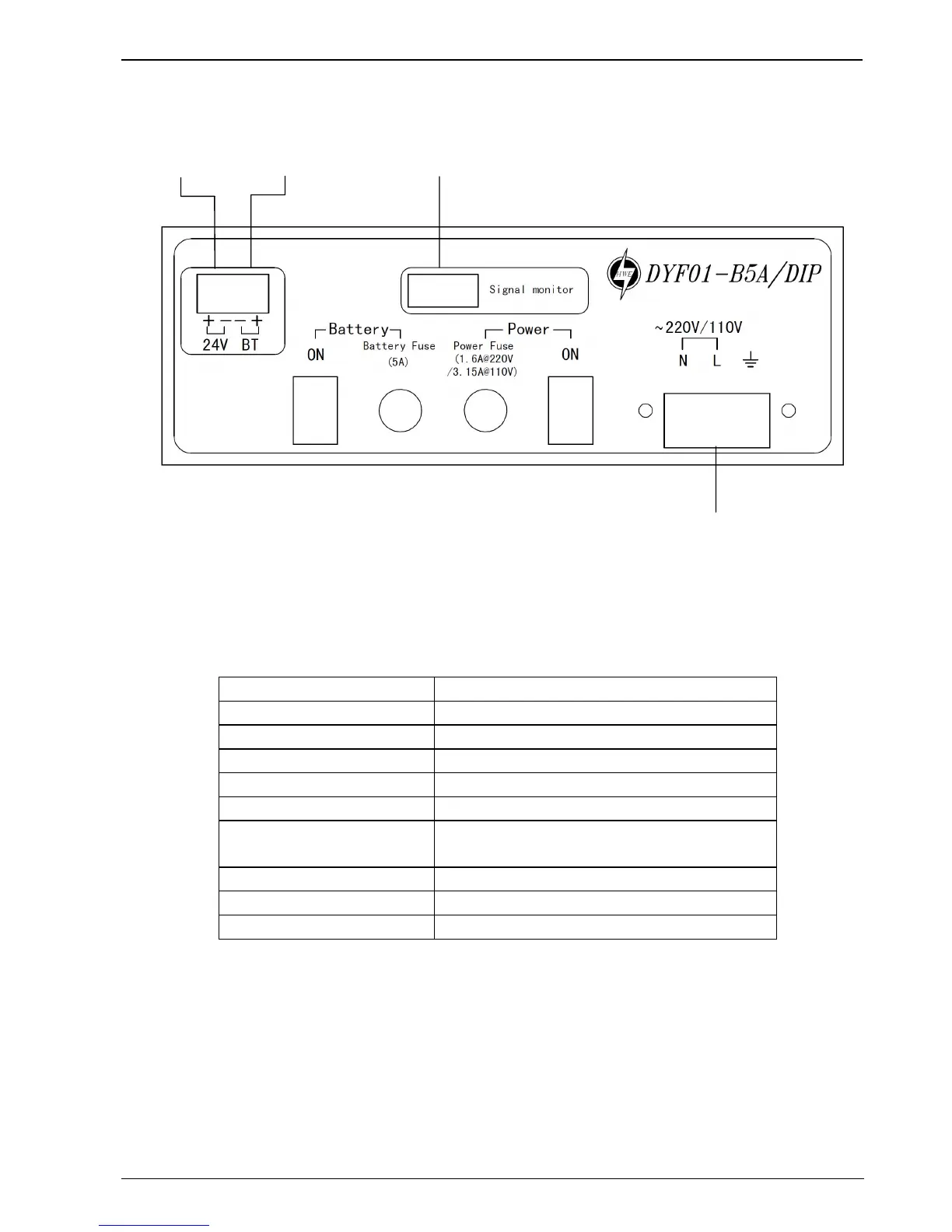

Fig. 2-10 Wire connection
Specification of power supply
Input voltage 110/220 VAC
Input frequency 60/50 Hz
Output voltage 24 VDC
Output current 5A
AC fuse capacity 110VAC: 3.15A 220VAC:1.6A
DC fuse capacity 5A
Operating temperature 0 ~ +40℃
when it is over 40℃, output power will reduce half
Storage temperature -20 ~ +60℃
Humidity ≤95% (40±2℃)
Size 220*136*70 mm
Connect external AC input
Connect to
battery
Connect to port
” PS” on main unit
Connect to port “Pwr
Status” on main unit
