CHAPTER 3 OPERATION
1. INTERFACE

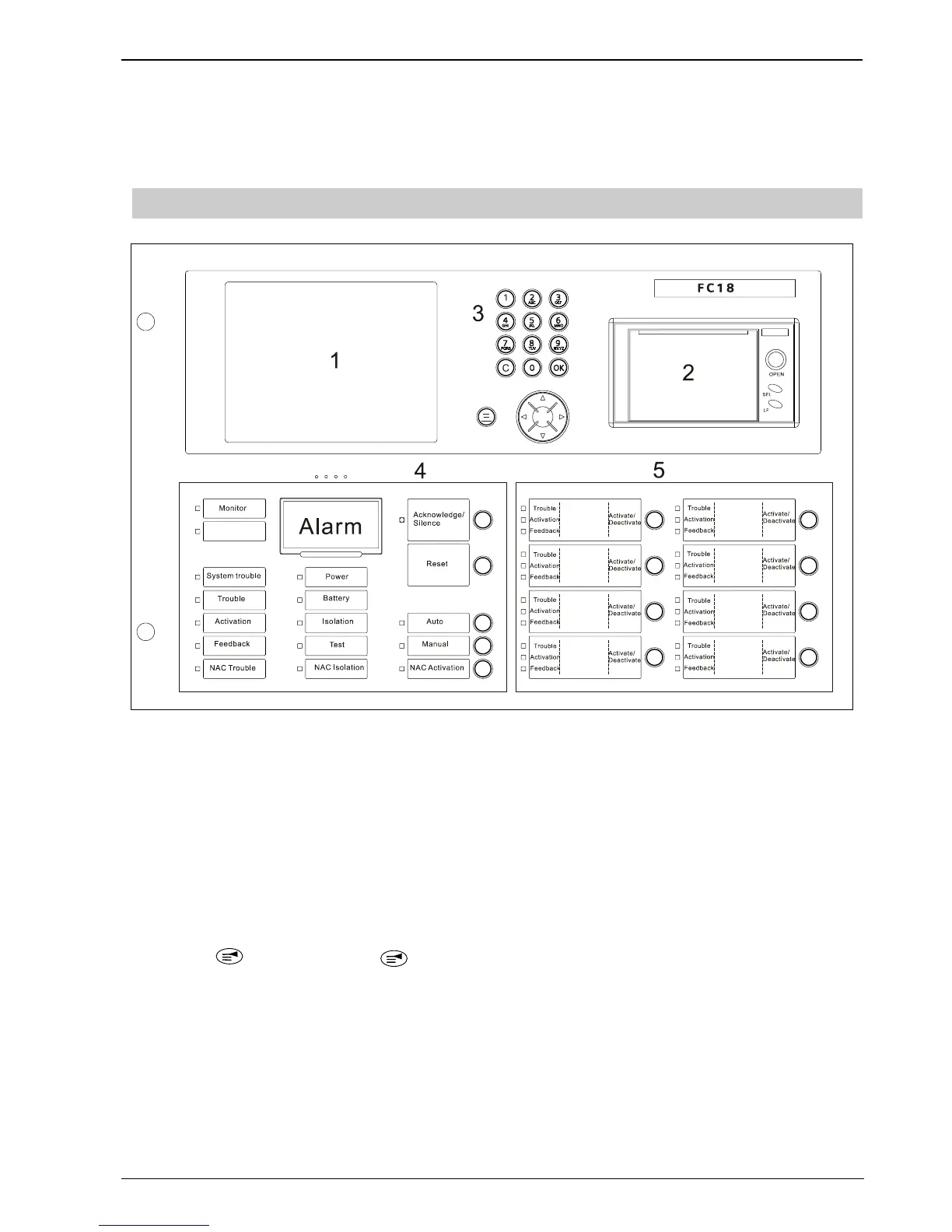

Fig. 3-1 Operation panel
① LCD
The LCD backlight automatically turns off within the preset time in the idle mode; the preset time can be adjusted in
the parameter setting. Press any key will turn on the LCD again.
② Printer
There are two indicators and two buttons on the printer panel. Indicator: the green LED indicates power-up state while
the red LED for operation state (on: online; off: offline). Button: SEL (set online/offline), LF (line feed).
③ Key board
¹ Press number keys to enter numbers and characters.
¹ C: Press “C” to cancel or return to the previous menu; Press “OK” to confirm or enter the menu.
¹ : Menu button, press “ ” to show menu.
¹ Press “↓”/“↑” to move the cursor.
¹ Press “←” to delete the previous input.
¹ Press “→” as shortcut key to show the function menu. The operation items of the selected equipment are listed
in the menu according to operator’s user level.
④ Indicators and operation keys
¹ Alarm: Off when there is no fire; On when fire detected; Off again when all alarms are cleared and "reset" is
pressed.
¹ Supervision: On when supervision signal is detected; Off when the event disappears and “reset” is pressed.
