Operating Manual of FC18 Controller
Page: 19/63
3.1 Login
1. Press “Menu” to browse the main menu.
Display main menu.
2. Press”→” to select “Login”, and then press “OK”.
Password entry window pops out.
3. Enter the password for Level2/3 and press “OK”.
Login as a Level 2/3 user if the password entered is correct.
(Press “←” to delete previous input.)
Note:
Default password for Level 2 is 1234, for Level 3 is 4321. Default password
can be changed by FXS1800 software tool.
System logout automatically after 3 times of invalid entries.

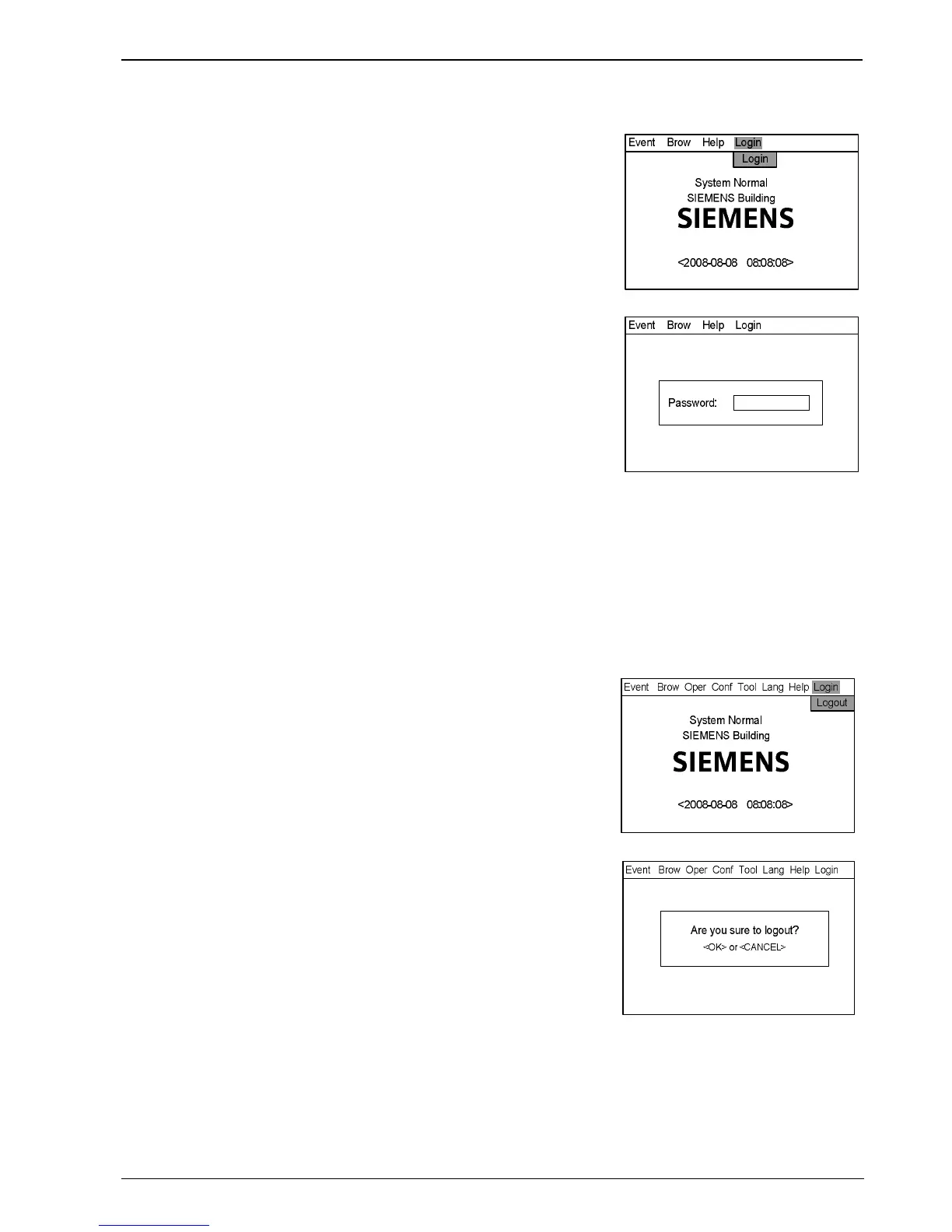

Fig. 3-3
Fig. 3-4
3.2 Logout
There are two ways to logout:
l System logout automatically: System automatically logs out to Level 1 if no operations during a preset login time. (System
login time can be set by modifying station parameters.)
l Use the menu to logout:
1. Press “Menu” to browse the main menu.
Display event menu.
2. Press”→” to select “Login”, and then press “OK”.
Logout window pops out.
3. Press “OK” to return back to Level 1 interface; press “C” to cancel the logout
operation.
Note:
Users can directly login Level 2/3 interface under Level 1 interface; Users
need to return back to Level 1 interface before logging in Level 2 from Level
3 interface, also same from Level 2 to Level 3.
Fig. 3-5
Fig. 3-6
