Operating Manual of FC18 Controller
Page: 42/63

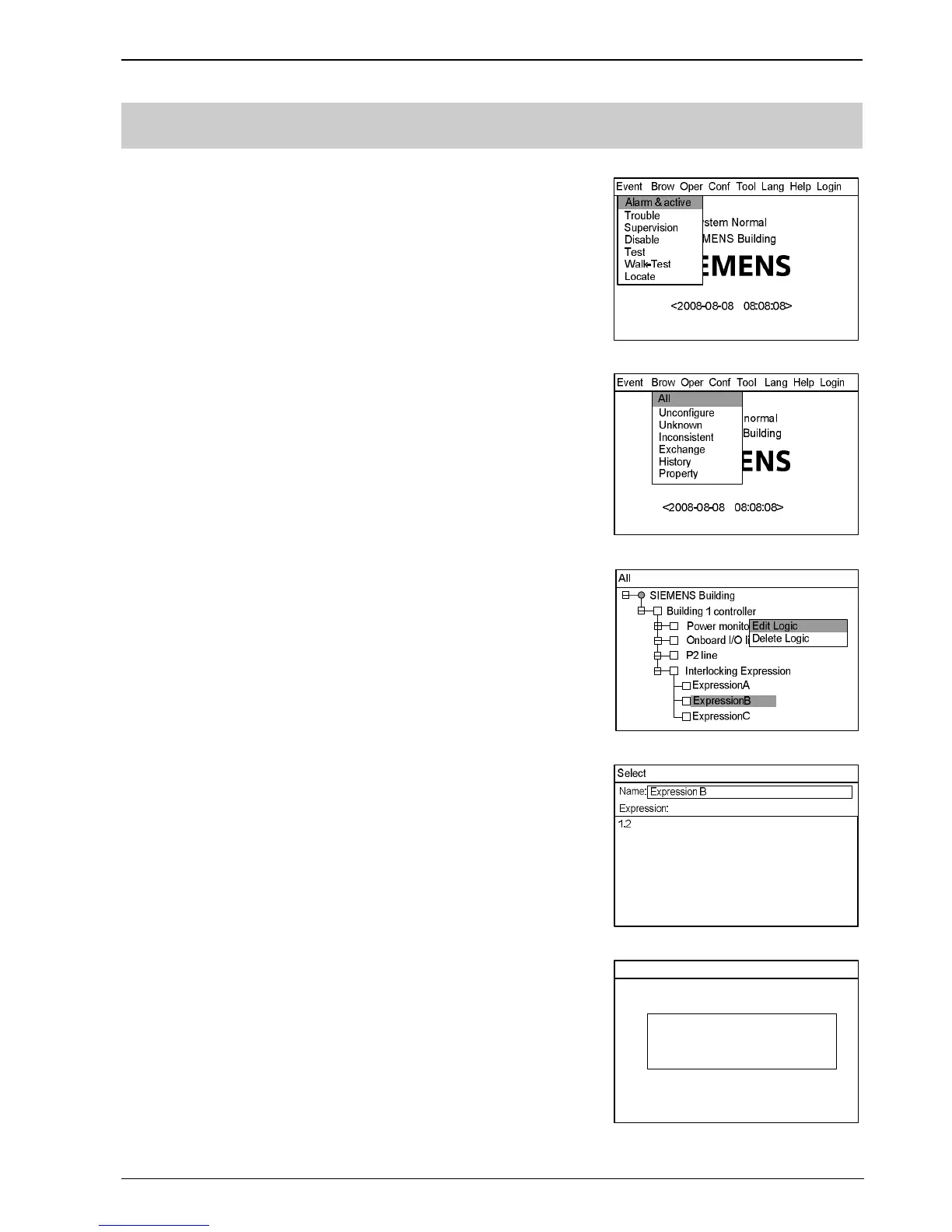

25. HOW TO EDIT/DELETE LOGIC
Function: To modify or delete logic.
Steps:
1. Press “Menu” to browse the main menu (Fig. 25-1)
Main menu displayed.
2. Press “→” to select “Browse” submenu (Fig. 25-2). Select "All" and then
press “OK”. Now the tree diagram will be displayed in the window
(Fig.25-3). Press “↓”/” ↑” to find out the expression to be modified.
3. Press “→” to pop out the shortcut menu (Fig.25-3). Use “↓” to select
“Edit Logic” and press “OK” to enter the logic interface (Fig.25-4). Then
users can edit the selected expression.
4. After editing, press “menu” (Figure 25-5), choose “Confirm”, and then
press “OK” to begin system compiling. If successful, it will display “Logic
relations compiled successfully”. If not successful, display will indicate
error information. If you don’t want to save this change, select “Cancel”,
and press “OK” to quit.
5. A dialog box will pop out to remind you to save the change (Fig. 22-3)
after you quit the edit window. Press "OK" to save the change
permanently or press "C" to save the change temporarily. (The change
will be lost if the system is restarted.)
6. If you select "Delete Logic" in step 3, the system will pop out a remind
window (Fig.25-5). Press "OK" to delete the interlock or press "C" to give
up.
This operation is temporary. Repeat step 5 to save the change
permanently.
Note: The saved changes take effect immediately.
These operations can only be applied to the selected controller.
"0" can be neglected in expressions because the system will add
it automatically.
Fig.25-1
Fig.25-2
Fig.25-3
Fig.25-4
SIEMENS
<2008-08-08 08:08:08>
Are you sure to delete logic?
<OK> or <CANCEL>
Event Brow Oper Conf Tool Lang Help Login
Fig.25-5
