14/49 A6V10336897_d_en_
5.4 HOW TO ADD A DEVICE

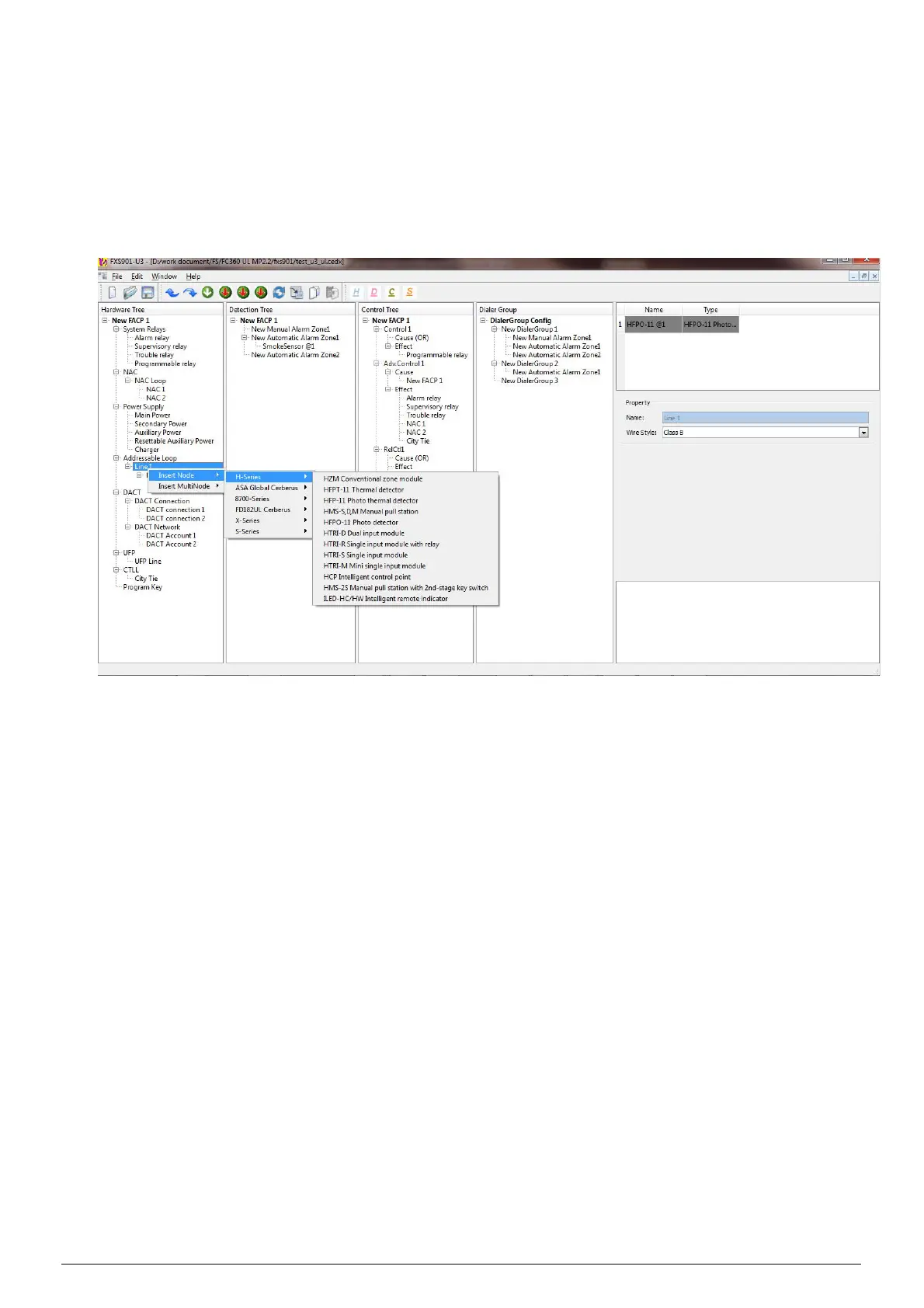

1. Under the Hardware Tree > Addressable Loop, right click “Line 1”, and then click “Insert Node”. All
selectable device series are listed.
2. Click the wanted series, and then all selectable devices are listed. Click on the wanted device, select the
zone type and then click “OK”. The device is then added and displayed under “Line 1” and on the children
view.
3. Select the device and edit its parameters in the property view.
4. Save the configuration.
