5.10 HOW TO ADD A LED ANNUNCIATOR

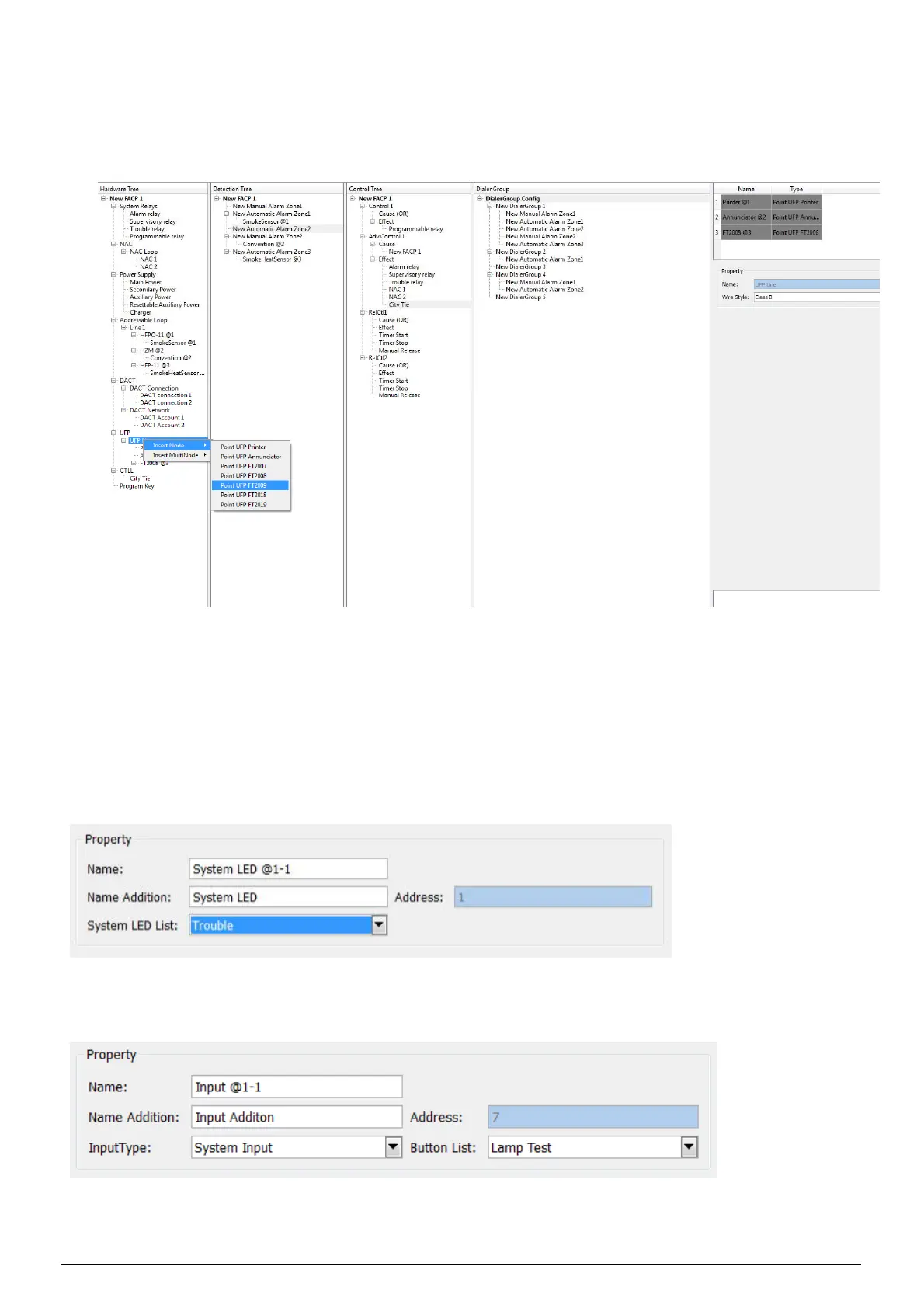

1. Right click “UFP Line” under UFP, and then click “Insert Node”. Select the wanted LED annunciator and
click on it. Then the LED annunciator is added and displayed under the UFP line and on the Children view.
2. Configure the annunciator.
3. Save the configuration.
Take FT2007 as an example for configuring.
FT2007 has the following elements which need to be configured:
· 6 system LEDs
· 16 inputs
· 32 area LEDs
System LEDs
Select a system LED under hardware tree and edit in property view.
System LED list: Define event category (Reset, Acknowledge, Silence, Audibles on, Trouble, Ground fault).
Inputs
Select an input under hardware tree and edit in property view.
Input Type: system input or generic input.
Button List: Define the function of the button. (Reset, Acknowledge, Silence/Unsilence, Lamp test)
