5.18 HOW TO DOWNLOAD/UPLOAD CONFIGURE FILE
Download configure file
1. When the configuration is finished on the tool, connect the communication cable between PC and FACP.

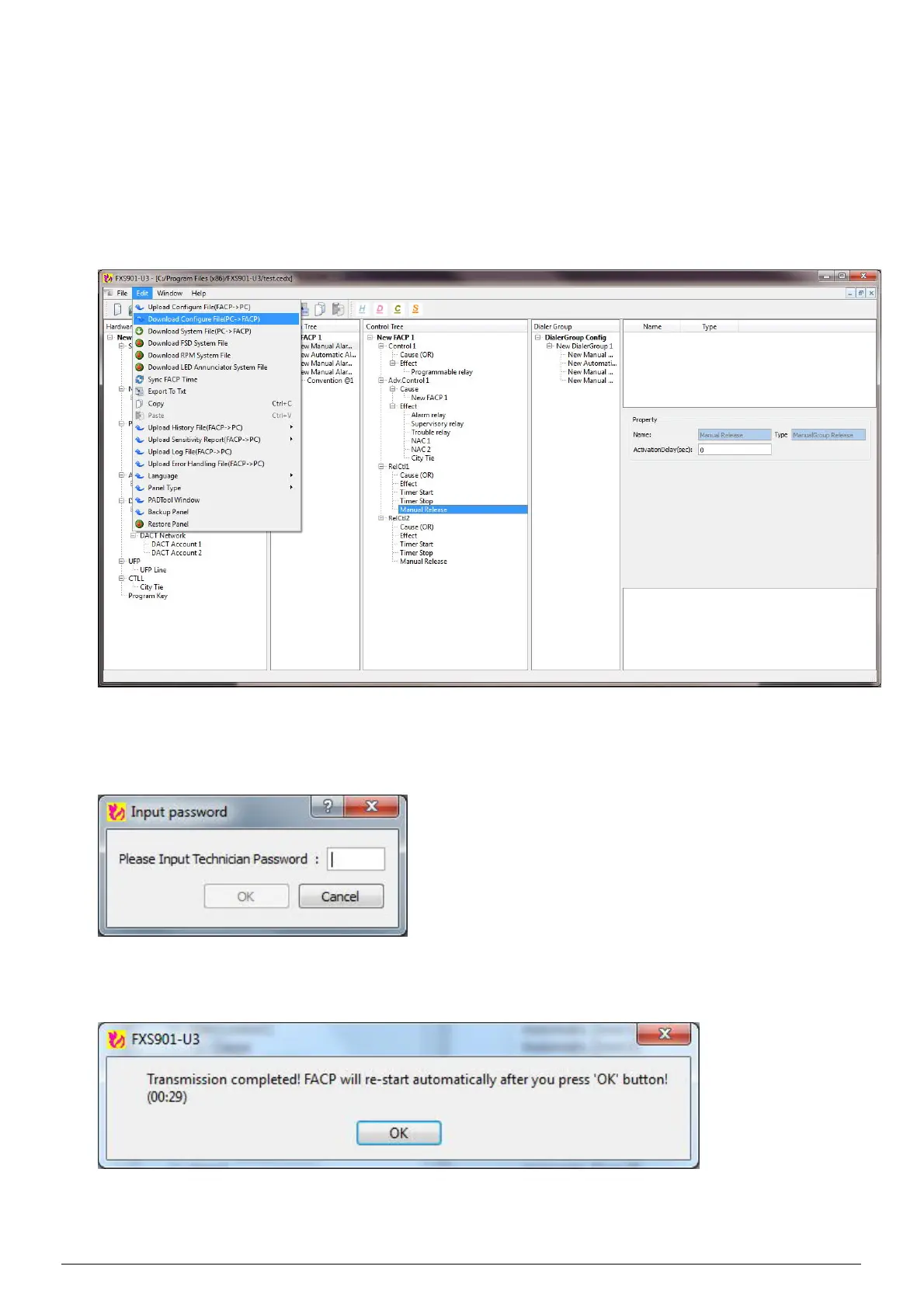

2. On the tool, click “Edit” > “Download Configure File (PC FACP)”.
NOTE
First time users may get an “Install New Hardware Wizard” window. If so, follow steps in section 2.3 to
install the USB drivers.
3. Enter password and click “OK”.
4. Select the configuration file and click “Open”. Downloading starts.
5. When downloading is finished, the following information is displayed. Click “OK” to restart the FACP. If
you do not click “OK”, FACP will count down 30 seconds and then restart automatically.
