5.9 HOW TO ADD A FSD (ANNUNCIATOR)

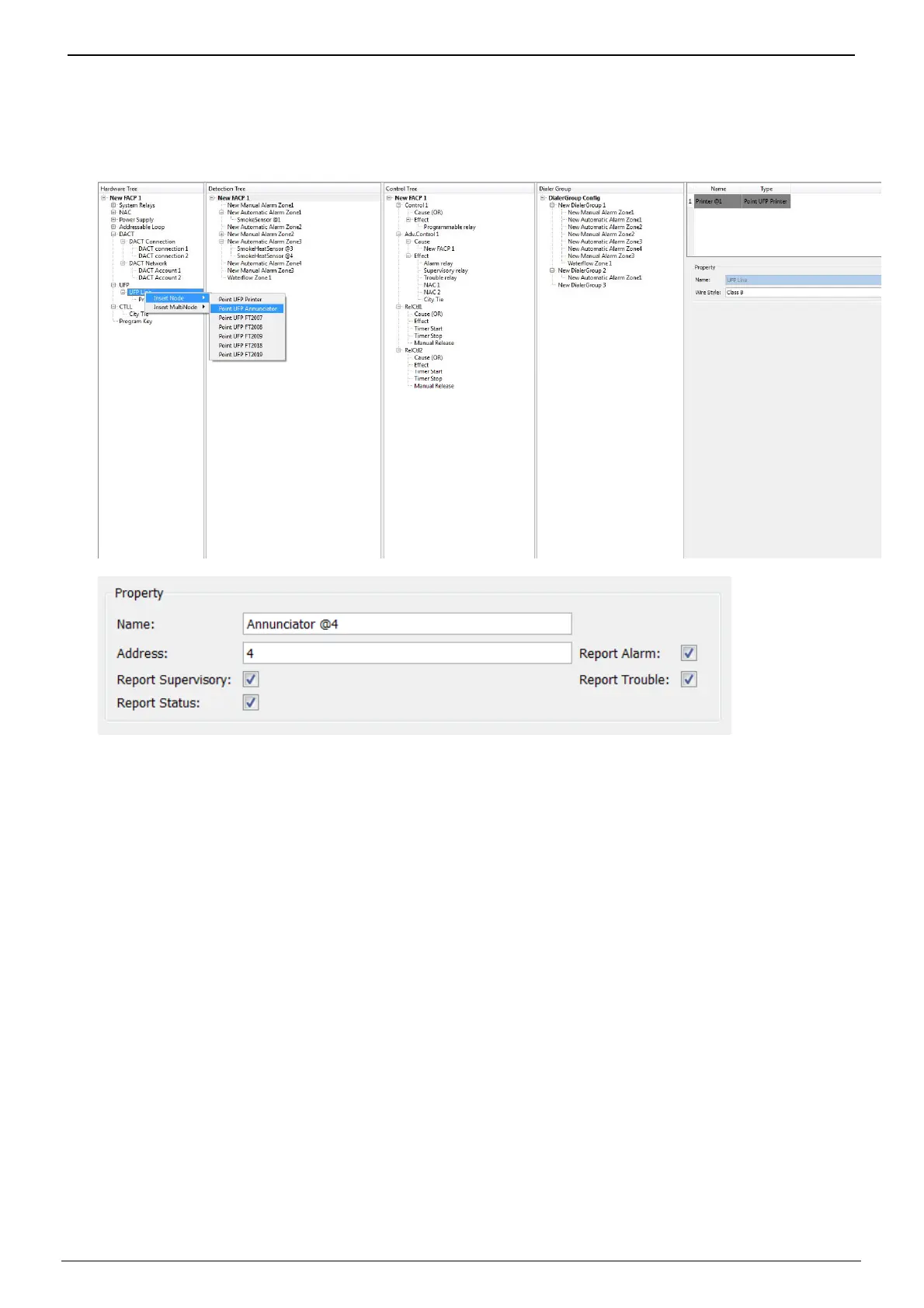

1. Right click “UFP Line” under UFP, and then click “Insert Node” > “Point UFP Annunciator”. The
annunciator is added and displayed under the UFP line and on the Children view.
2. Select the FSD and edit its parameters in the property view.
The following parameters can be set:
Report Alarm: Define whether it reports alarm event
Report Trouble: Define whether it reports trouble event
Report Supervisory: Define whether it reports supervisory event
Report Status: Define whether it reports status
The address must be same as the setting of Dip-Switch on FSD PCB
3. Save the configuration.
