Siemens G120P

Commissioning
3
Operator panels
21
Siemens AG
CM2G5111en
2014-05-16

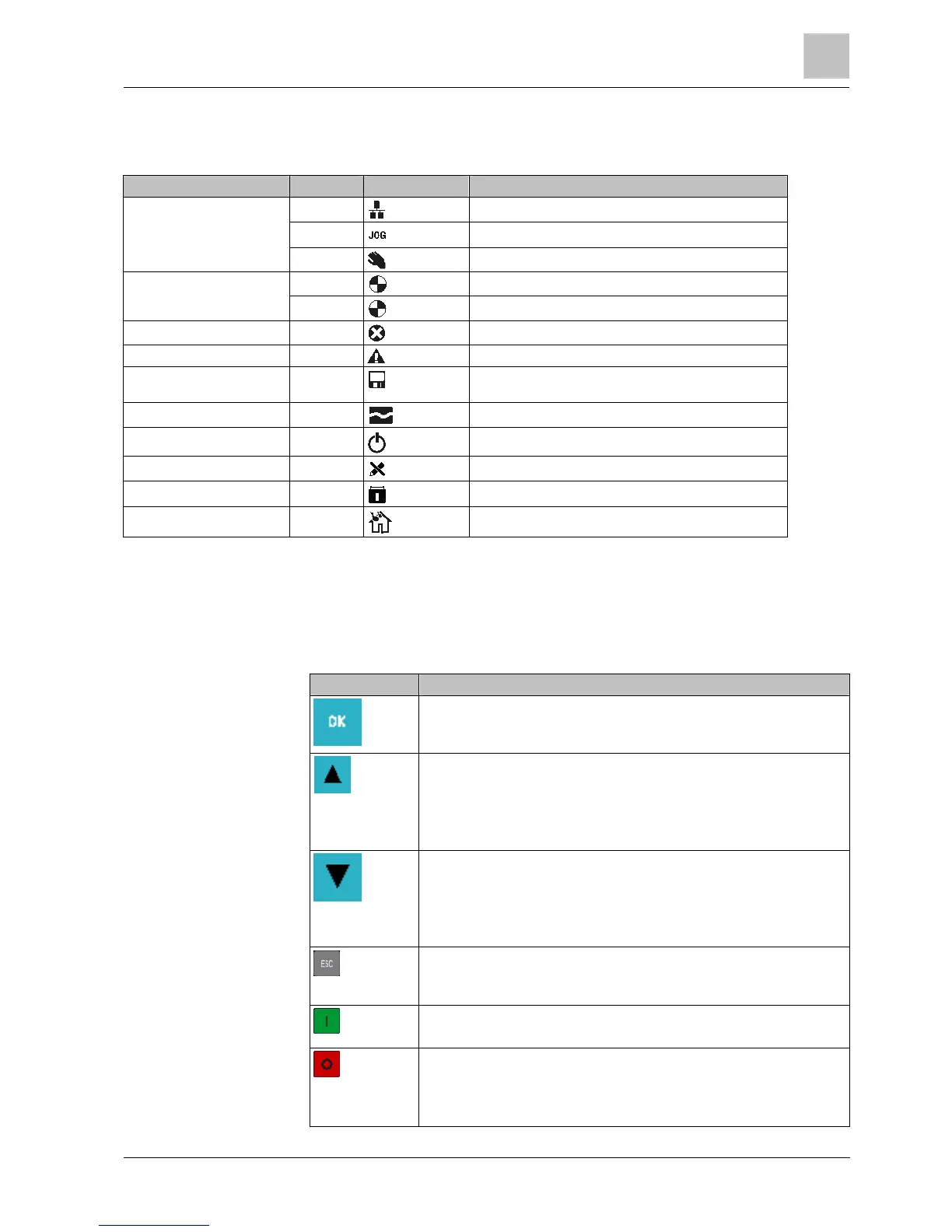

Screen symbols
Function Status Symbol Remark
Command source Auto
JOG Is displayed if the JOG function is activated
Manual
Drive state Ready
In operation Symbol rotates when the motor is running.
Fault display Fault
Alarm display Alarm
Save in the RAM Active
Data is saved in the RAM. If the power supply is
interrupted, all data is lost.
PID autotuning Active
Hibernation Active
Write protection Active Parameters cannot be changed.
Know-how protection Active
ESM Active Essential services mode (fire control)
BOP-2
Functions
Button Function
 Pressing the button: Confirming the selection
 Pressing and holding down the button (> 3 s): Toggling between changing
individual digits and changing the whole value
 Pressing the button
– Scrolling up through the menu
– Increasing a parameter value
 Pressing the UP and DOWN buttons simultaneously when MANUAL and
JOG mode are activated: Switching the reverse function on and off
 Pressing the button
– Scrolling down through the menu
– Reducing a parameter value
 Pressing the UP and DOWN buttons simultaneously when MANUAL and
JOG mode are activated: Switching the reverse function on and off
 Pressing briefly: Return to the previous display
 Pressing and holding down the button (> 3 s): The BOP-2 returns to the
status screen
 In AUTO mode: no function
 In MANUAL mode: pressing starts the drive
 In AUTO mode: no function
 In MANUAL mode:
– Pressing briefly: OFF1 - the motor comes to a standstill along the set
down ramp (parameter P1121)
3.1.1.2
3.1.2
3.1.2.1
