Commissioning
Operator panels
IOP
Functions

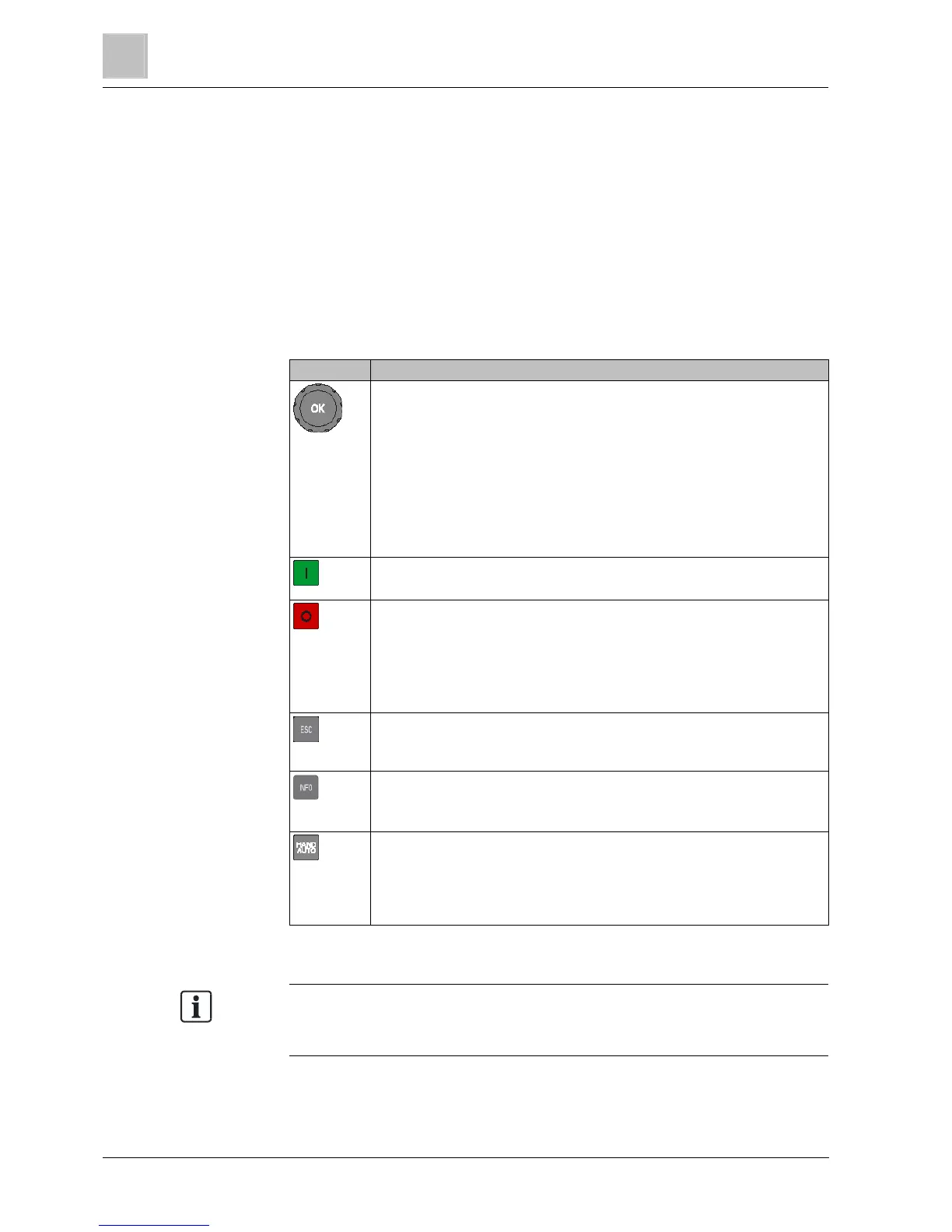

Button Function
Turning the navigation wheel:
 Changing selection
 Changing parameters
– Clockwise rotation increases the value.
– Counter-clockwise rotation reduces the value.
Pressing the button
 Confirming the selection
Pressing and holding down the button (> 3 s)
 Toggling between changing individual digits and changing the whole value
 In AUTO mode: no function
 In MANUAL mode: pressing starts the drive
 In AUTO mode: no function
 In MANUAL mode:
– Pressing briefly: OFF1 - the motor comes to a standstill along the set down
ramp (parameter P1121)
– Pressing and holding down the button (> 3 s) or pressing it briefly twice: The
motor coasts to a standstill
 Pressing briefly: Return to the previous display
 Pressing and holding down the button (> 3 s): The IOP returns to the status
screen
Pressing the button:
 Information output about the actual display
 You return to the previous display by pressing again
 Pressing the button: Toggling between external command sources and the IOP
as command source.
– MANUAL means: Manual control using the IOP buttons
– AUTO means: The drive responds to external control commands (e.g.
fieldbus or terminals)
When you toggle to MANUAL mode, the motor continues running at the last
setpoint speed selected.
When you toggle to AUTO mode, the motor stops.
