2. Confirm with OK.
 All the data is saved onto the drive until it is overwritten via a further RAM to
ROM command.
Preparing for commissioning
Prior to commissioning, you should have an answer to the following questions:
 Which communication protocol does the drive use?
 See section Communication [➙ 30].
 In which region is the motor being used?
 See [p0100] "Motor standard IEC/NEMA" BOP-2 in Basic commissioning with
the wizard [➙ 24].
 What type of control is needed for the application?
 See [p1300] "Control type" Additional important parameters [➙ 29].
 Which speed limits does the motor use?
 See [p1080] and [p1082] "Minimum and maximum speed" Setting the ramp-
function generator [➙ 27].
 What motor ramp-up time and ramp-down time are needed for the application?
 See [p1120] and [p1121] "Ramp-up and ramp-down time" Setting the ramp-
function generator [➙ 27].
Basic factory settings
Setpoint 0 - 10 V
Control
System
9
5
6
7
3
4
AI0+
AI0-
DI0
DI1
DI2
P24V
25
24
23
22
21
20
19
18
Fault
DO0
DO1
DO2
ON / OFF
Reverse
Acknowledge
Alarm
Operation
28
69
GND
DI COM
AO0+
AO0-
AO1+
AO1-
12
13
26
27
Speed
(0..20mA)
Output current
(0..20mA)

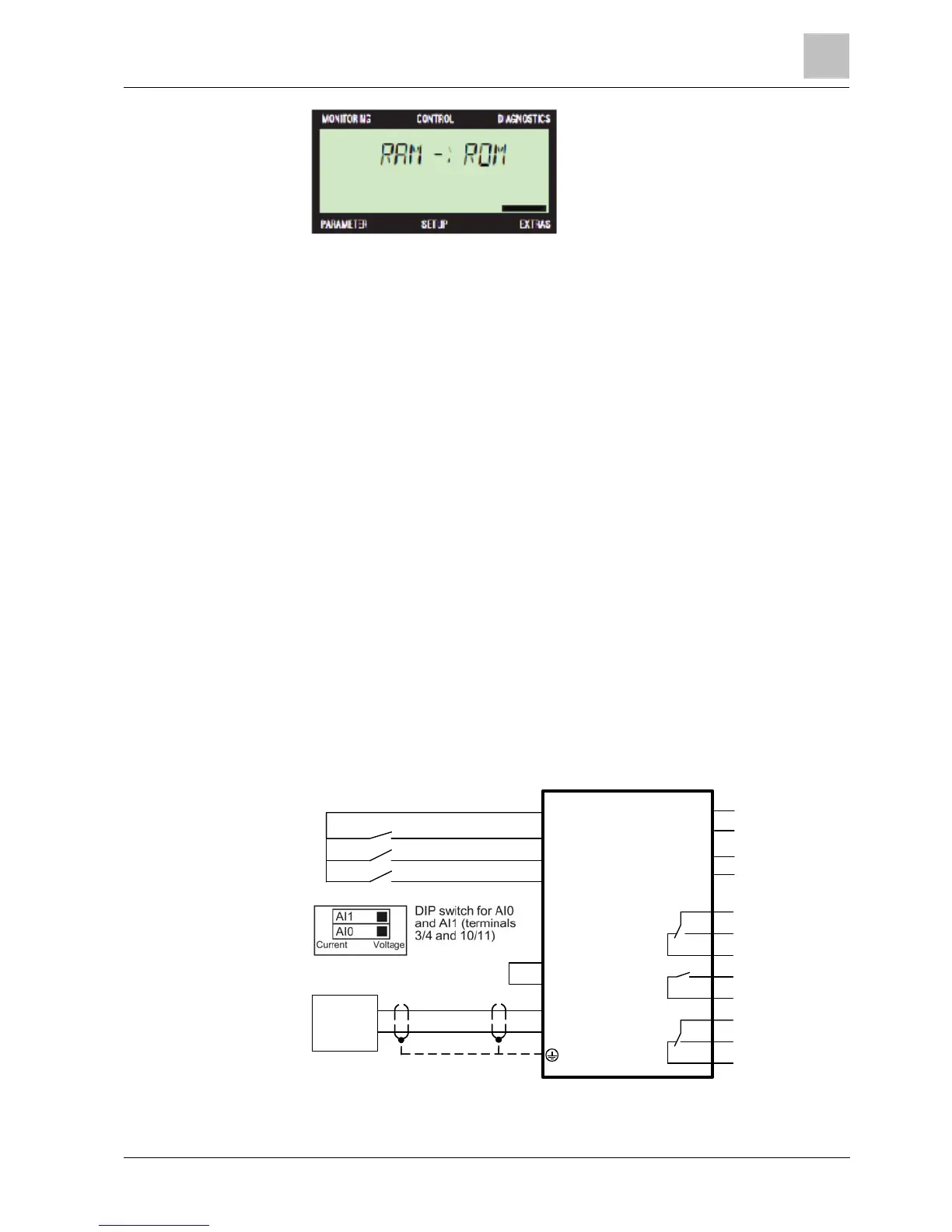

Figure 1: Terminal assignment in the factory settings (corresponds to MacPar15 = 12)
