Basic commissioning with the wizard
25
Siemens AG
CM2G5111en
2014-05-16
IOP
In the menu, select "Wizard" → "Basic commissioning". The wizard will guide you
through the commissioning process. You will find further descriptions of the
parameters in the next section, "BOP-2".
BOP-2
The commissioning wizard steps are set out in the table below.
CAUTION
Motor data identification in applications with hazardous loads
Risk of injury due to uncontrolled movements
● Secure dangerous plant and system parts before starting the motor data
identification, e.g. by fencing off the dangerous location or lowering
suspended loads.

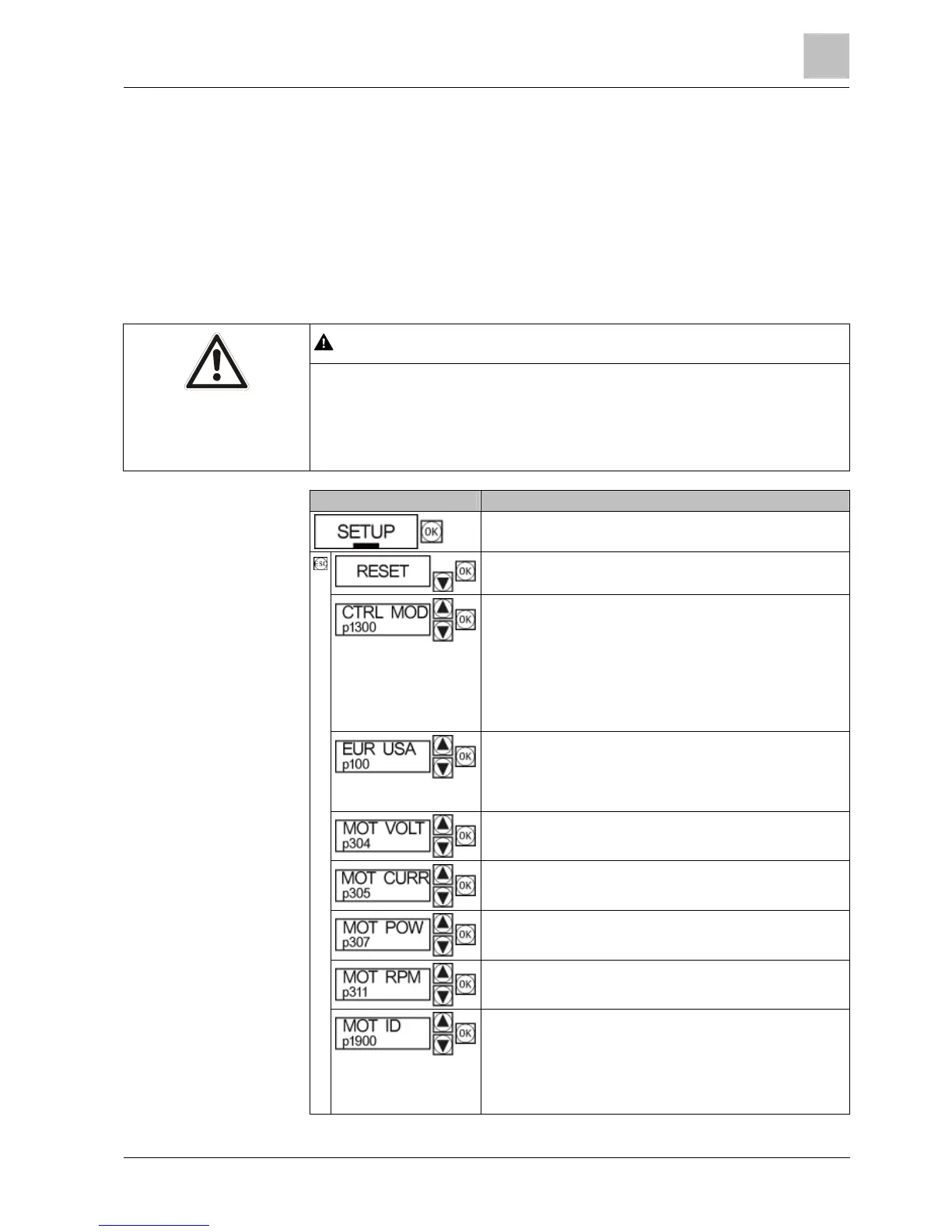

Menu Description
Set all parameters for the "SETUP" menu.
Before commissioning, restore all the parameters to the factory
settings.
Set the type of control of the motor.
 0: V/f control with linear characteristic
 1: Linear V/f characteristic with Flux Current Control (FCC)
 2: V/f control with parabolic characteristic (factory setting)
 4: Linear V/f characteristic with ECO
 7: Parabolic V/f characteristic with ECO
 20: Vector control without speed encoder
Motor standard: IEC or NEMA
 0: IEC motor (50 Hz, SI units)
 1: NEMA motor (60 Hz, US units)
 2: NEMA motor (60 Hz, SI units)
Motor voltage in [V]
Motor current in [A]
Motor power in [kW] or [hp]
Motor rated speed in [rpm]
Identification of the motor data:
 STILL ROT: Identify motor data with the motor rotating.
 STILL: Identify motor data at standstill. The motor does not
rotate.
We recommend the setting STILL ROT if the motor can rotate freely
and if the P1300 control type is set to vector control. In the case of
