Siemens G120P

2

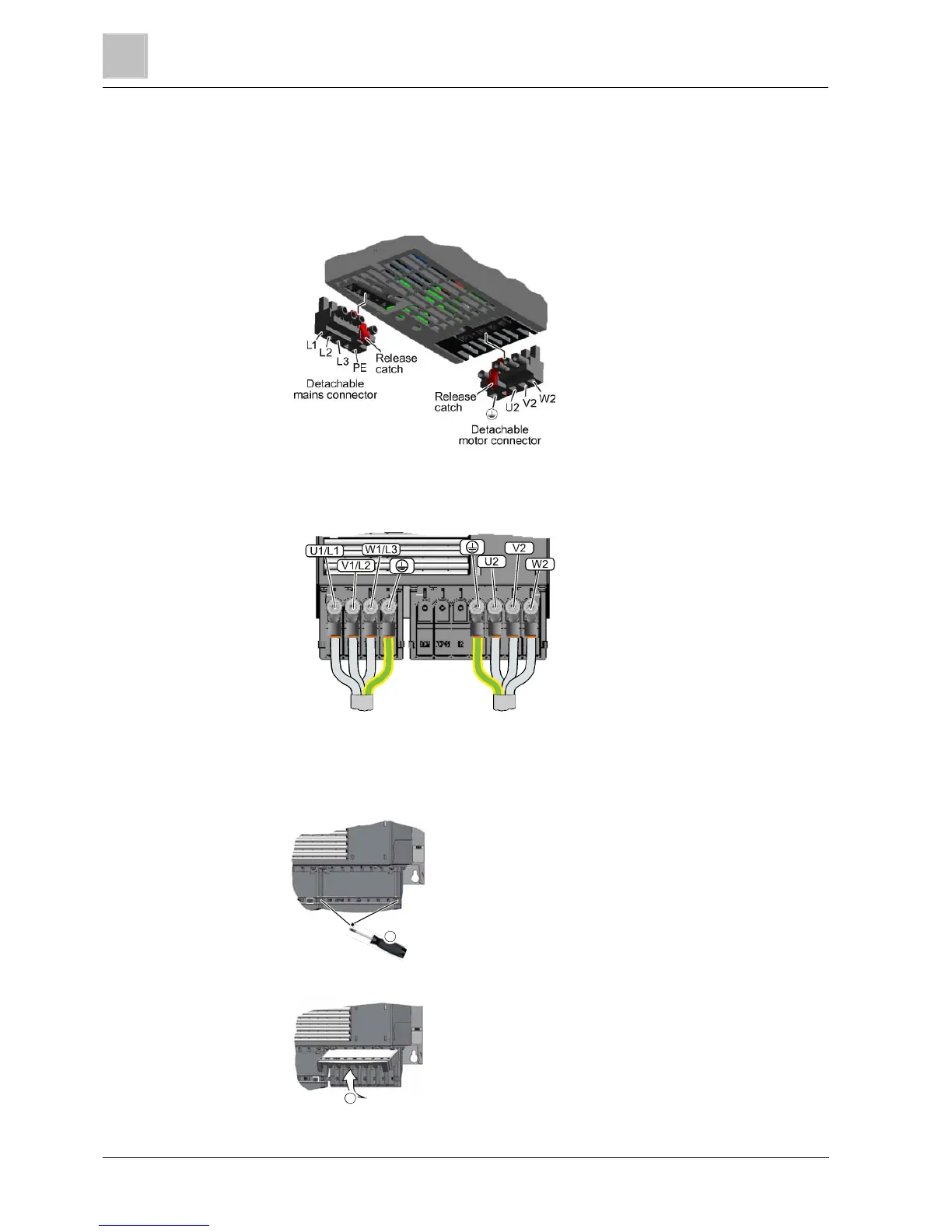

Mounting and installation
Line and motor connections
14
Siemens AG CM2G5111en
2014-05-16
IP20
FSA...FSC
Tightening torques:
 FSA: 0.4 Nm...0.5 Nm
 FSB: 0.55 Nm...0.6 Nm
 FSC: 1.2 Nm...1.5 Nm

The Power Modules are equipped with two-part
connectors. You can remove the detachable part
of the connector from the Power Module by
pressing the unlocking device. The connectors
cannot be mixed up.
FSD...FSF
Power
co
nn
ec
ti
o
n
Motor
co
nn
ec
ti
o
n
Tightening torques:
 FSA: 6 Nm
 FSB: 6 Nm
 FSC: 13 Nm
Accessing line and motor terminals
1. Loosen the safety catch on the sides of the terminal covers using a suitable
size of flat-head screwdriver.
1
2. Turn the terminal cover up and allow it to engage.
2
2.6.2
2.6.2.1
2.6.2.2
