- OR -

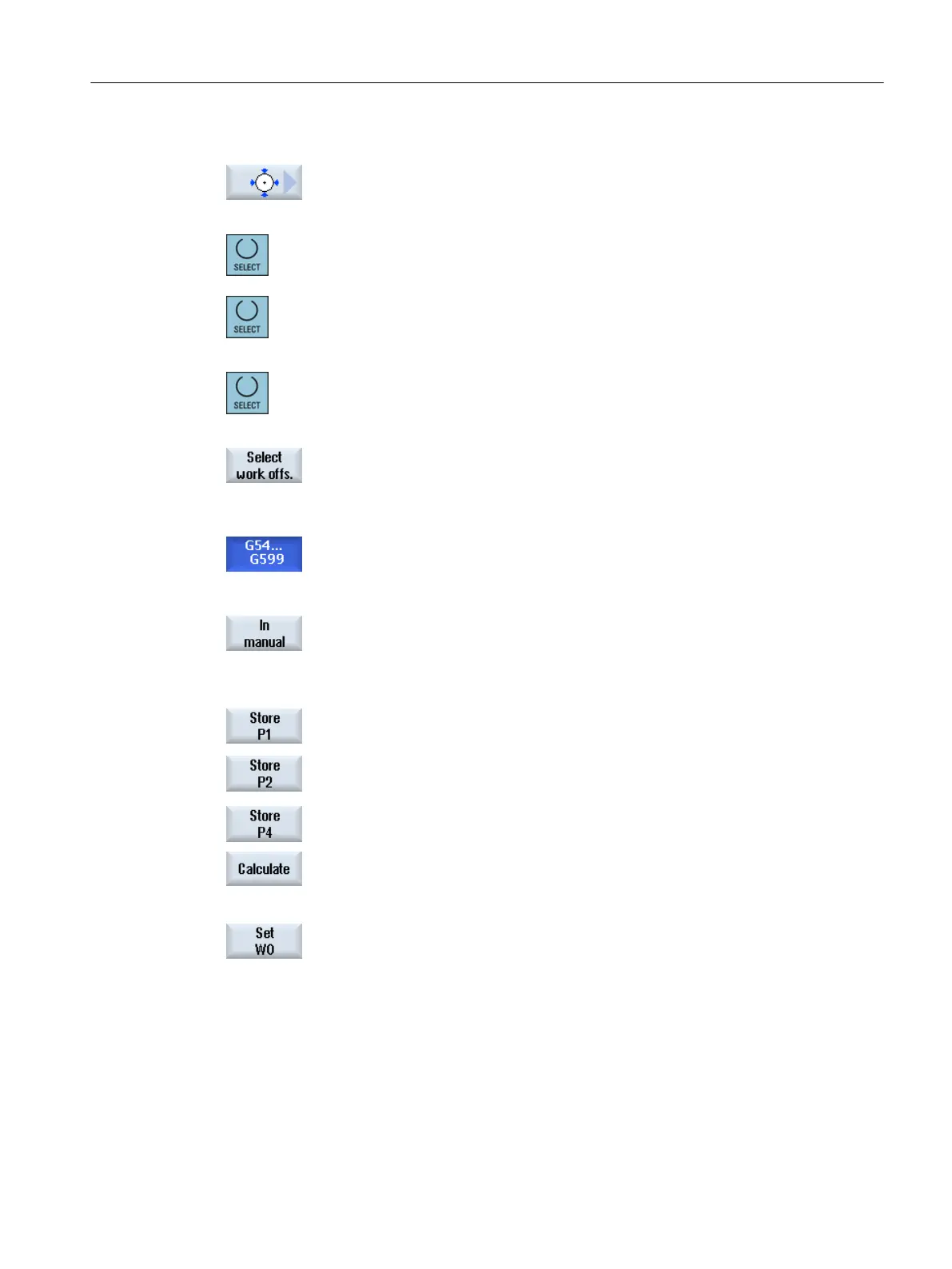

Press the "1 circular spigot" softkey.
- OR -
If these softkeys are not listed, press any vertical softkey (with the excep‐
tion of "Set edge") and in the drop-down list, select the desired measure‐
ment version.
4. Select "Measuring only" if you only want to display the measured values.
- OR -
Select the desired work offset in which you want to store the zero point
(e.g. basis reference).
- OR -
Press the "Select WO" softkey and select the work offset in which the zero
point is to be saved in the "Work offset – G54 … G599" window and press
the "In manual" softkey.
You return to the "1 Circular Spigot" window.
The selection of work offsets can differ.
Please refer to the machine manufacturer's specifications.
5. Specify the position setpoints (X0/Y0) of the spigot center point P0.
6. Traverse the tool to the first measuring point.
7. Press the "Save P1" softkey.
The point is measured and stored.
8. Repeat steps 6 and 7 to measure and save measuring points P2, P3 and
P4.
9. Press the "Calculate" softkey.
The diameter and center point of the spigot are calculated and displayed.
- OR -
Press the "Set WO" softkey.
The setpoint position of the center point is stored as a new zero point with
"Set WO". The tool radius is automatically included in the calculation.
Setting up the machine
4.6 Measuring the workpiece zero
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 131
