4.12.4
Deleting an MDA program
Precondition
The MDA editor contains a program that you created in the MDI window or loaded from the
program manager.
Procedure

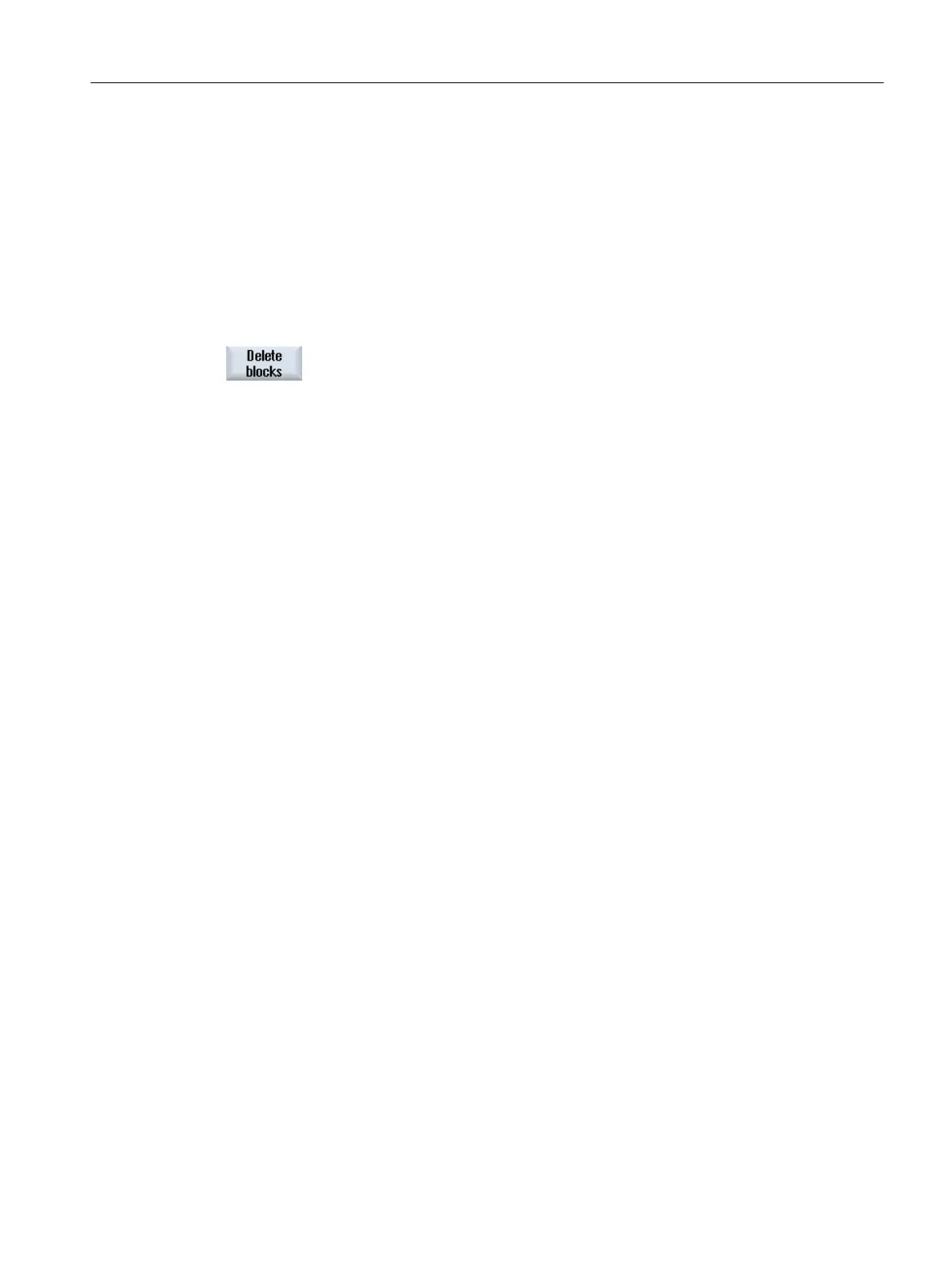

Press the "Delete blocks" softkey.
The program blocks displayed in the program window are deleted.
Setting up the machine
4.12 MDA
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
161
160
162
