13.11 Graphic display
In addition to the list of tools, you can also display the tools and magazine locations in a dynamic
graphic display.
The tools are displayed in the list in the order with their correct proportions.
The graphic display must be set up by the machine manufacturer.
Machine manufacturer
Please refer to the machine manufacturer's specifications.
References
For additional information, please refer to the following documentation:
SINUMERIK Operate Commissioning Manual
Graphic display of tools and magazine locations

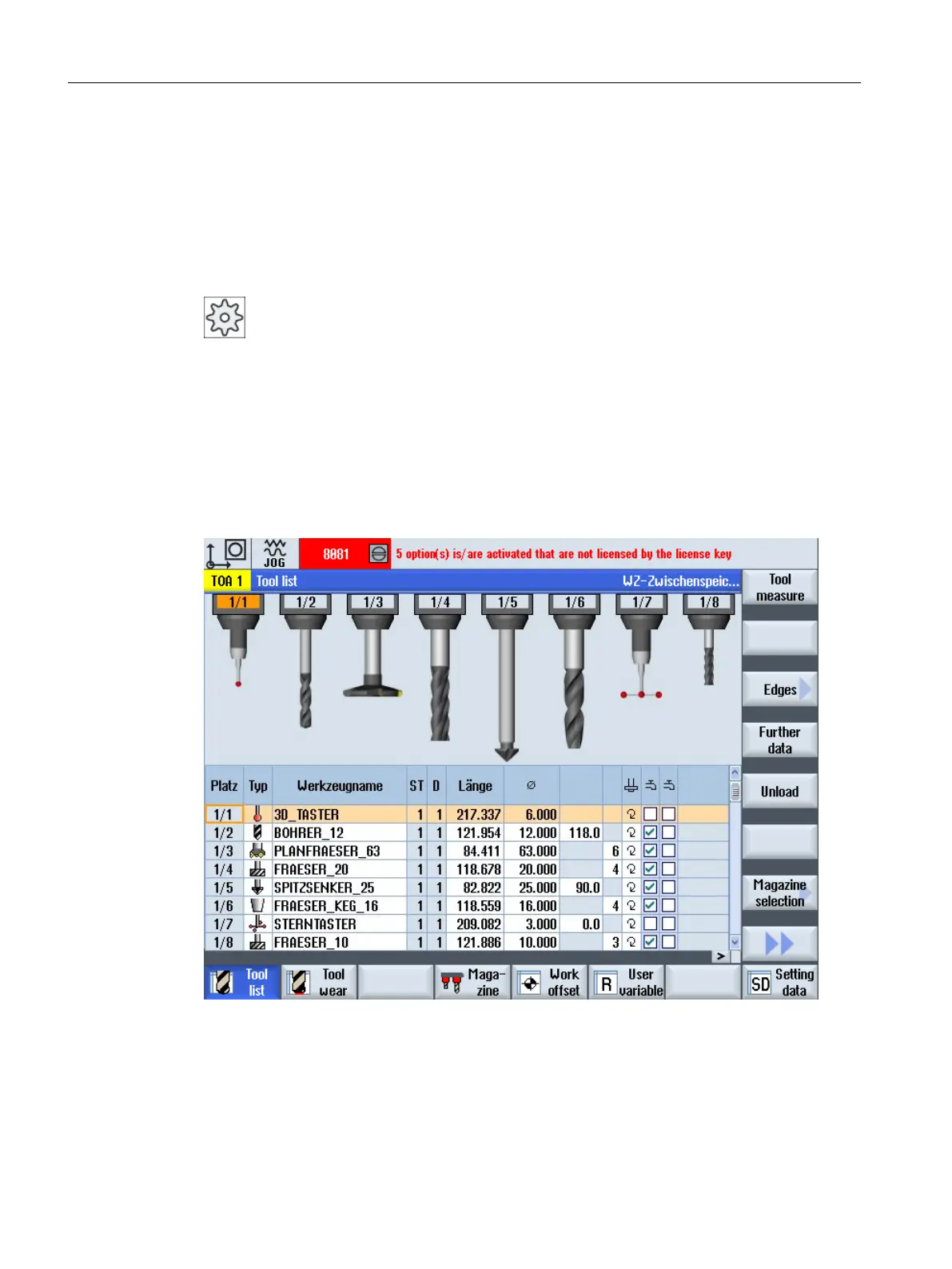

Figure 13-19 Graphic display of tools and magazine locations
The following applies to the graphic display:
● If a tool is too long for the display, the maximum possible length is shown.
● Oversized tools are trimmed on the left and right sides.
Tool management
13.11 Graphic display
Milling
728 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
