Procedure

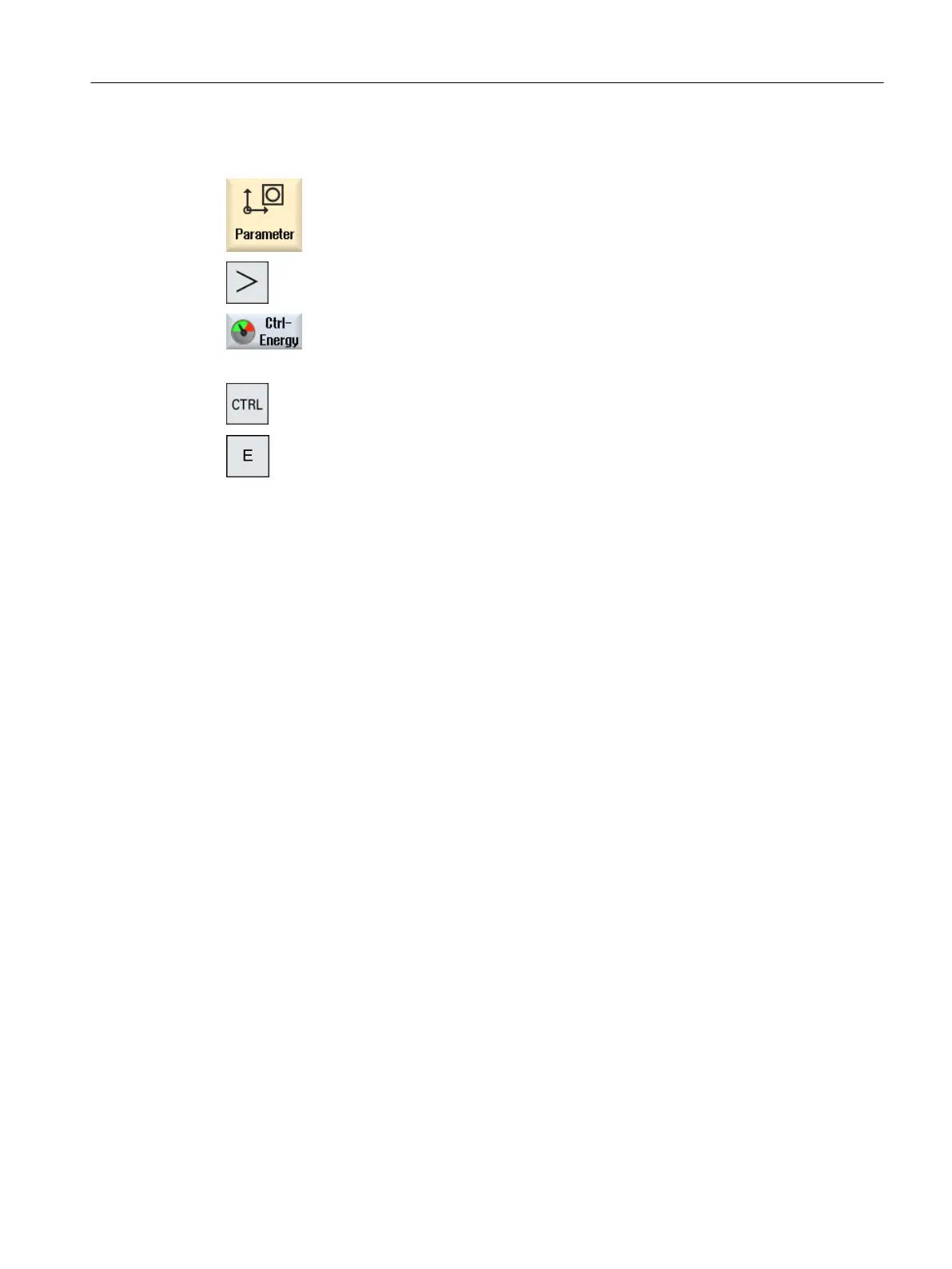

1. Select the "Parameter" operating area.
2. Press the menu forward key and then the "Ctrl-Energy" softkey.
- OR -
+ Press the <Ctrl> + <E> keys.
The "SINUMERIK Ctrl-Energy" window opens.
19.2.2 Displaying the energy analyses
You can obtain a detailed overview of the energy usage in the "Ctrl-E analyse" window.
You obtain the usage display for the following components:
● Sum of the axes
● Sum of the units, if auxiliary units are configured in the PLC
● Sentron PAC
● Sum of the machine
Detailed display of the energy usage
Further, you also have the option of listing the usage values for all drives and where relevant,
all auxiliary units.
References
Information on the configuration is provided in the following reference:
System Manual "Ctrl-Energy", SINUMERIK 840D sl / 828D
Ctrl-Energy
19.2 Ctrl-E analysis
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 873
