13.7
Tool data OEM
You have the option of configuring the list according to your requirements.
Refer to the following document for more information on configuring OEM tool data:
SINUMERIK Operate Commissioning Manual
Procedure
1.

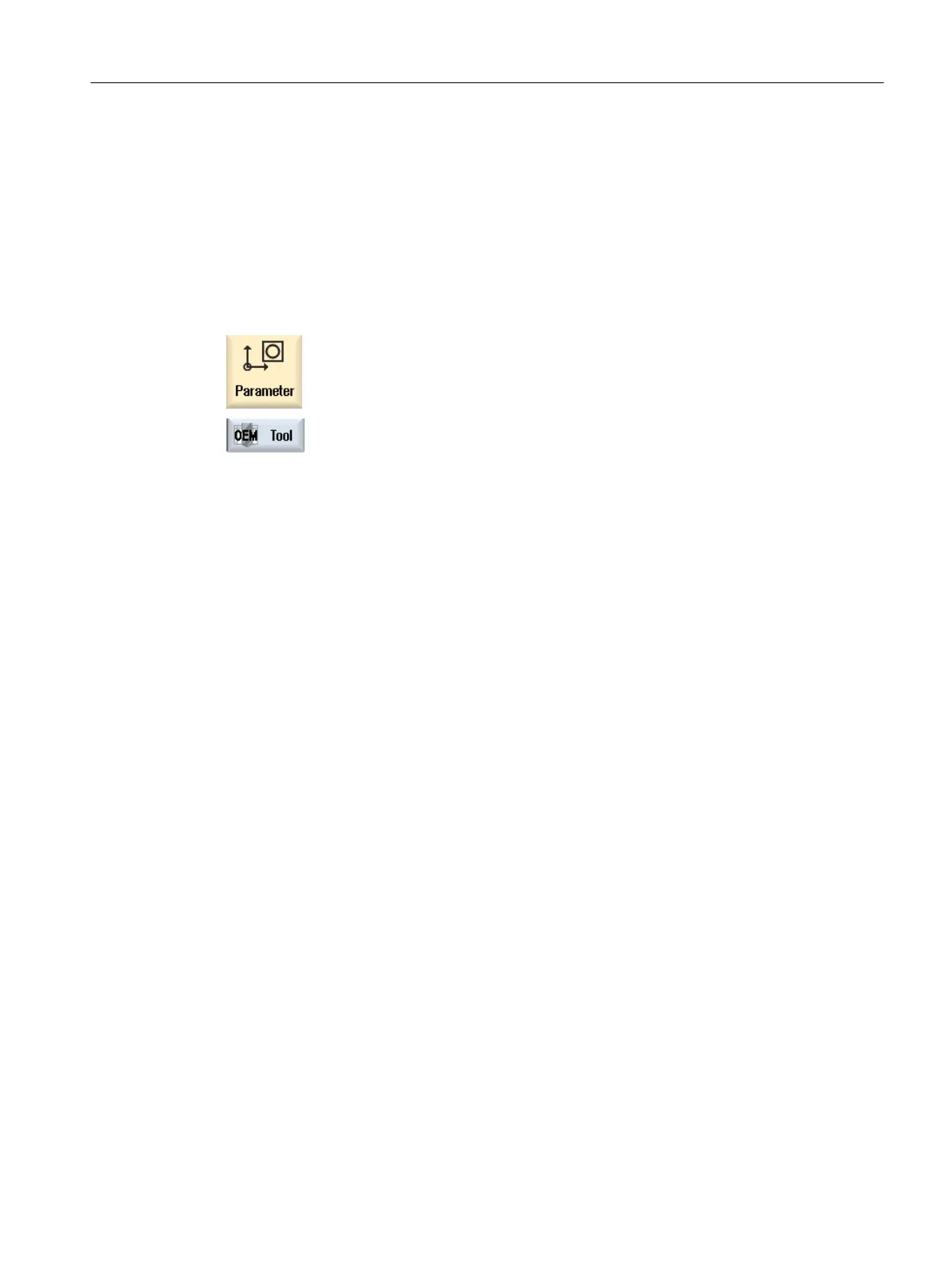

Select the "Parameter" operating area.
2.
Press the "OEM tool" softkey.
Tool management
13.7 Tool data OEM
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
717
716
718
