10.7.3
Rotation
You can rotate every axis through a specific angle. A positive angle corresponds to
counterclockwise rotation.

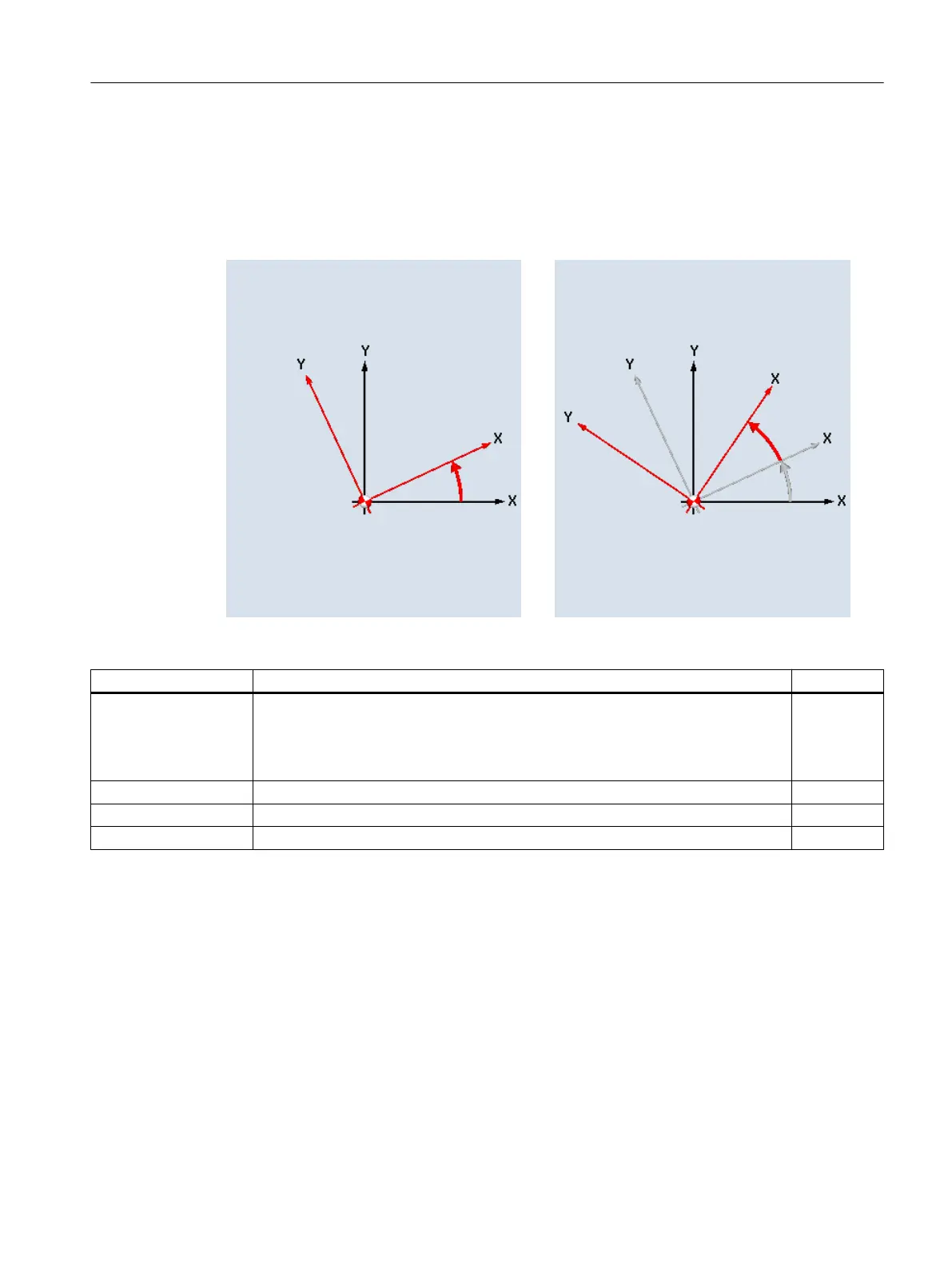

New rotation
Additive rotation
Parameter
Description
Unit
Rotation
●
New
New rotation
●
Additive
Additive rotation
X
Rotation around X
Degrees
Y
Rotation around Y
Degrees
Z
Rotation around Z
Degrees
Programming technological functions (cycles)
10.7 Additional cycles and functions in ShopMill
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
655
654
656
