Procedure
1.
Select the "Parameter" operating area.
2.
Press the "Tool list" softkey.
The "Tool list" window is opened.
13.16.2
Create multitool
The
multitool can
be
selected
in the
list
of
favorites as
well
as in
the
list
of special
tool
types.

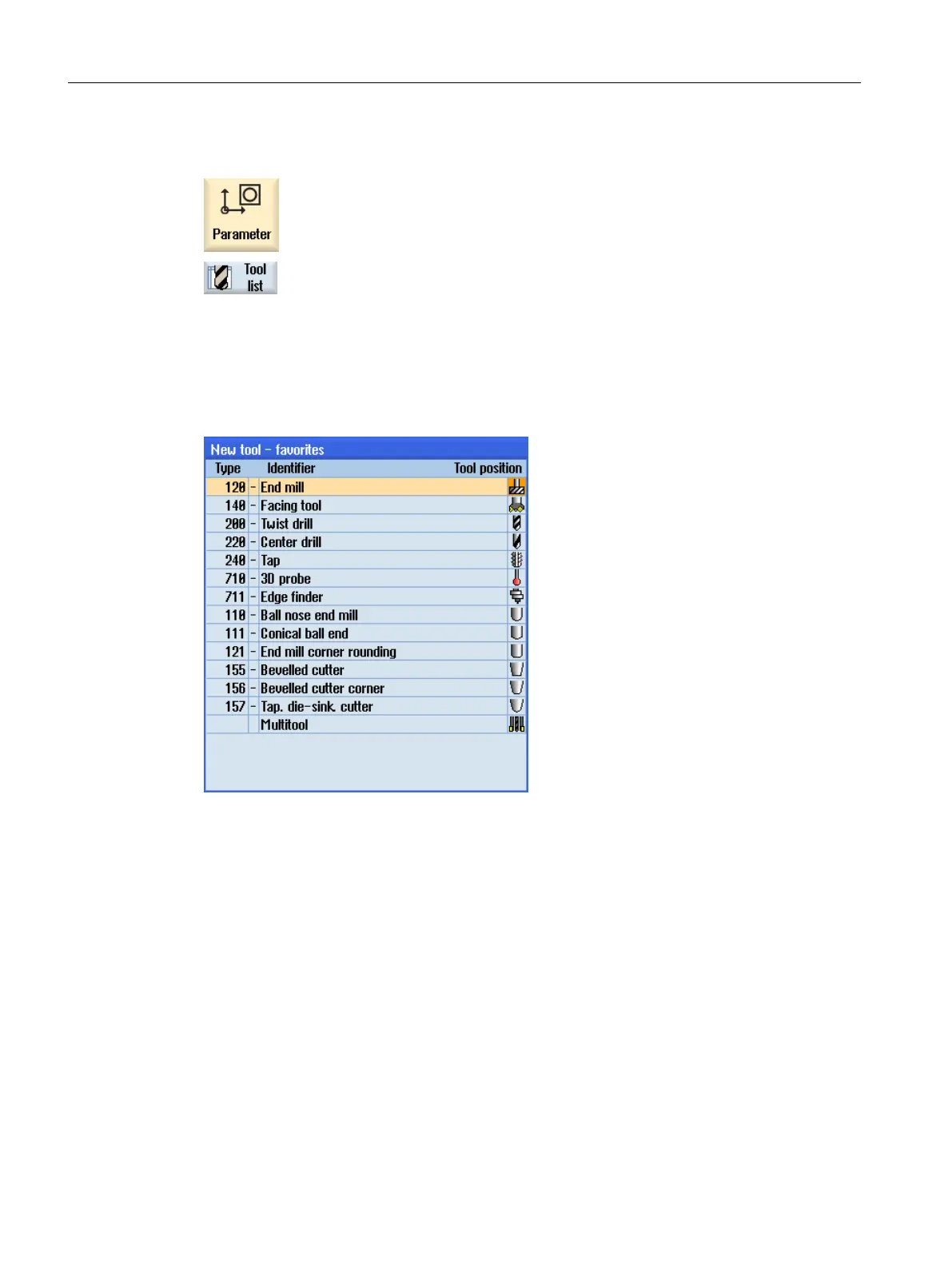

Figure 13-21
List of favorites with multitool
Tool management
13.16 Working with Multitool
Milling
738
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
737
739
