Retraction plane / safety clearance
The retraction plane and safety clearance are set using the machine data
$SCS_MAJOG_SAFETY_CLEARANCE or $SCS_MAJOG_RELEASE_PLANE.
Machine manufacturer
Please observe the information provided by the machine manufacturer.
Direction of spindle rotation
If the "ShopMill/ShopTurn" option is activated, the direction of spindle rotation is taken from
the tool parameters entered in the tool list.
If the "ShopMill/ShopTurn" option is not set, select the direction of spindle rotation in the input
screen.
Note
The "Repos" function cannot be used during simple stock removal.
Requirement
To carry out simple stock removal of a workpiece in manual mode, a measured tool must be
in the machining position.

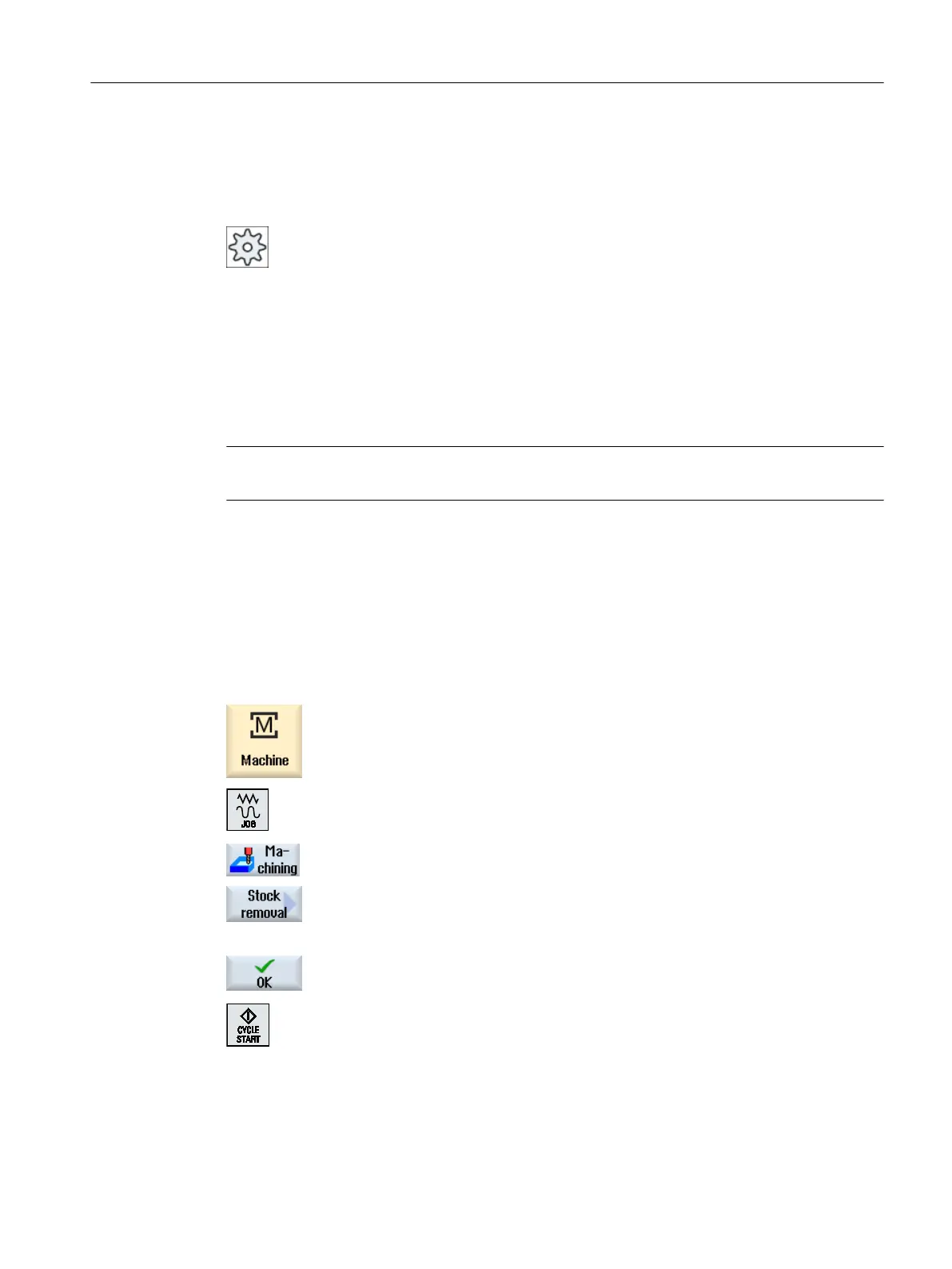

Procedure
1. Press the "Machine" operating area key
2. Press the <JOG> key.
3. Press the "Machining" and "Stock removal" softkeys.
4. Enter desired values for the parameters.
5. Press the "OK" softkey.
The parameter screen is closed.
6. Press the <CYCLE START> key.
The "Stock removal" cycle is started.
You can return to the parameter screen form at any time to check and
correct the inputs.
Execution in manual mode
5.8 Simple workpiece machining operations with milling/turning machines
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 185
