If the programs of several channels are displayed, the associated commands are displayed in
one line.
Display Meaning
Synchronization command
1. You can move between the program blocks in the work plan by
pressing the <Cursor up> and <Cursor down> keys.
2. Press the ">>" and "Graphic view" softkeys to display the graphic
view.
Note
Switching between the help screen and the graphic view
The key combination <CTRL> + <G> is also available for the switchover between the help
screen and the graphic view.
Graphic view
The graphic view shows the contour of the workpiece as a dynamic graphic with broken lines.
The program block selected in the work plan is highlighted in color in the graphic view.

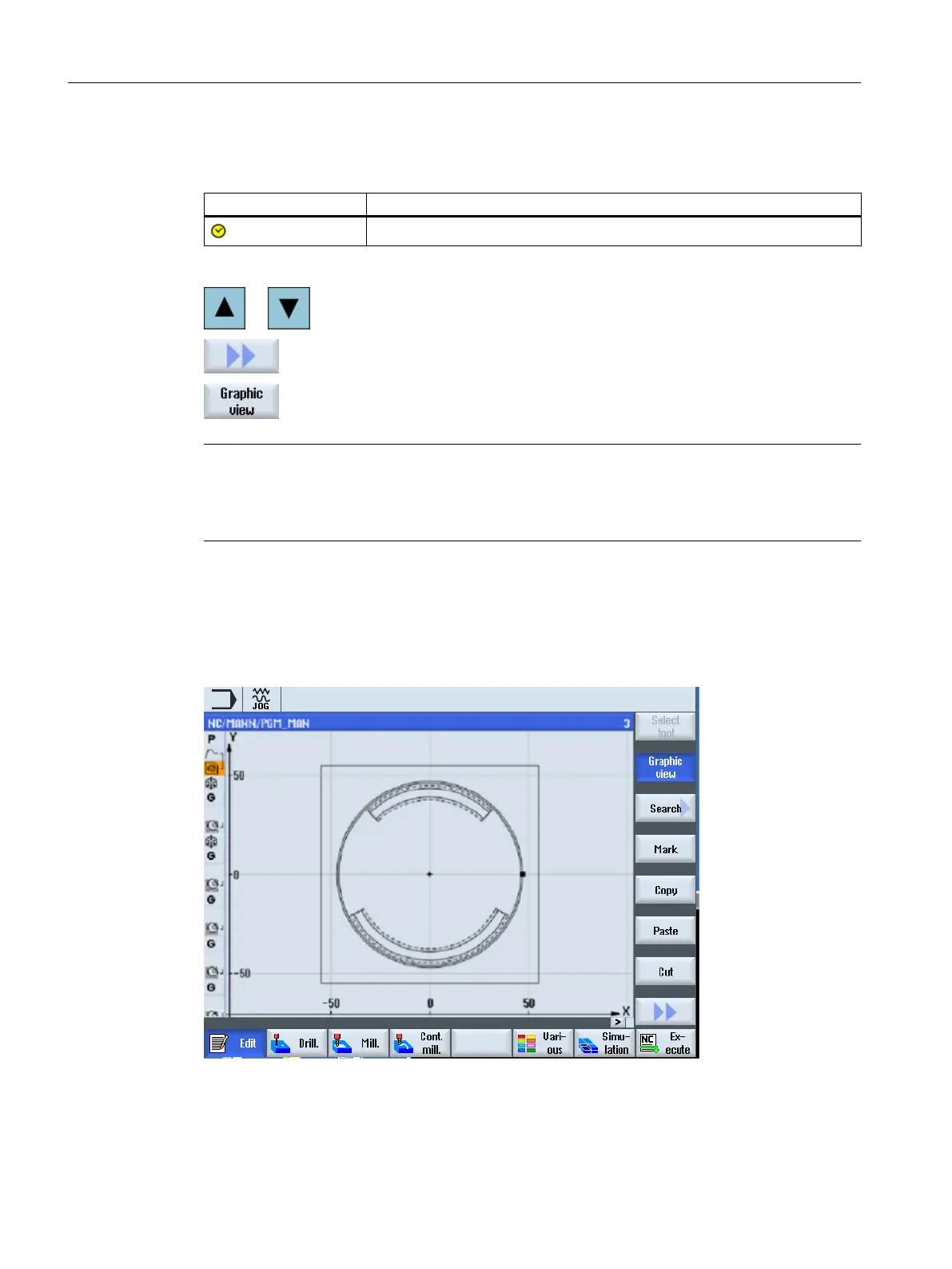

Figure 9-2 Graphic view of a ShopMill program
Creating a ShopMill program
9.1 Program views
Milling
320 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
