Machining Roughing (∇)
Machining position Single position
X0 90abs
Y0 60abs
Z0 0abs
W 40
L 70
R 10
α0 15degrees
Z1 4inc
DXY 40%
DZ 4
UXY 0
UZ 0
Insertion Helical
EP 1
ER 2
Solid machining Complete machining

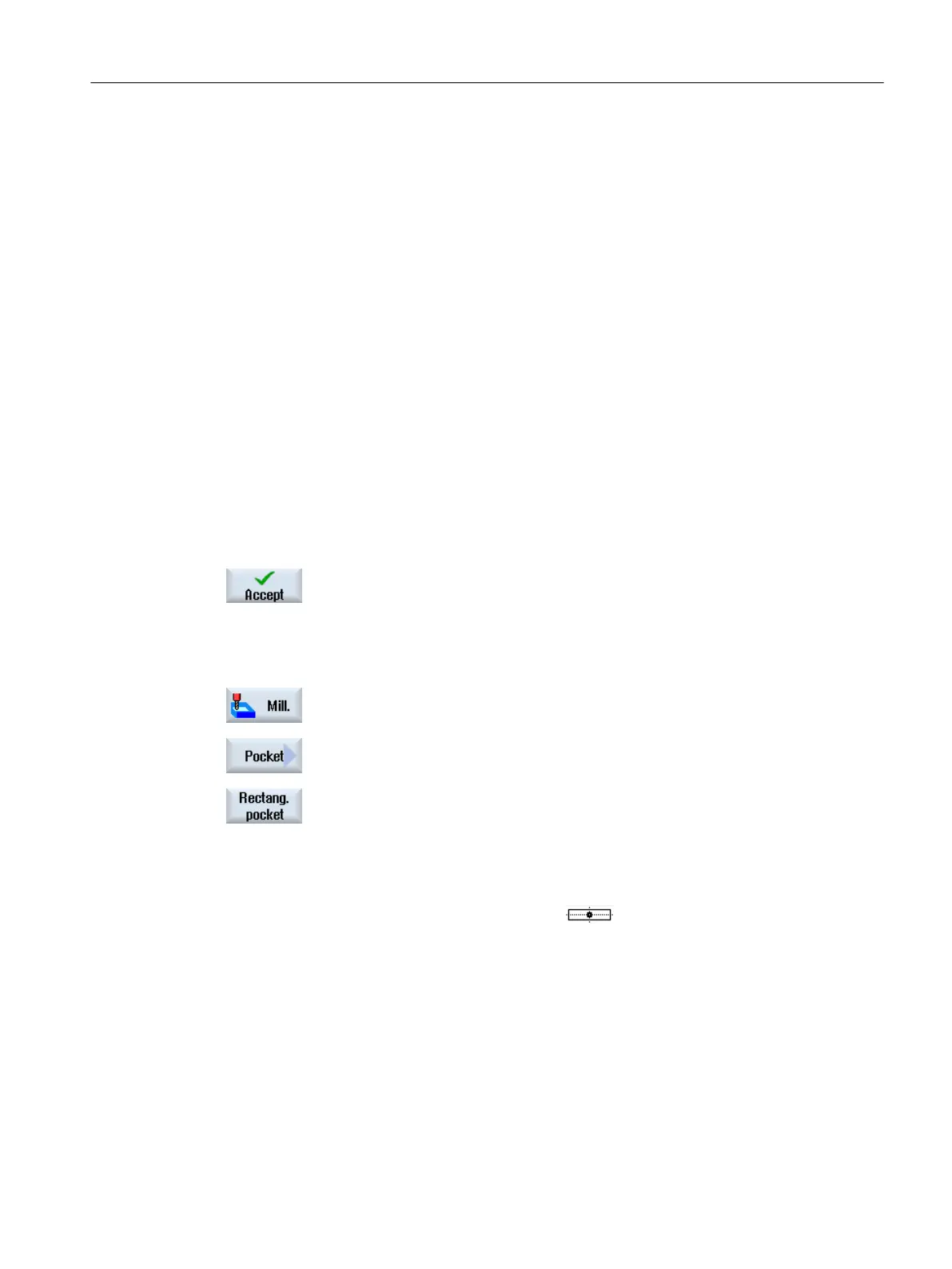

4. Press the "Accept" softkey.
6. Milling a rectangular pocket (small)
1. Press the "Milling", "Pocket" and "Rectangular pocket" softkeys.
The "Rectangular Pocket" input window opens.
2. Enter the following technology parameters:
T End mill_10mm D1 F 0.04 mm/tooth V 260 m/min
3. Enter the following parameters:
Reference point
Machining Roughing (∇)
Machining position Single position
X0 90abs
Y0 60abs
Z0 -4abs
W 20
L 35
R 5
α0 15degrees
Creating a ShopMill program
9.18 Example, standard machining
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 361
