● Edge finishing
Edge finishing is performed in the same way as finishing, except that the last infeed (finish
base) is omitted.
● Chamfering
Chamfering involves edge breaking at the upper edge of the circumferential groove.

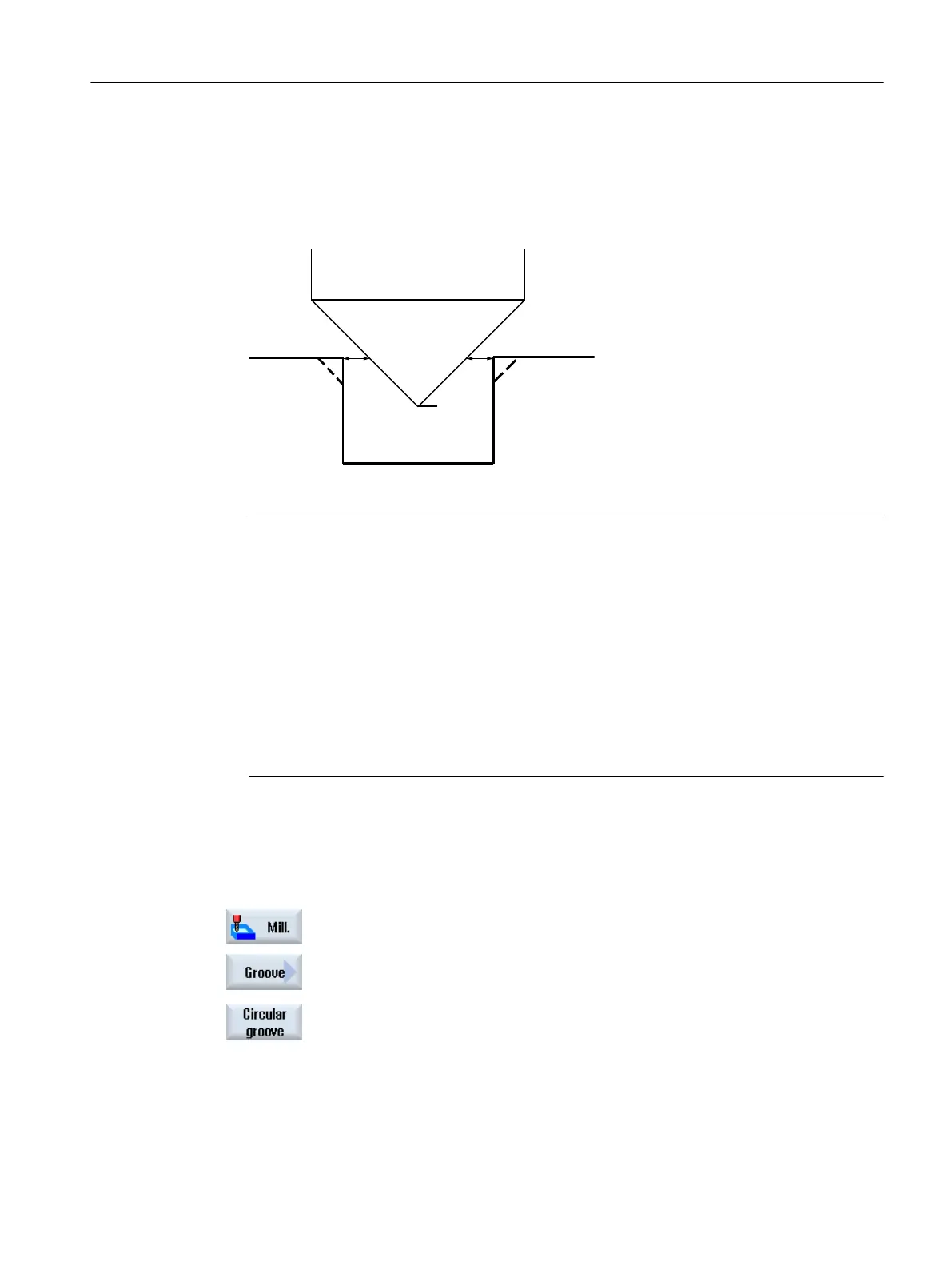

Figure 10-7 Geometries when chamfering inside contours
Note
The following error messages can occur when chamfering inside contours:
● Safety clearance in the program header too large
This error message appears when chamfering would, in principle, be possible with the
parameters entered for FS and ZFS, but the safety clearance then could not be
maintained.
● Immersion depth too large
This error message appears when chamfering would be possible through the reduction
of the immersion depth ZFS.
● Tool diameter too large
This error message appears when the tool would already damage the edges during
insertion. In this case, the chamfer FS must be reduced.
Procedure
1. The part program or ShopMill program to be processed has been created
and you are in the editor.
2. Press the "Milling" softkey.
3. Press the "Groove" and "Circumferential groove" softkeys.
The "Circumferential Groove" input window opens.
Programming technological functions (cycles)
10.2 Milling
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 457
