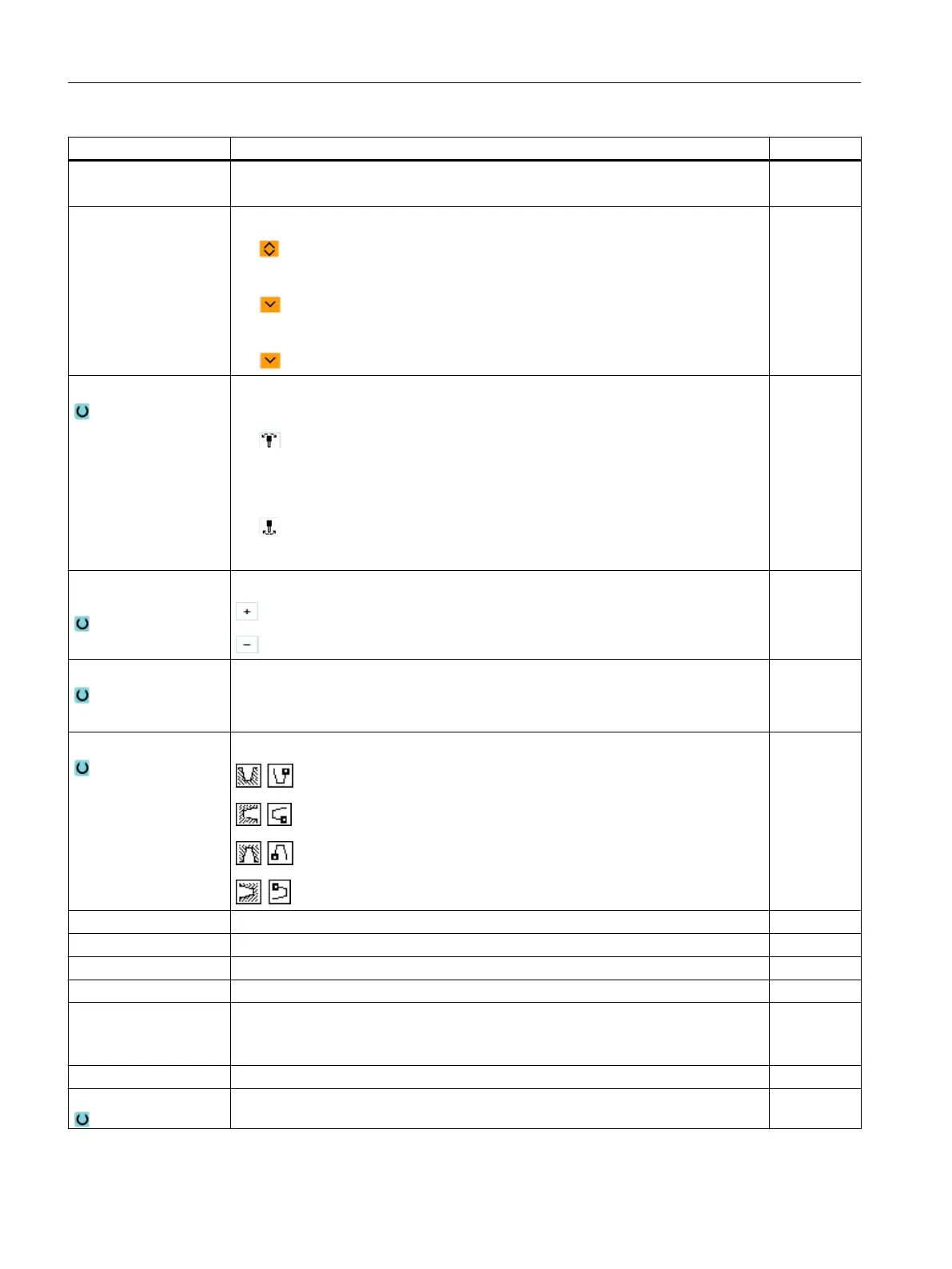

Parameter Description Unit
αC
(for ShopMill program)
Rotational position for a pole position
Hirth joint
(for ShopMill program)
● Round to the next Hirth joint
● Round up to Hirth joint
● Round down to Hirth joint
Tool Tool tip when swiveling
● Tracking
The position of the tool tip is maintained during swiveling.
● No tracking
The position of the tool tip is not maintained during swiveling.
Preferred direction (for
ShopMill program)
Preferred direction of the swivel axis for several possible alignments of the machine
Machining
● ∇ (roughing)
● ∇∇∇ (finishing)
● ∇ + ∇∇∇ (roughing and finishing)
Position Groove position/reference point:
X0 Reference point in X ∅ mm
Z0 Reference point in Z mm
B1 Groove width mm
T1 Groove depth ∅ (abs) or groove depth referred to X0 or Z0 (inc) mm
α1, α2 Edge angle 1 or edge angle 2 - (only for grooves 2 and 3)
Asymmetric grooves can be described by separate angles. The angles can be be‐
tween 0 and < 90°.
Degrees
α0 Angle of inclinations – (only for groove 3) Degrees
FS1...FS4 or R1...R4 Chamfer width (FS1...FS4) or rounding radius (R1...R4) - (only for grooves 2 and 3) mm
Programming technological functions (cycles)
10.4 Turning - milling/turning machine
Milling
522 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
