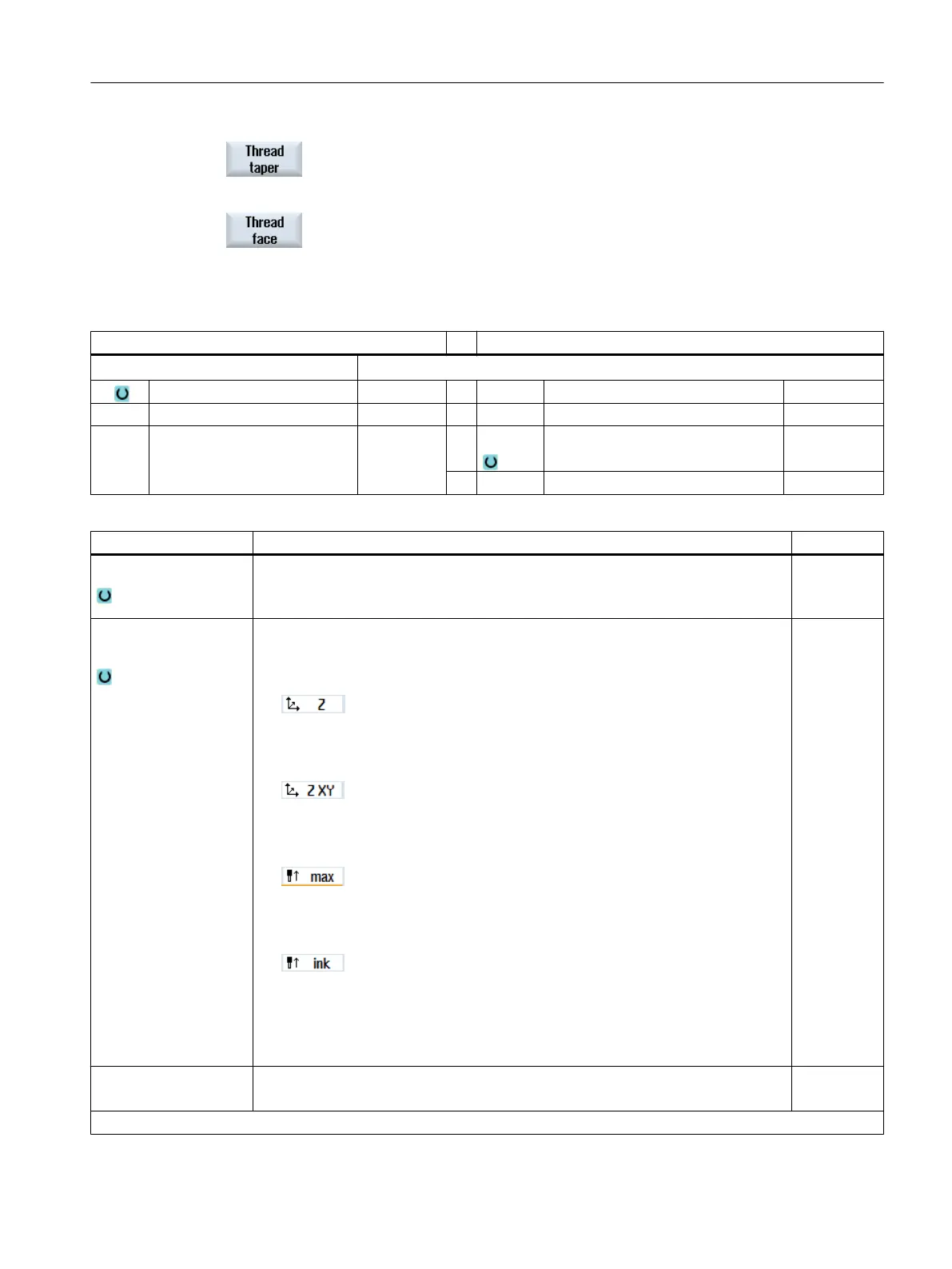

Press the "Tapered thread" softkey.
The "Tapered Thread" input window opens.
- OR -
Press the "Face thread" softkey.
The "Face Thread" input window opens.
Parameters in the "Complete" mode (longitudinal thread)
G code program parameters ShopMill program parameters
Input
● Complete
PL Machining plane T Tool name
SC Safety clearance mm D Cutting edge number
S / V Spindle speed or
Constant cutting rate
rpm
m/min
Parameter Description Unit
TC Name of the swivel data set
Note: The selection box only appears if more than one swivel data set has been set
up.
Retraction
(for ShopMill program)
● No
The axis is not retracted before swiveling
● Z
Retraction in the direction of machine axis Z
● Z,X,Y
Move machining axes to retraction position before swiveling
● Tool direction, max.
Maximum retraction (up to the software end position) in the tool direction
● Tool direction, inc.
Incremental retraction (specified retraction distance, up to the software end
position) in the tool direction
When retracting in the tool direction, in the swiveled machine state, several axes
can move (travel).
ZR
(for ShopMill program)
Retraction path - only for incremental retraction in mm
Align tool through beta and gamma angles
Programming technological functions (cycles)
10.4 Turning - milling/turning machine
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 537
