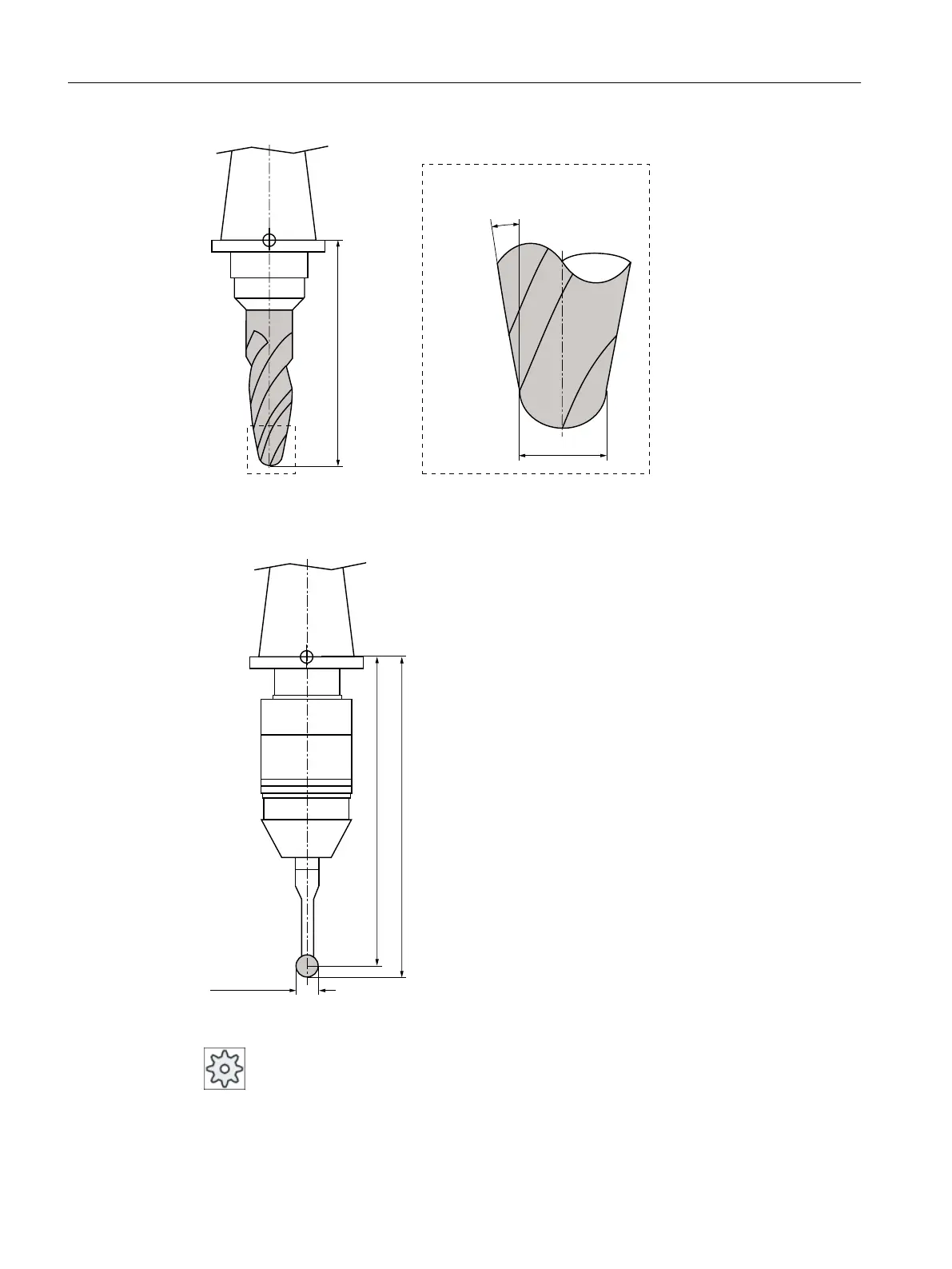

Figure 13-15 3D tool with an example of a tapered die-sinking cutter (Type 157)
/HQJWKP
'LDPHWHU
/HQJWKX
Figure 13-16 Electronic workpiece probe
Machine manufacturer
The tool length of the workpiece probe is measured to the center of the ball
(length m) or to the ball circumference (length u).
Please refer to the machine manufacturer's specifications.
