Structure of the directories
In the overview, the symbols in the left-hand column have the following meaning:
Directory
Program
All directories have a plus sign when the program manager is called for the first time.

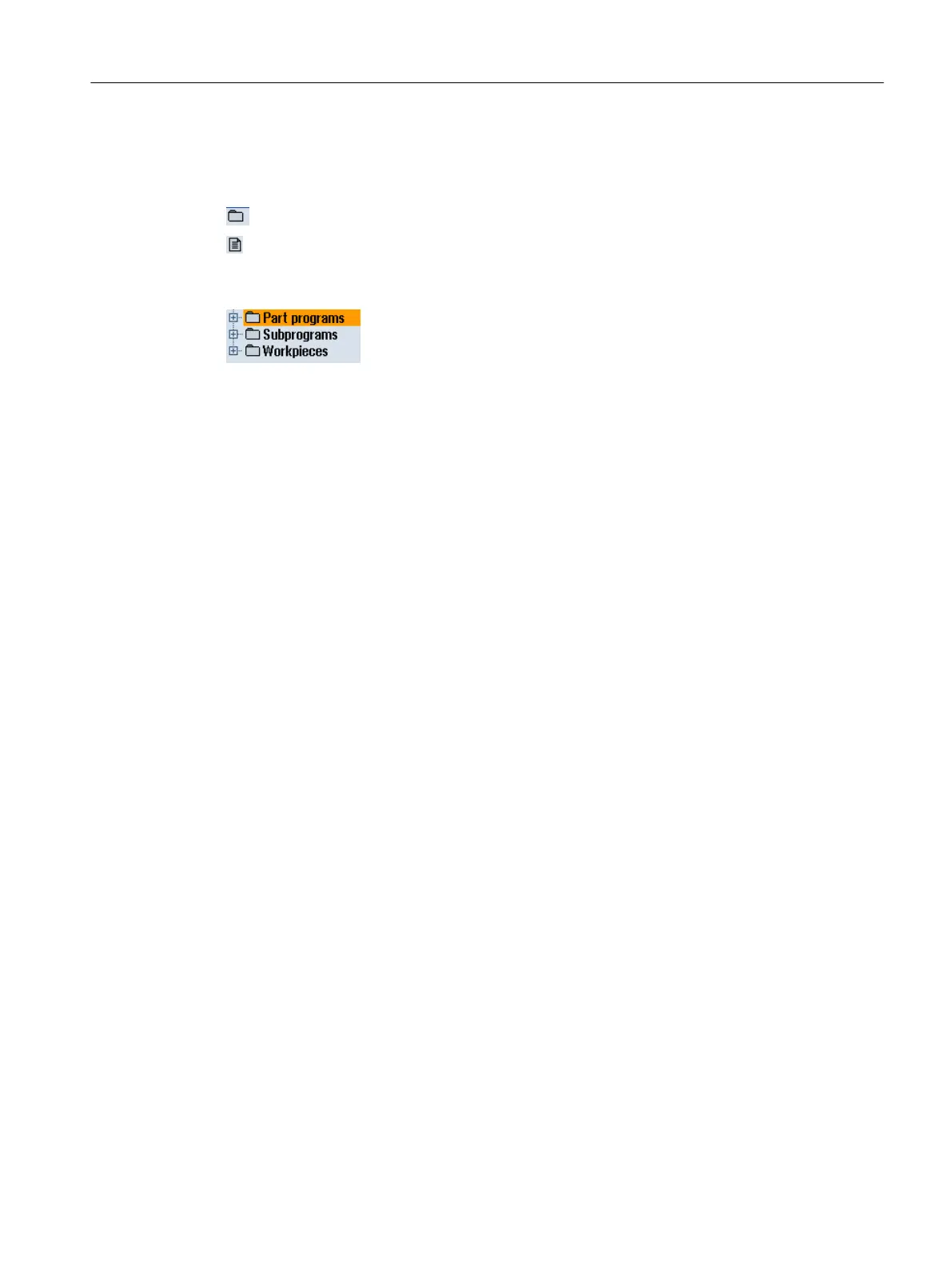

Figure 14-1 Program directory in the program manager
The plus sign in front of empty directories is removed after they have been read for the first
time.
The directories and programs are always listed complete with the following information:
● Name
The maximum length is 24 characters.
Permissible characters include all upper-case letters (without accents), numbers, and
underscores.
● Type
Directory: WPD
Program: MPF
Subprogram: SPF
Initialization programs: INI
Job lists: JOB
Tool data: TOA
Magazine assignment: TMA
Zero points: UFR
R parameters: RPA
Global user data/definitions: GUD
Setting data: SEA
Protection zones: PRO
Sag: CEC
● Size (in bytes)
● Date/time (of creation or last change)
Active programs
Selected, i.e. active programs are identified using a green symbol.
Managing programs
14.1 Overview
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 749
