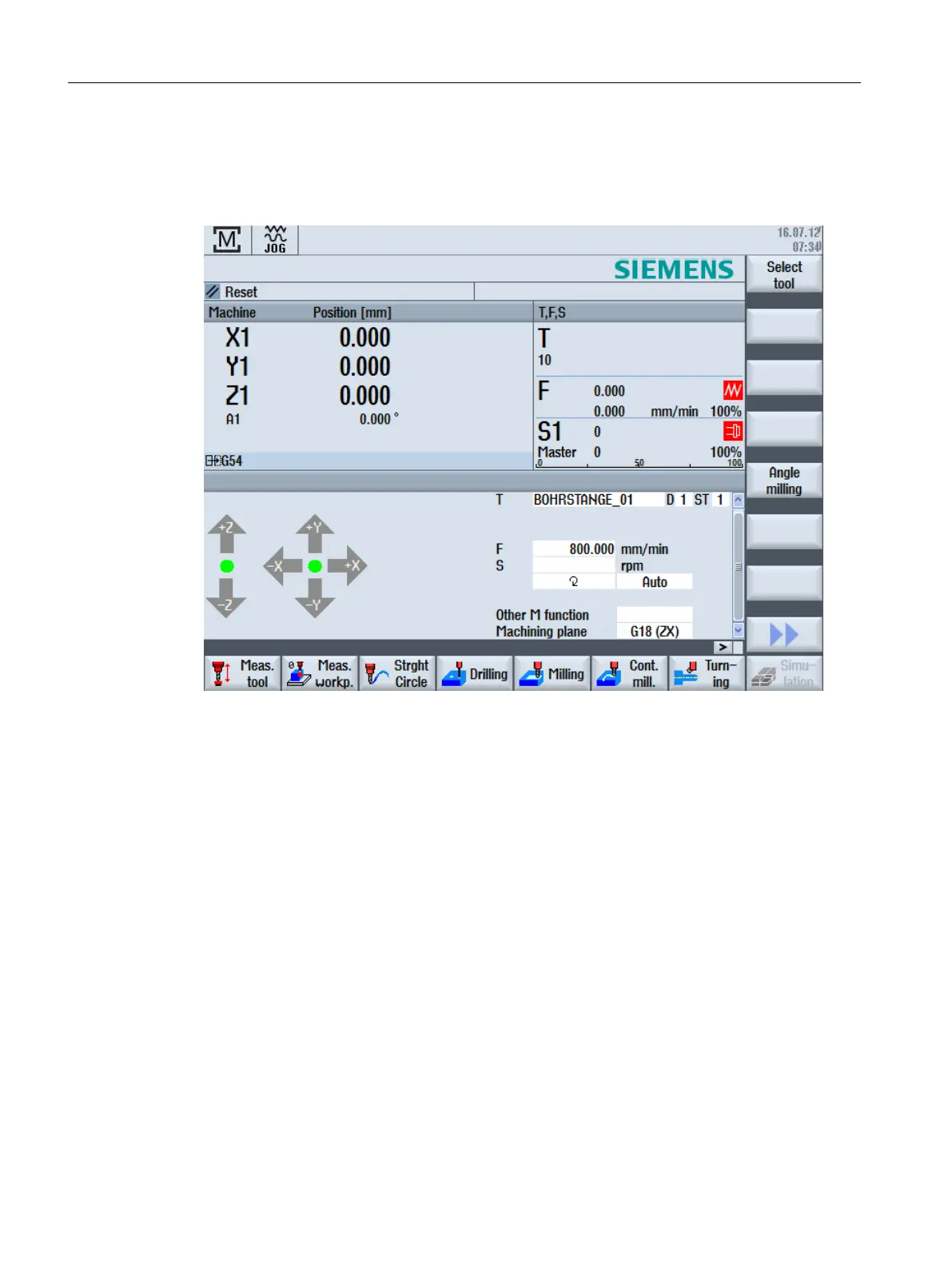

Main screen (for milling/turning machine)
The same scope of turning cycles is available for a milling/turning machine as in automatic
mode.
Figure 16-2
Main screen (for milling/turning machine)
Machining options
You have the following options for machining the workpieces:
●
Manual mode
●
Single-cycle machining
Working with Manual Machine
16.1 Manual Machine
Milling
832
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
831
833
