Procedure
1.
The "Ctrl-E Analysis" window is open.
2.

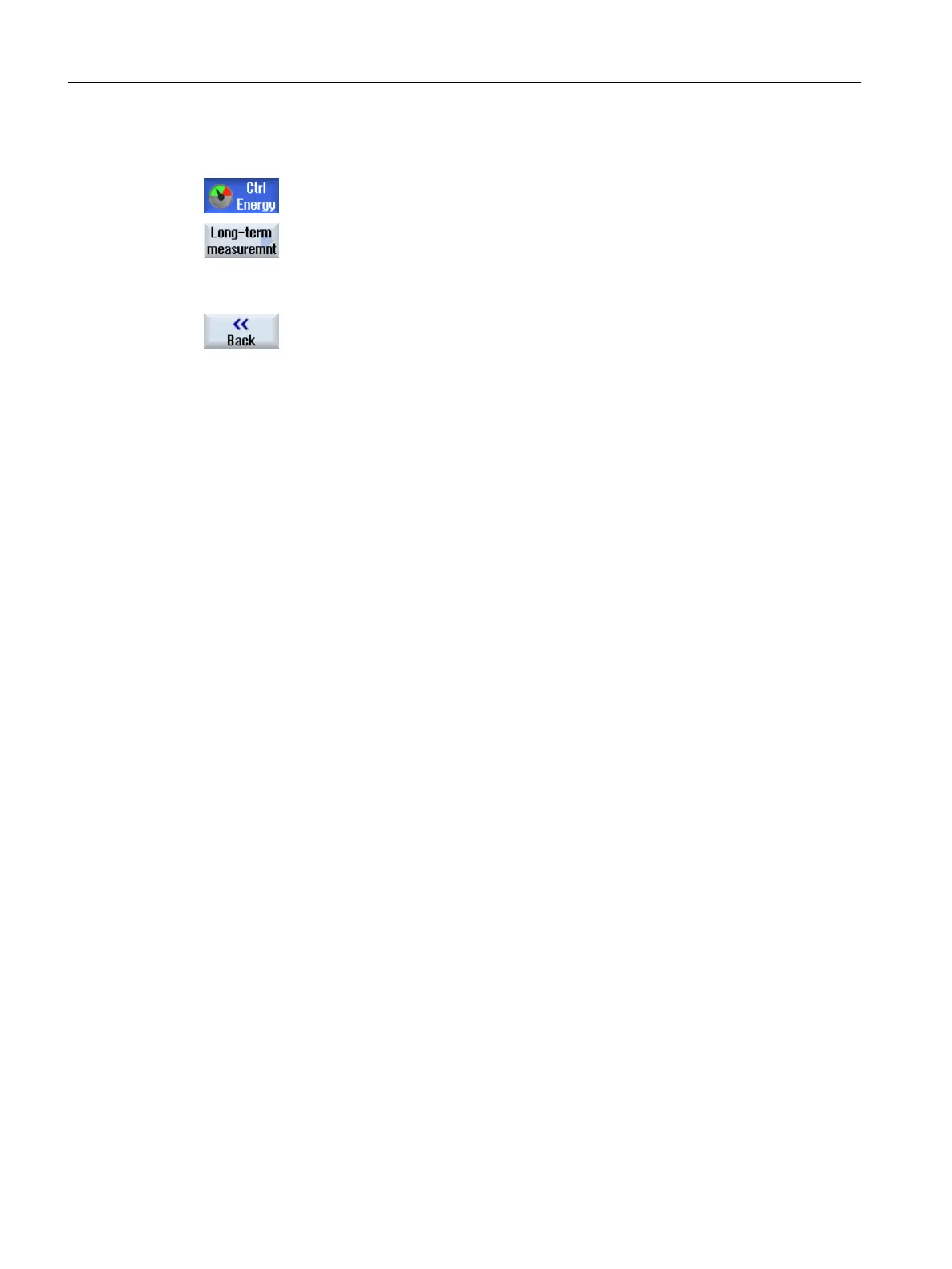

Press the "Long time measurement" softkey.
The "SINUMERIK Ctrl-Energy Analysis Long-term Measurement" win‐
dow opens.
The results of the long-term measurement are displayed.
3.
Press the "Back" softkey to terminate the long-term measurement.
Ctrl-Energy
19.2 Ctrl-E analysis
Milling
878
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
877
879
