Siemens MOBILETT Plus HP Maintenance Instruction

16 General
MOBILETT Plus HP SPR8-220.101.04.03.02 Siemens AG
07.05 CS PS 24
Page 16 of 64
Medical Solutions

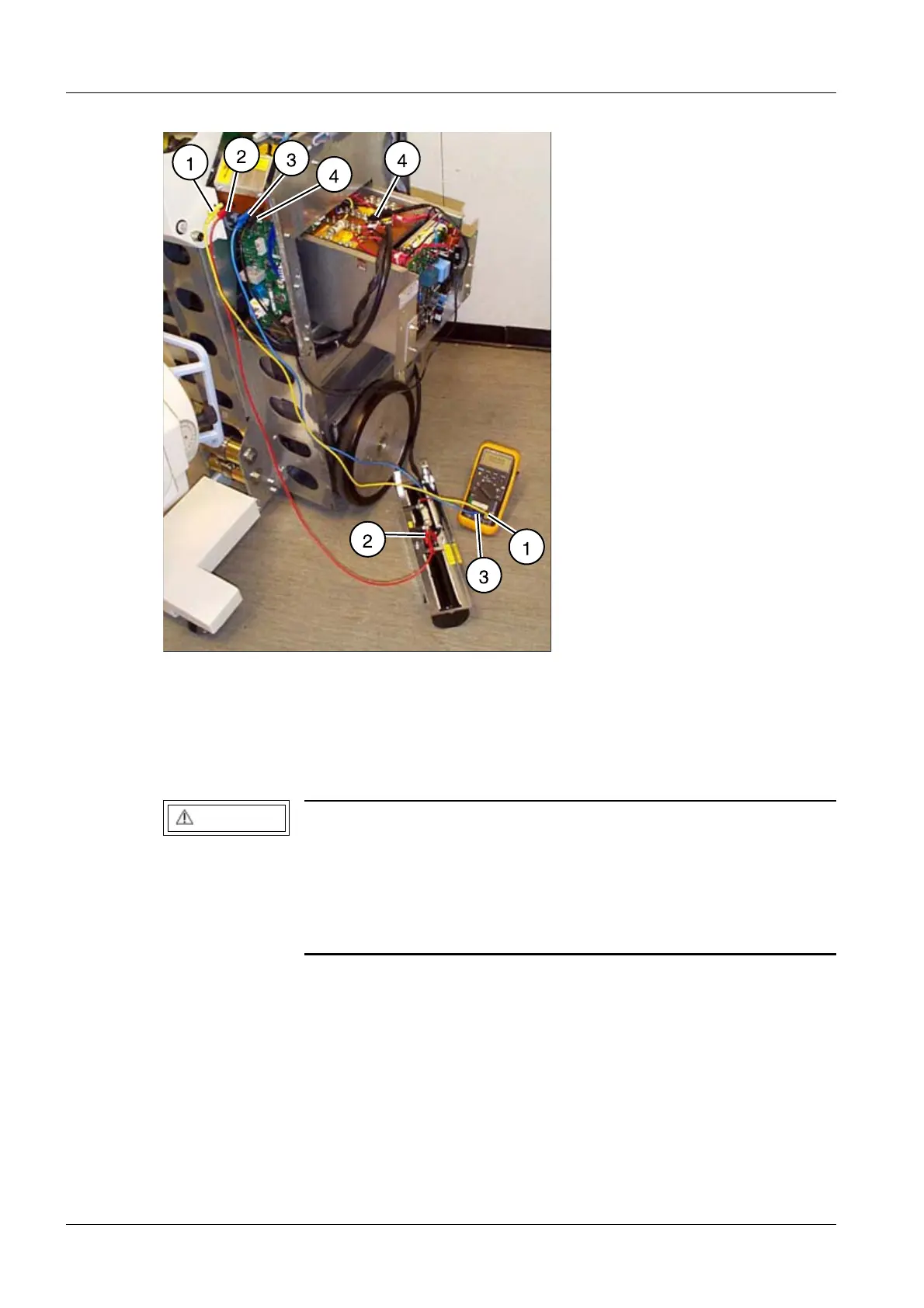

Fig. 6:
Pos. 1 Left connector on D7 to the + connector of the digital multimeter
Pos. 2 Second left connector on D7 to the fuse side (U11) next to the capacitor
Pos. 3 Second right connector on D7 to the - connector (GND) of the digital multimeter
Pos. 4 Right connector on D7 to the P11 connector on the power conversion unit (M10)
WARNING
If the charging/discharging does not function, the power conver-
sion unit M10 and M11 must be considered ”charged”.
This means a risk of high voltage.
¹ Use caution when performing measurements at the
capacitors in M10 and M11. Use only the specified mea-
surement devices (350 V DC).
