Siemens MOBILETT Plus HP - Arm System Mounting

34 Inspection and Maintenance
MOBILETT Plus HP SPR8-220.101.04.03.02 Siemens AG
07.05 CS PS 24
Page 34 of 64
Medical Solutions
2.2.10 Arm system mounting

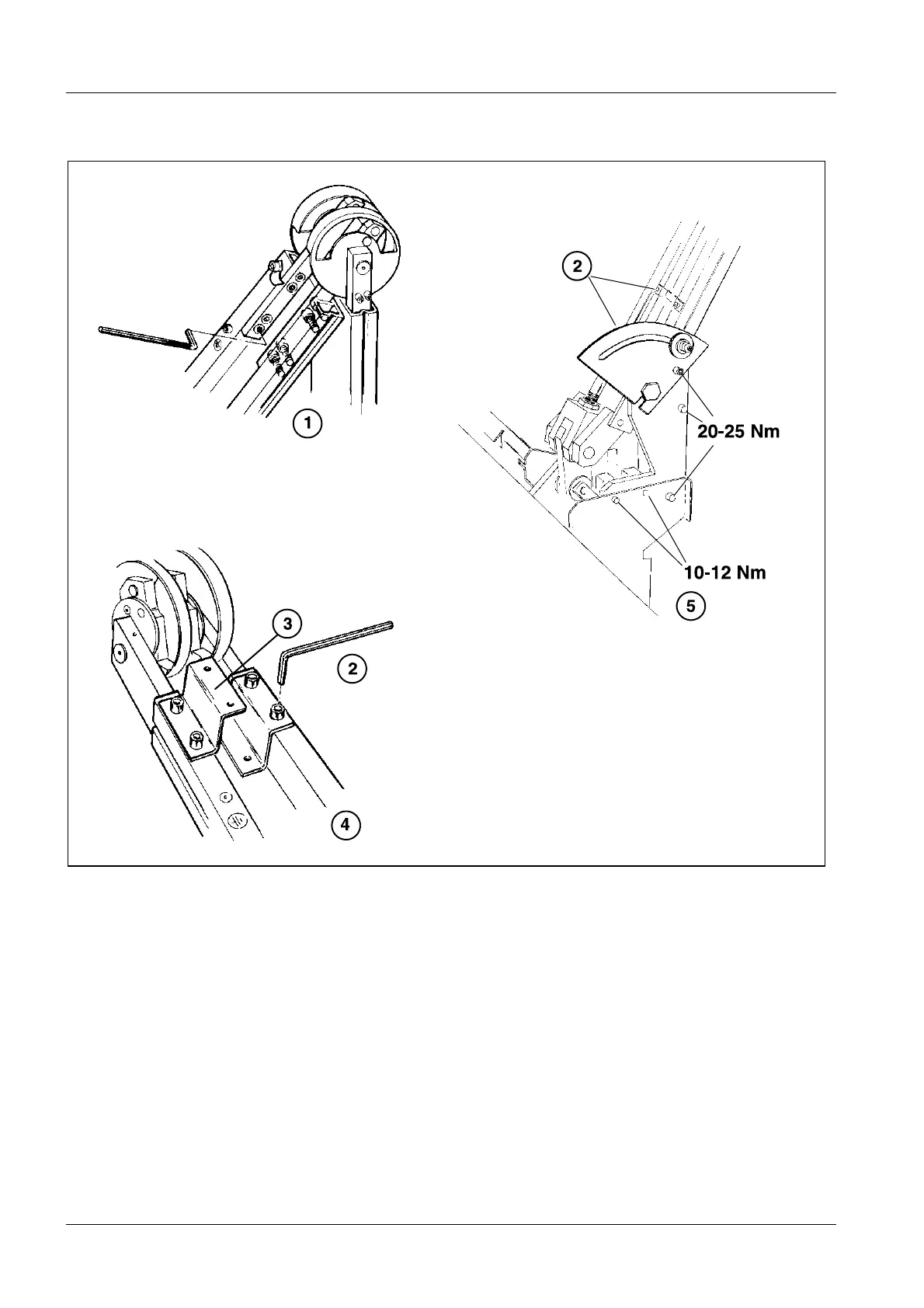

Fig. 12:
Pos. 1 Upper link (check without torque)
Pos. 2 Check without torque
Pos. 3 Nut
Pos. 4 Upper link
Pos. 5 Lower link
• Remove the arm covers as well as the upper and lower cover plates of the column. The
lower column cover can be lifted up.
SIM Screws and lock nuts
• Check that all the screws and lock nuts on the arm system are tightened securely
(Fig. 12 / p. 34).
