2.2.8 Arm system and single tank

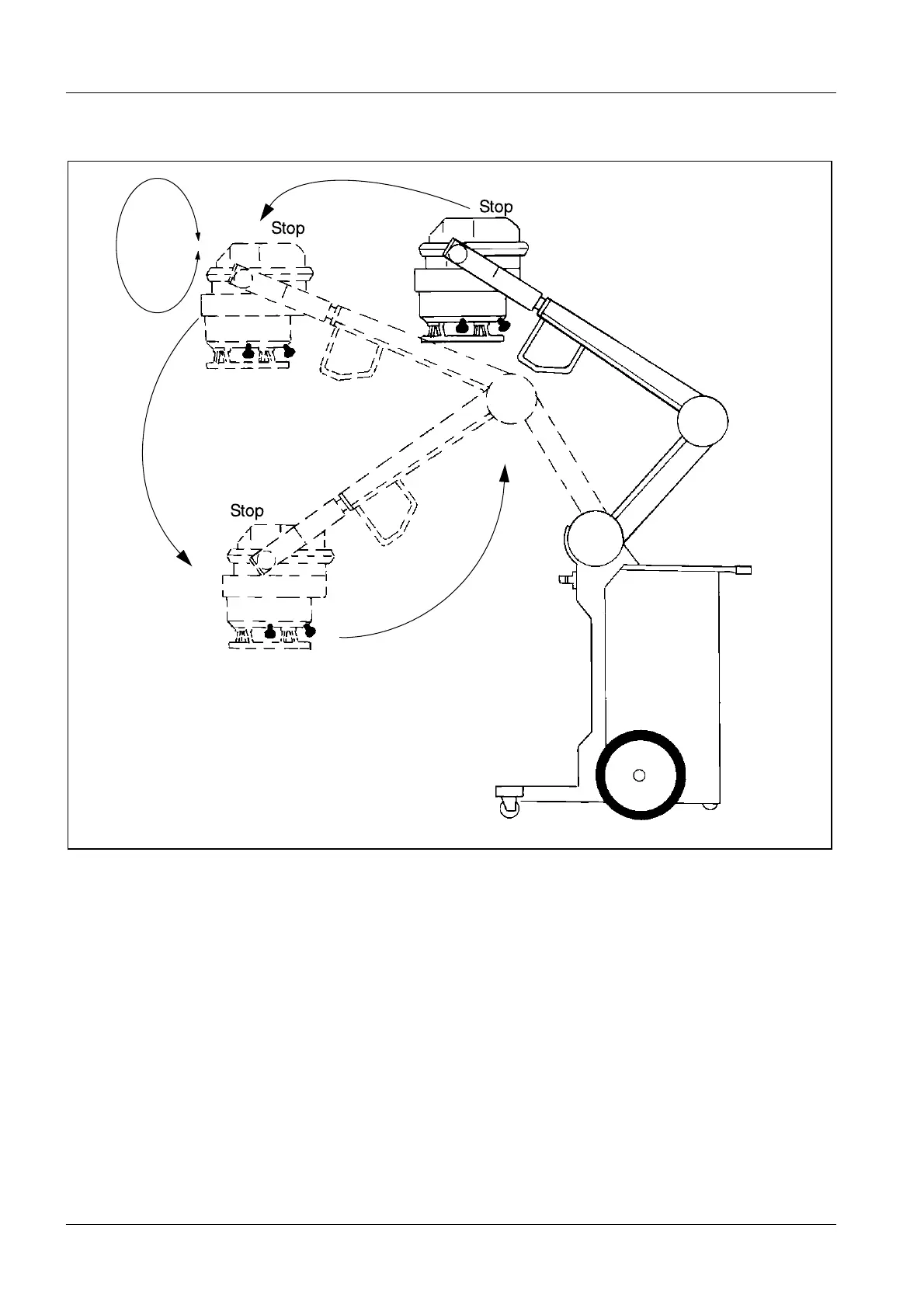

Fig. 10:
SIM Movement of the arm system
SIM Movement of the single tank fork
SIM Single tank movement
• The entire arm system including the single tank must not move by itself in any position.
However, it must be easily moveable to a new position. If this is not the case, proceed
according to the section ”Adjusting the friction linings” in the Service Instructions.
• Check that the single tank fork can be easily turned and stays in any desired position.
• Check that the single tank moves easily in the fork and stays in any desired position.
