Siemens MOBILETT Plus HP Maintenance Instruction

Siemens AG SPR8-220.101.04.03.02 MOBILETT Plus HP
07.05 CS PS 24
Inspection and Maintenance 35
Page 35 of 64
Medical Solutions
2.2.10.1 Adjustment screw
WARNING
If the screw is loosened, the arm might fall down!
¹ When checking the adjustment screw, do not loosen the
nuts or turn the adjustment screw.
¹ Avoid loosening the screw and the nuts.
SIM Lock nuts
• Check the lock nuts on the adjustment screw (Fig. 13 / p. 35).
SIM Base mounting
• Check the base mounting in the chassis (Fig. 13 / p. 35).
2.2.10.2 Arm connecting piece
SIM Screws and nuts
• Remove the cover of the lower connecting piece.
NOTE
Note the assembly sequence.
• Check the screws and nuts on the connecting piece (Fig. 14 / p. 35).

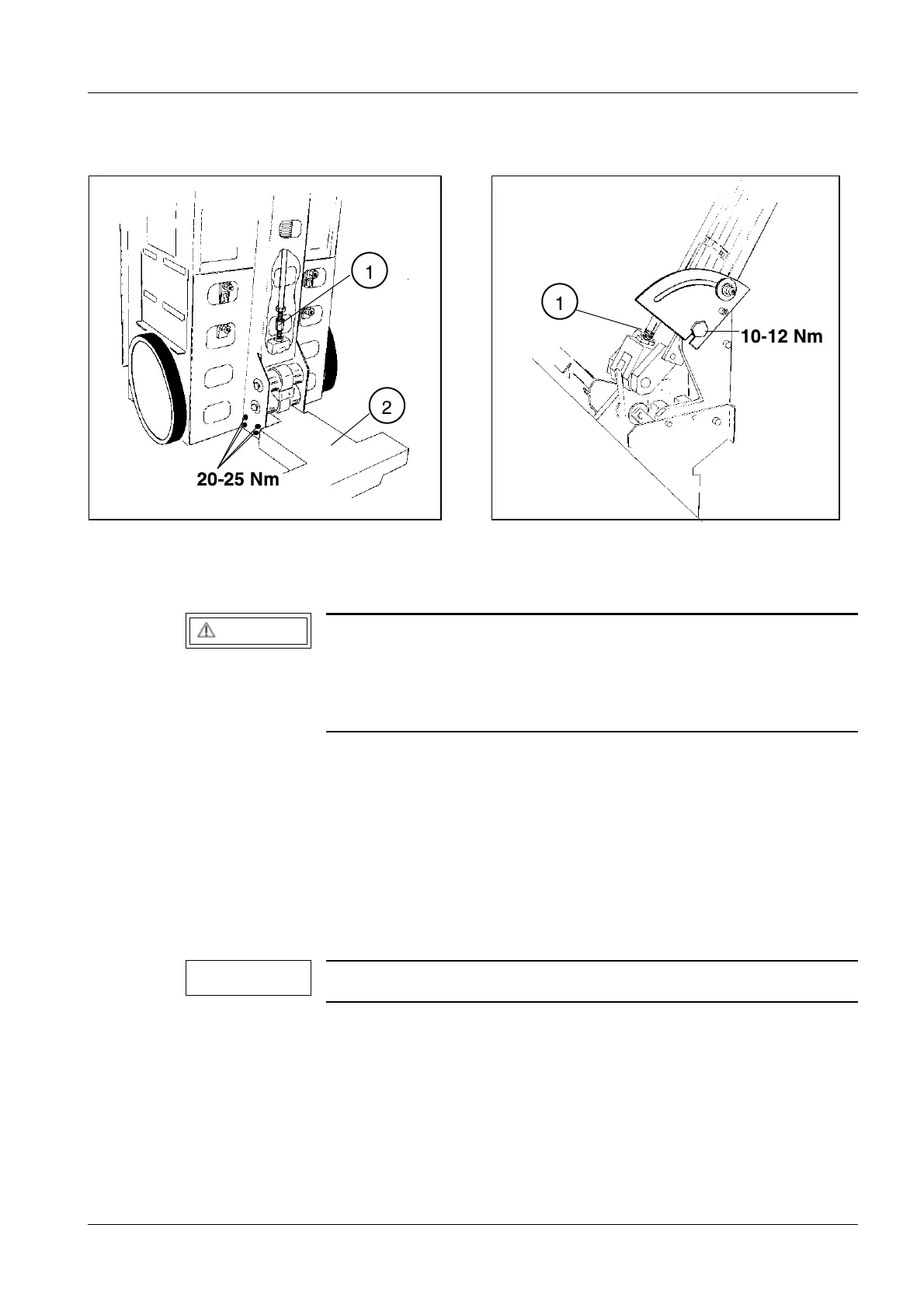

Fig. 13:
Pos. 1 Adjustment screw (check without torque)
Pos. 2 Foot
Fig. 14:
Pos. 1 Check without torque
