2.2.10.3 Single tank fork
SIM Screw connections on the fork

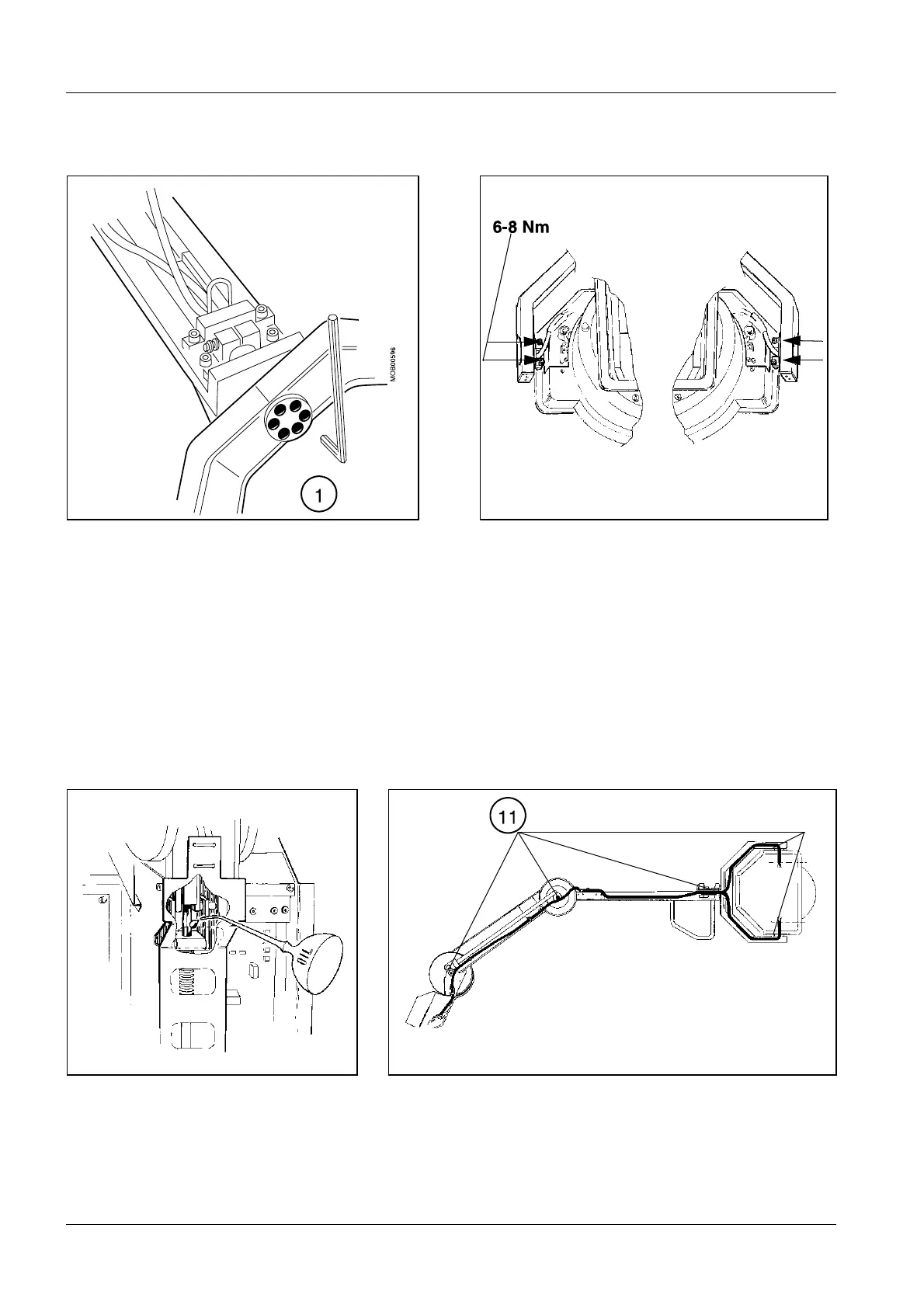

• Check and tighten all screw connections of the fork on the support arm (Fig. 15 / p. 36).
SIM Single tank screw connections
• Check the four screw connections of the single tank. They are accessible from the top
side of the single tank without removing the cover (Fig. 16 / p. 36).
2.2.10.4 Lubrication
Remove the cover of the column stand.
Fig. 15:
Pos. 1 Check without torque
Fig. 16:
Fig. 17:
Fig. 18:
Pos. 11 Rotation wear
