Technical data

110-0134.9 / 14 NXAIR / ≤ 40 kA 19

A rating plate (1) is provided on the operating mechanism unit of every contactor type 3TL and 3TM.

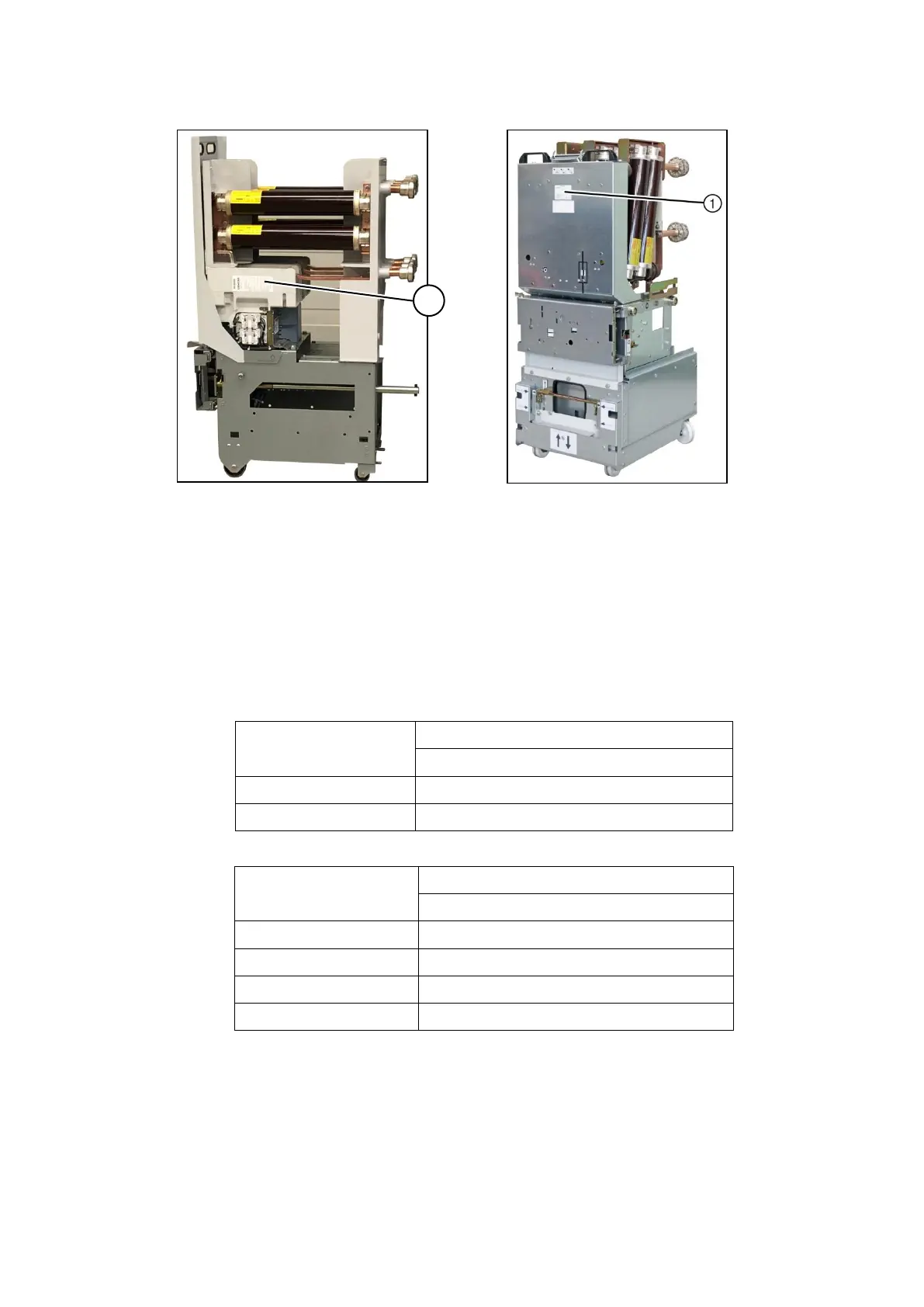

Fig. 5:

Contactor truck type 3TM3

Fig. 6:

Contactor truck type 3TL8

4.12 Operating instructions for contactor type 3TL8 and 3TM3

For contactors type 3TL8 and 3TM3, separate operating instructions are available with detailed instructions

and information. The operating instructions are supplied as standard with every contactor type 3TL and 3TM.

Additional operating instructions in different languages can be ordered at the regional Siemens

representative.

Available operating instructions for contactor type 3TL and 3TM

Language

Order number of operating instructions

3TL8

German-English

9229 9870 174 0G

French-Spanish

9229 9870 159 0G

Language

Order number of operating instructions

3TM3

English

9229 0090 176 0A

German

9229 0090 100 0A

Russian

9229 0090 156 0A

Polish

9229 0090 155 0A
