Siemens NXAIR User Manual

216 NXAIR / ≤ 40 kA 110-0134.9 / 13
Operating the switch-disconnector panel
18 Operating the switch-disconnector panel
INFORMATION
Read and understand these instructions before attempting operating works.
18.1 Control elements at the front side of the panel

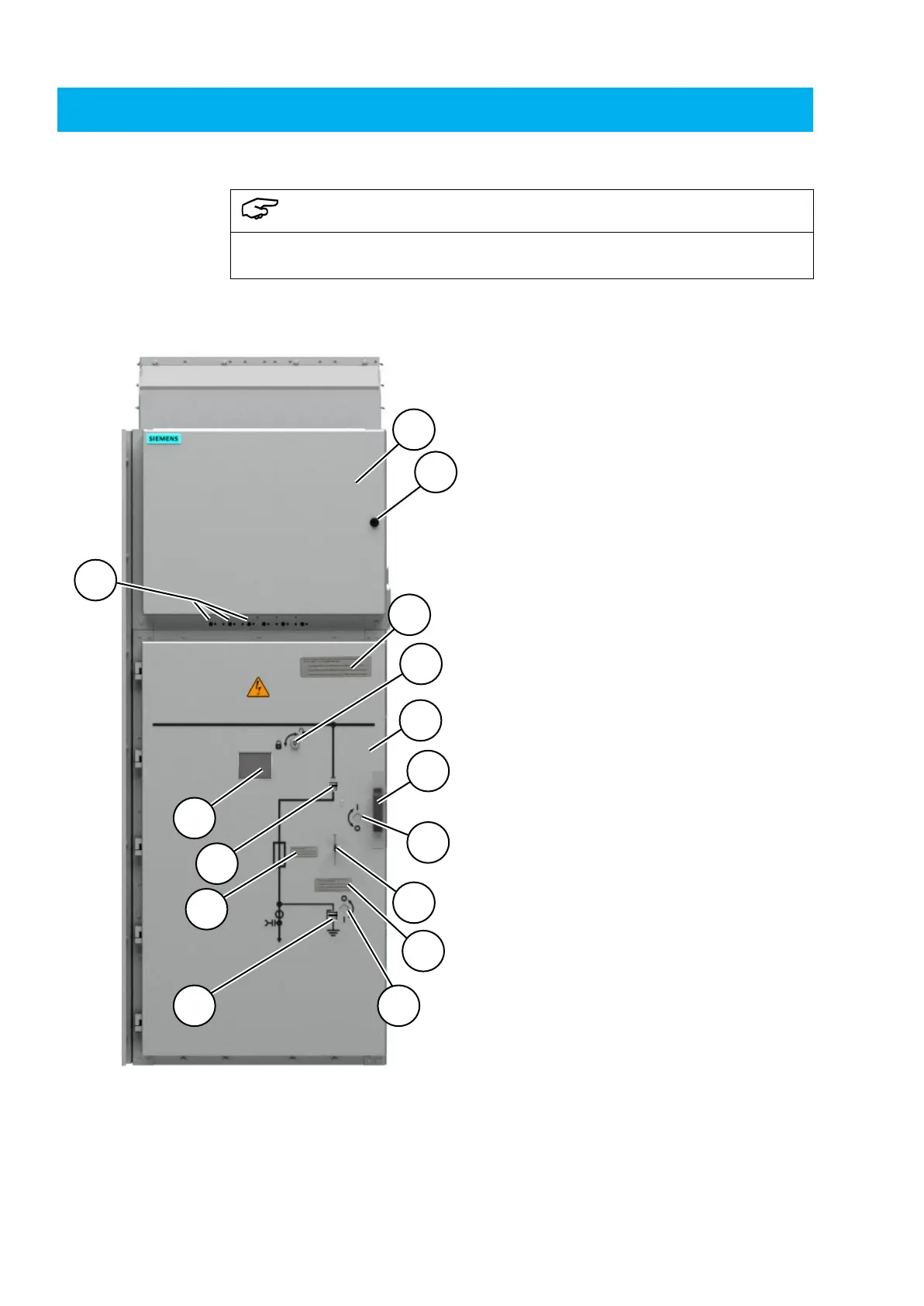

Fig. 380: Control elements on
the panel front
(1)
Door to the low-voltage compartment
(2)
Locking device for the door to the low-
voltage compartment
(3)
Instruction label for closing the high-
voltage door
(4)
Actuating opening for inserting the
double-bit key to opening high-voltage
door
(5)
High-voltage door
(6)
Handle for opening the high-voltage door
(7)
Actuating opening for operating the
switch-fuse combination
(8)
Operating slide for opening and closing
the actuating opening for operating
earthing switch / switch-fuse combination
(9)
Instruction label for the operating lever for
the earthing switch
(10)
Actuating opening for operating the
earthing switch
(11)
Mechanical position indicator for
earthing switch
(12)
Instruction label for replacing the HV HRC
fuses
13
Mechanical position indicator for switch-
fuse combinaton
(14)
Inspection window to identify the switch
positions of the switch-fuse combination
(15)
Test sockets for busbar voltage detecting
system (type LRM) as additional
component
1
2
3
6
7
4
8
5
14
11
13
12
9
10
15
