110-0134.9 / 14 NXAIR / ≤ 40 kA 21

Overview of panel types

5 Overview of panel types

The air-insulated medium-voltage switchgear NXAIR consists of various panel versions which can be freely

combined according to the requirements.

The following panel types are available:

•

Circuit-breaker panel

•

Disconnecting panel

•

Metering panel

•

Bus sectionalizer, type 1

• 1 × circuit-breaker panel plus 1 × bus riser panel with disconnector link

• Bus sectionalizer, type 2

•

circuit-breaker panel plus 1

bus riser panel, optionally with metering part

• Busbar current metering panel

•

Busbar connection panel

•

optionally with metering part

•

Contactor panel

•

Switch-disconnector panel

Further information to design features and design options is given in catalog HA 25.71.

Overview of panel types:

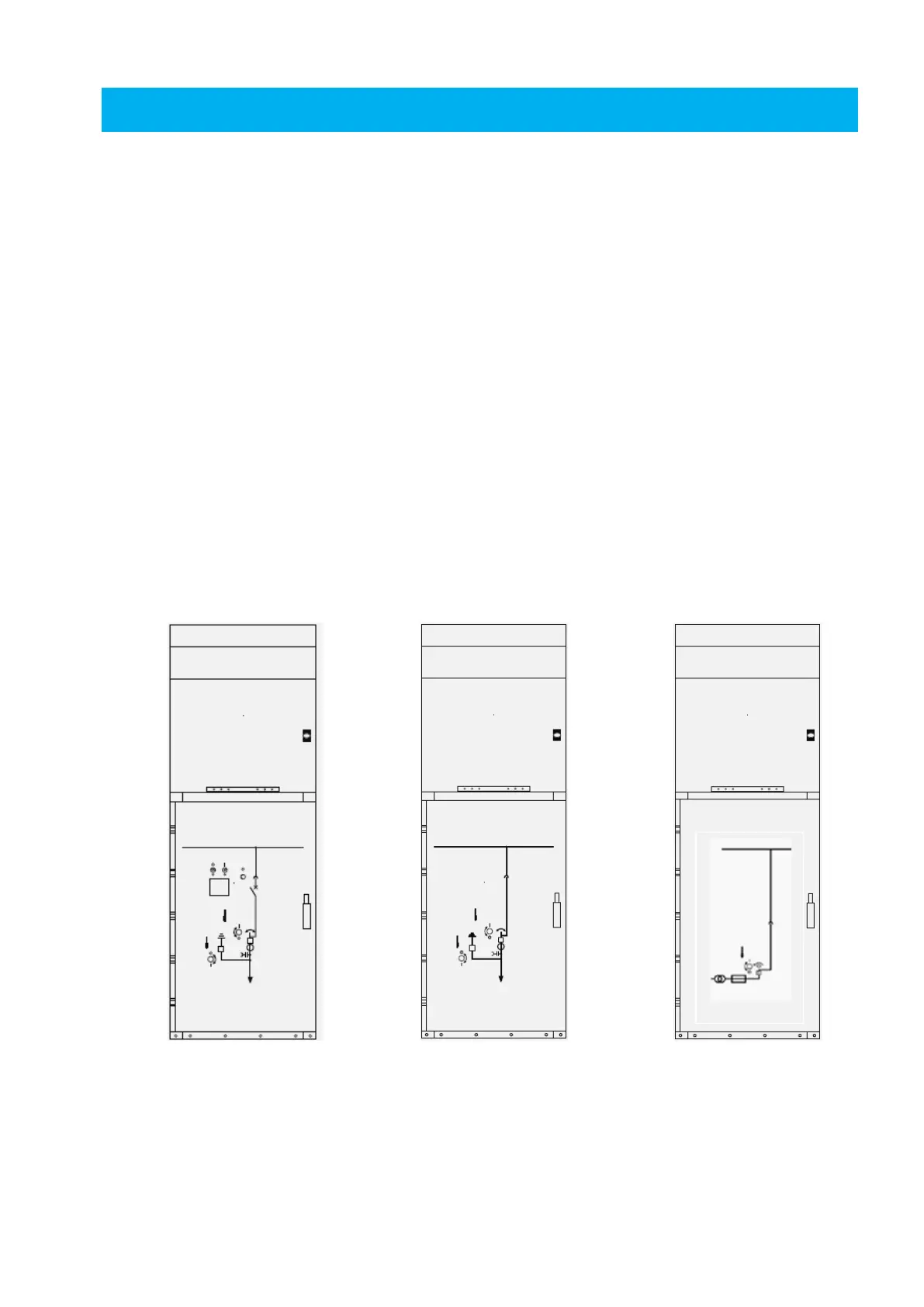

Fig. 10 Circuit-breaker panel

Fig. 11: Disconnecting panel

Fig. 12: Metering panel
