Accessing the connection compartment through the front
110-0134.9 / 14 NXAIR / ≤ 40 kA 303
Removing the partition, all panel versions except for contactor panels with panel width 435 mm and
switch-disconnector panel
Remove the connecting elements from the partition to the connection compartment (3), and
store them:
All panel versions except for contactor panels with panel width 435 mm and switch-
disconnector panel:
• 10 bolts M8x20 with contact washers and plain washers (4)
• 5 bolts M8x20 with contact washers (5)
Remove the partition (3), and store it.

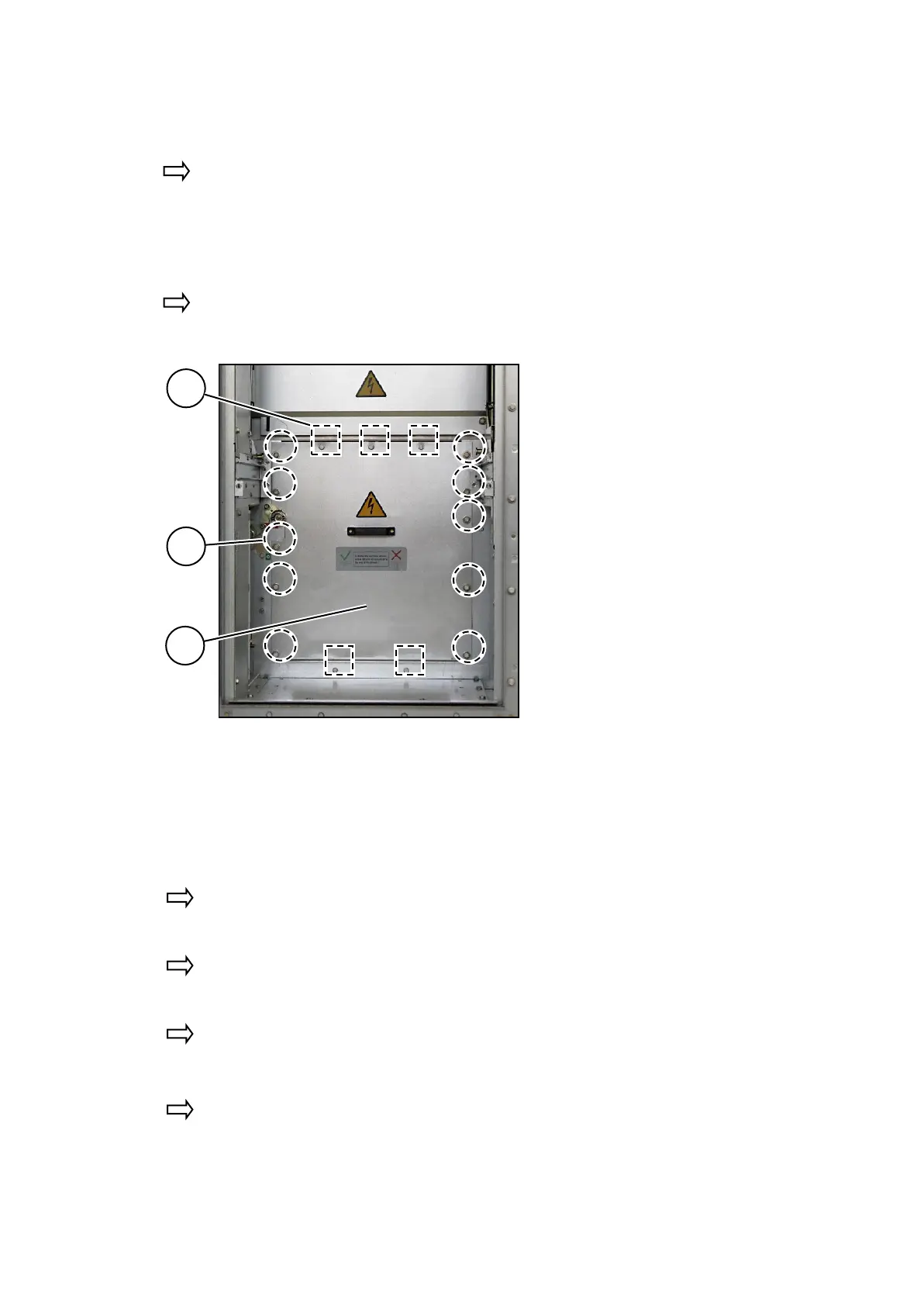

Fig. 556: All panel versions except for
contactor panels with panel width
435 mm and switch-disconnector
panel: 15 bolted joints on partition
Removing the partition, for contactor panels with panel width 435 mm without heater
Remove the connecting elements (1) from the left part of the partition (2) to the connection
compartment, and store them:
• 7 bolts M8x20 with contact washers (1)
Remove the left part of the partition (2), and store it
Remove the connecting elements (4) from the right part of the partition (3) to the connection
compartment and store them:
• 4 bolts M8x16 with contact washers (4)
Remove the right part of the partition (3), and store it.
