Siemens NXAIR User Manual

Panels with motor operating mechanism control
400 NXAIR / ≤ 40 kA 110-0134.9 / 14
Procedure
To open the actuating opening for racking, lift the operating slide as far as it will go and
hold it.
Push the racking crank for moving the withdrawable circuit-breaker / circuit-breaker truck
onto the operating shaft, and turn counter-clockwise as far as it will go.

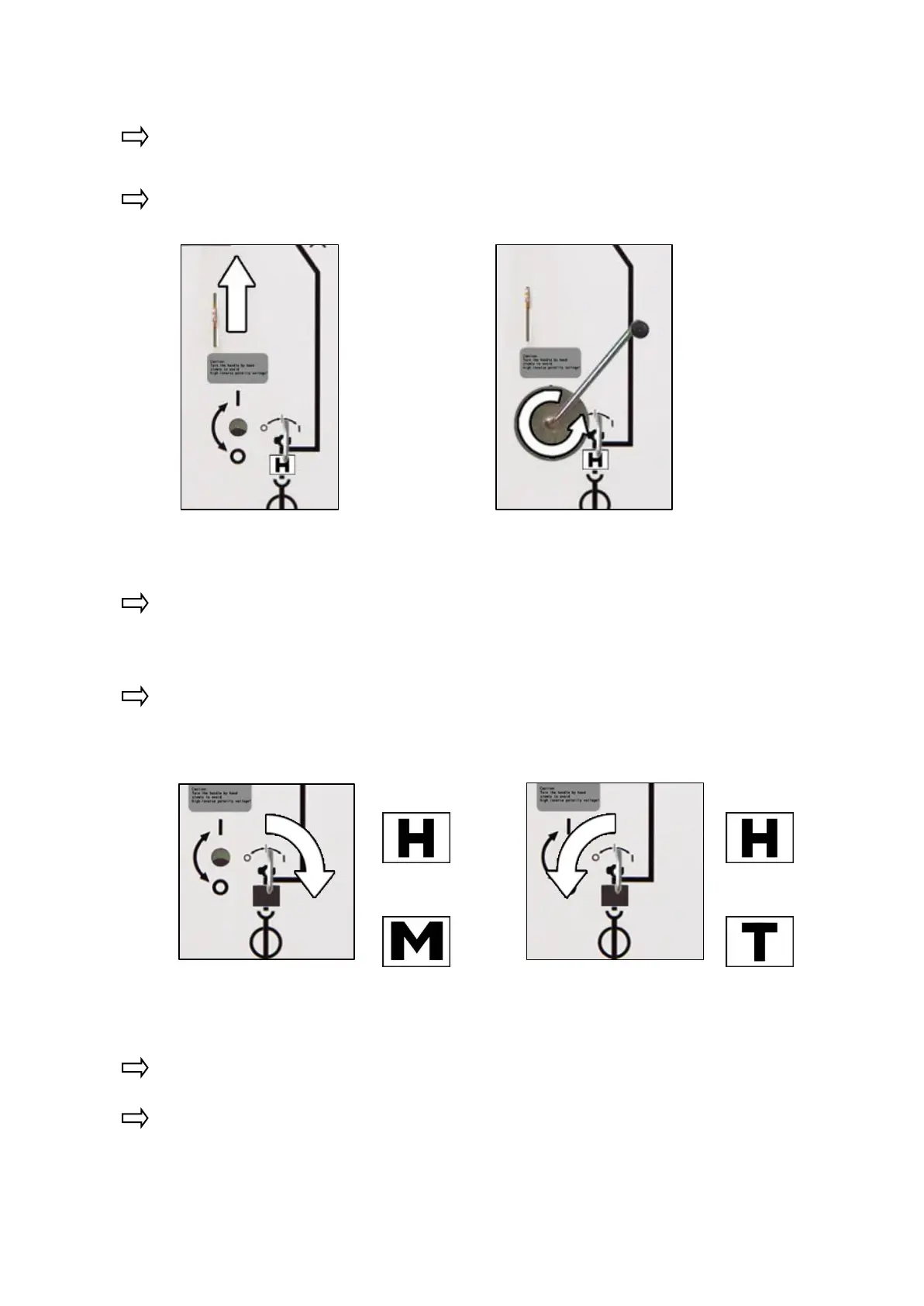

Fig. 719: Lifting the operating slide
Fig. 720: Turning the racking crank
counter-clockwise
Remove the racking crank for moving the withdrawable circuit-breaker / circuit-breaker truck.
Depending on the access mode intended, turn the double-bit key until the operating mode
indicator changes to "M" or to "T":
• To release electrical access to the withdrawable circuit-breaker / circuit-breaker
truck, change from "H" to "M" by turning 90° clockwise.
• To block any access to the withdrawable circuit-breaker / circuit-breaker truck,
change from "H" to "T" by turning 90° counter-clockwise.
from
to
from
to
Fig. 721: Turning the key clockwise
Fig. 722: Turning the key counter-
clockwise
Remove the double-bit key.
To close the actuating opening, push the operating slide down as far as it will go.
