802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 109/293
Installation
Joining the panels
➭ Bolt the panels together at the alignment brackets ① using 2 panel connecting bolts M8x20
and nut-and-washer assemblies M8 each (tightening torque: 30 Nm). The usable fixing
points depend on the panel types.
Check the reference dimension K1 between the bushings (see page 111, "Assembling the
busbars"). If necessary, insert spacers between the alignment brackets of the panels. The
spacers are supplied with the supplementary equipment.

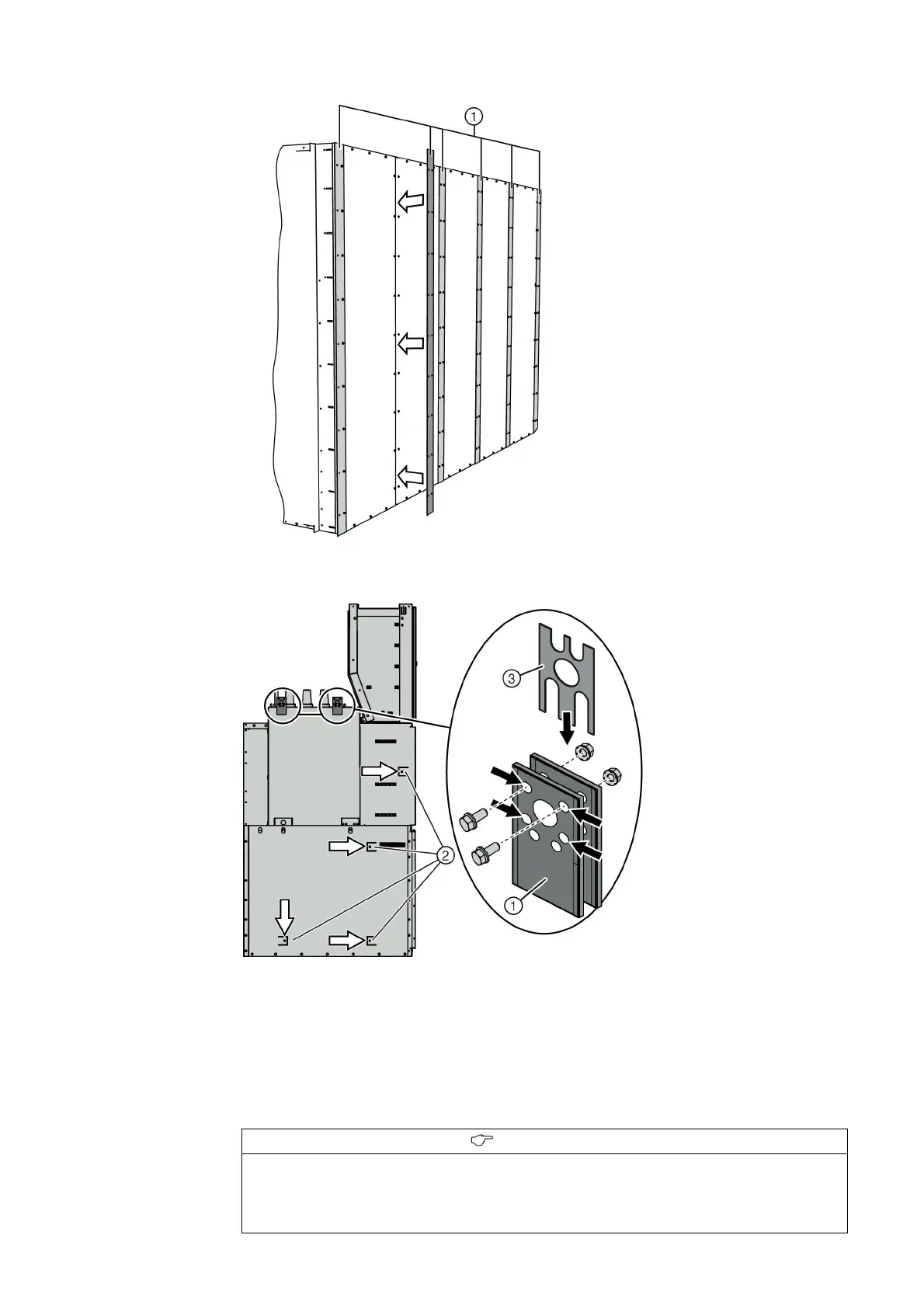

Fig. 66: Mounting the sealing strips
①
Sealing strips
Fig. 67: Joining the panels
①
Alignment bracket
②
Fixing lug
③
Spacer
INFORMATION
The cable compartment covers can be coded, and the operating mechanism covers are
designed specifically for each panel. Any removed cable compartment covers and operating
mechanism covers must therefore be mounted on the same panels again.
➭ Write the corresponding panels numbers on all covers before removal.
