Description
8.2 Disconnector panels

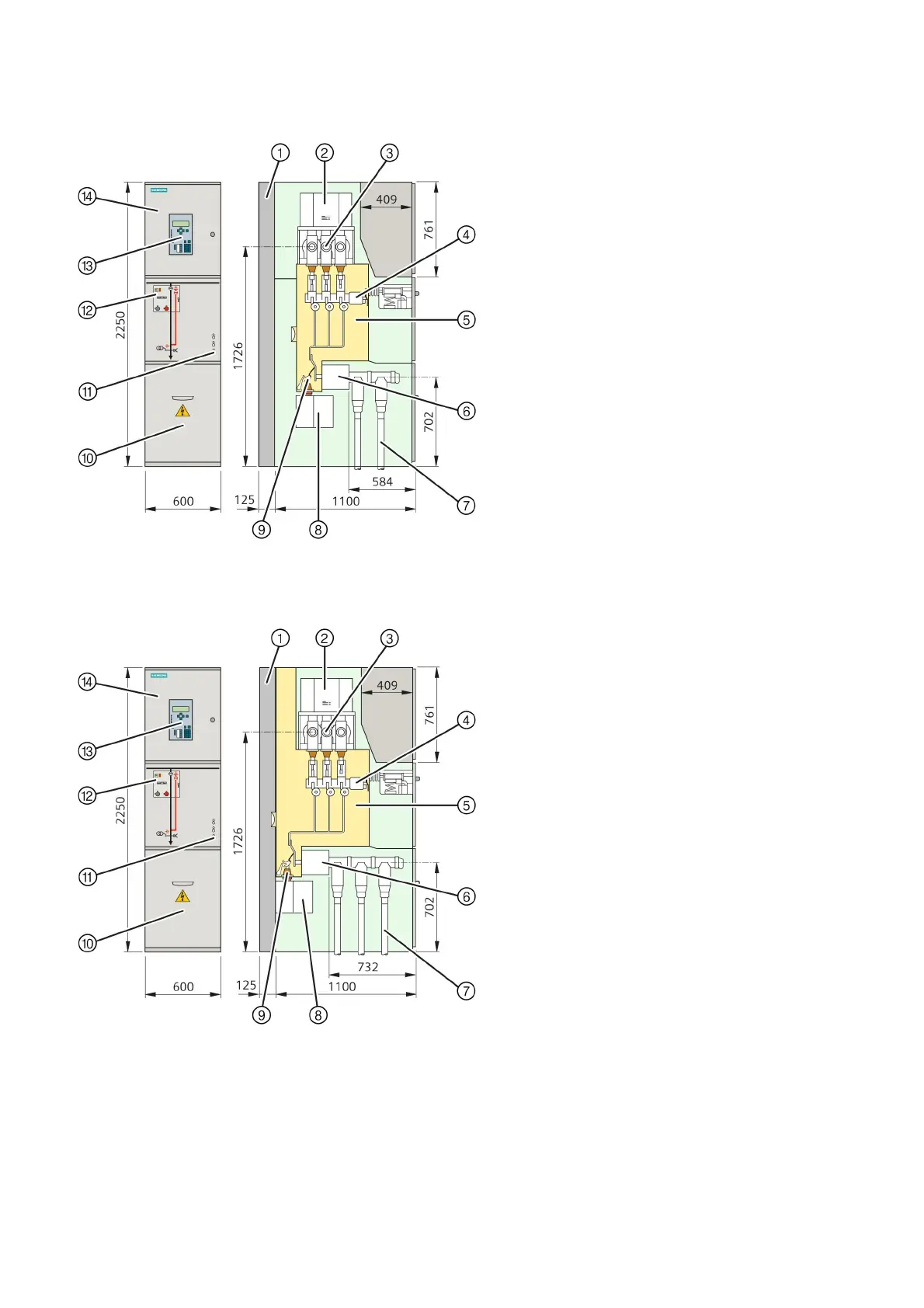

Fig. 10: Disconnector panel (1000 A)
①
Rear pressure relief duct
②
Busbar voltage transformer (option)
③
Busbar system
④
Three-position disconnector
⑤
Switchgear vessel, hermetically welded, filled with
SF
6
gas, with bursting disc
⑥
Ring-core current transformer (option)
⑦
Cable with cable plug for outside-cone plug-in
system
⑧
Voltage transformer (option)
⑨
Voltage transformer disconnector (option)
⑩
Cover to cable compartment
⑪
Capacitive voltage detecting system (busbar: left
side, cable feeder: right side)
⑫
Control board
⑬
SIPROTEC bay controller (option)
⑭
Low-voltage compartment
Fig. 11: Disconnector panel (1250 A)
①
Rear pressure relief duct
②
Busbar voltage transformer (option)
③
Busbar system
④
Three-position disconnector
⑤
Switchgear vessel, hermetically welded, filled with SF
6
gas, with bursting disc
⑥
Ring-core current transformer (option)
⑦
Cable with cable plug for outside-cone plug-in system
⑧
Voltage transformer (option)
⑨
Voltage transformer disconnector (option)
⑩
Cover to cable compartment
⑪
Capacitive voltage detecting system (busbar: left side,
cable feeder: right side)
⑫
Control board
⑬
SIPROTEC bay controller (option)
⑭
Low-voltage compartment
