Installation
17.2 IP32D - protection against vertically falling water drops for switchgear
inclined up to 15°
If the switchgear is inclined by 15°, an edge protection provides personal safety and prevents
the ingress of vertically falling water drops in the switchgear.
➭ The operations correspond to those of the installation of the protection against vertically
falling water drops of IP31D.

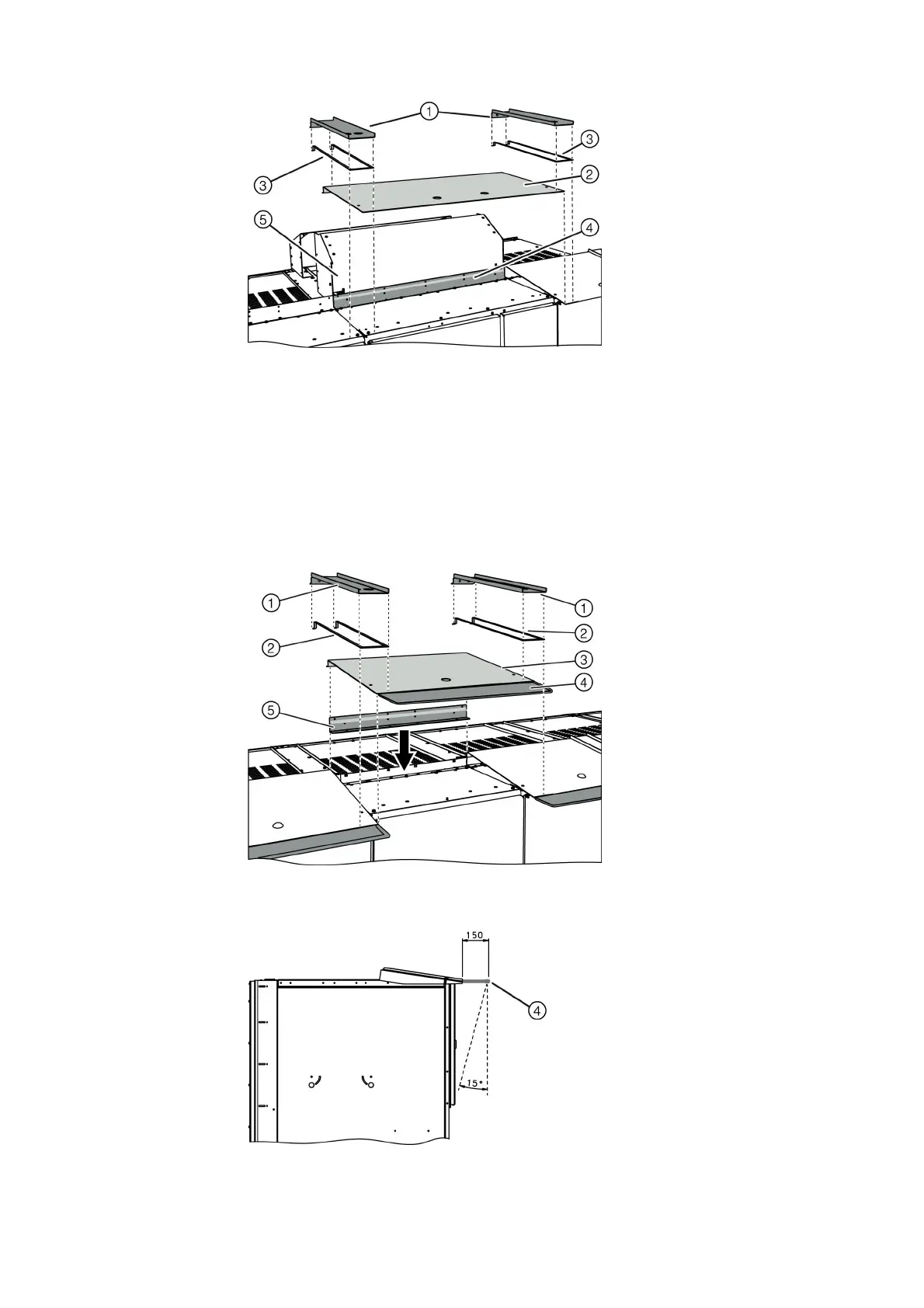

Fig. 141: Protection against vertically falling water drops on a
panel with a width of 900 mm and mounted air guides
①
Connecting plates
②
Roof plate
③
Sealing strap for
connecting plates
④
Angle plate
⑤
Air guide
Fig. 142: Roof plates with edge protection
①
Connecting plates
②
Sealing strap for connecting plates
③
Roof plate
④
Edge protection
⑤
Angle plate
Fig. 143: Edge protection when the switchgear is inclined
by 15°
④
Edge protection
