Installation
174/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9
Mounting the protection against vertically falling water drops on the high low-
voltage compartment
Attaching the sealing
straps
➭ Stick a sealing strap ① between the panels on the rear wall of the low-voltage
compartment, in line with the partition plate.
➭ Stick a sealing strap ② in line with the upper edge of the busbar cover and the rear wall of
the low-voltage compartment.
Mounting the protection against vertically falling water drops on panels with a width
of 900 mm
➭ The assembly operations correspond to the installation of the protection against vertically
falling water drops for panels with a width of 600 mm.
➭ Additionally, fasten the angle plate at the air guide and the busbar cover using
3 bolts M5x10.
INFORMATION
If the low-voltage compartment is pre-assembled, execute the assembly operations of the
protection against vertically falling water drops for a small low-voltage compartment.

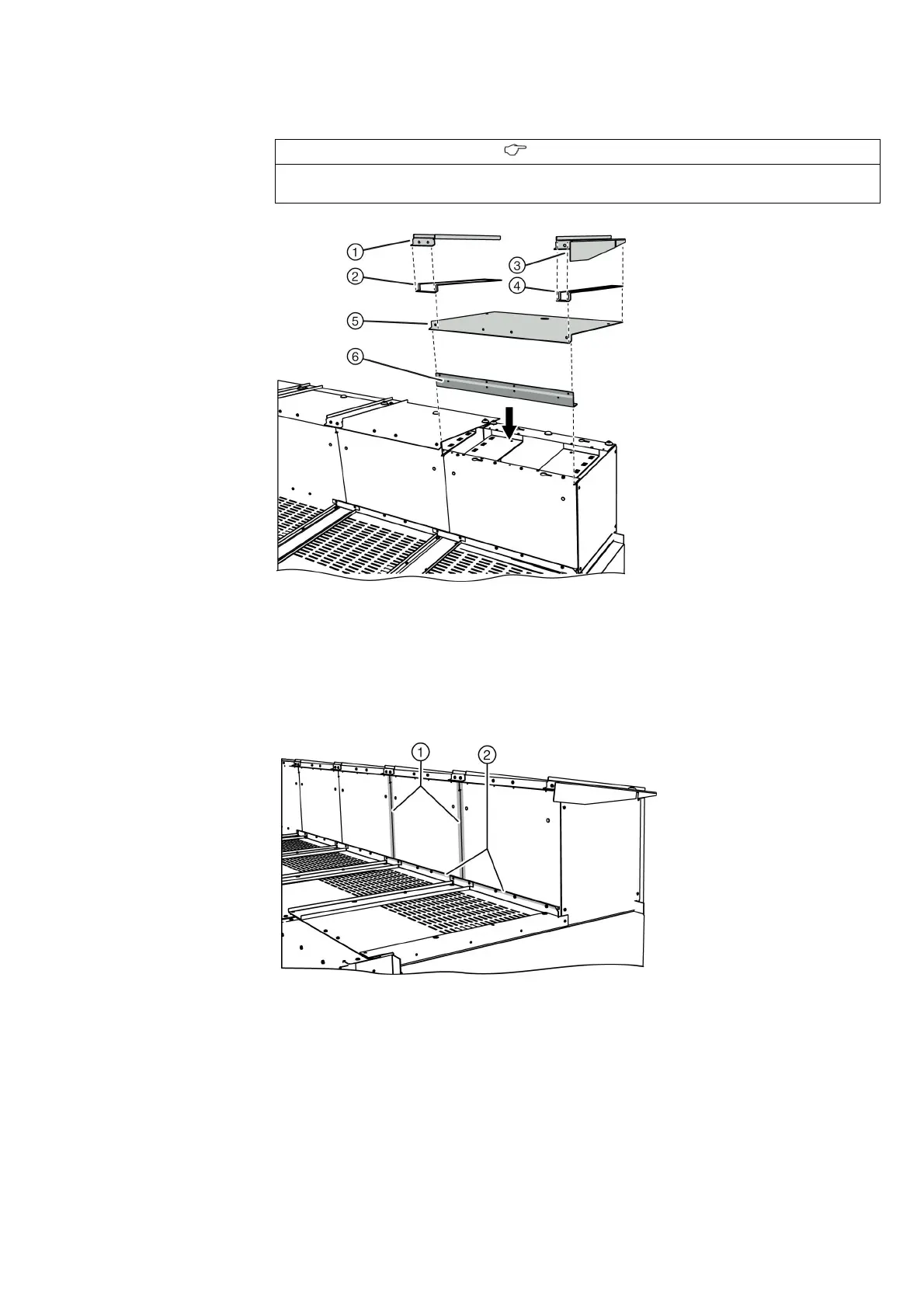

Fig. 139: Protection against vertically falling water drops on the
left end panel (view form the rear)
①
Connecting plate
②
Sealing strap for connecting
plate
③
Left end plate
④
Sealing strap for left end
plate
⑤
Roof plate
⑥
Angle plate with sealing strap
Fig. 140: Positions of the sealing straps
①
Sealing straps between the
panels
②
Sealing straps on the rear
wall of the low-voltage
compartment
