Operation

22 Work-in-progress earthing

Visible earthing without

removing the cables

➭ Earth the panel.

➭ Plug the adapter for work-in-progress earthing onto the cable T-plug of the connected

cables.

➭ Earthing accessories from different manufacturers can be connected to the spherical bolts

of the adapters. Diameter of the spherical bolts: 20 or 25 mm.

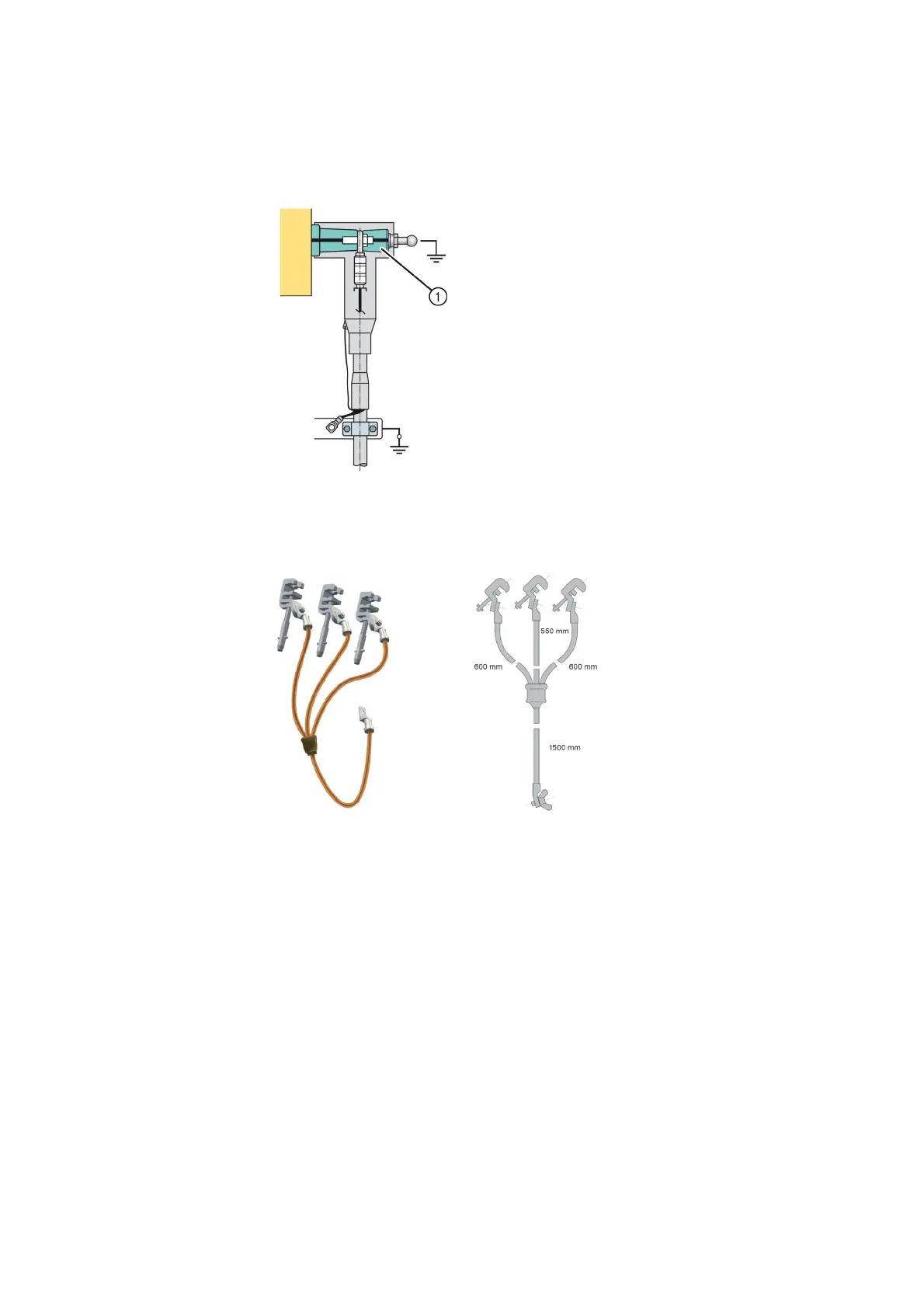

Example for earthing accessories:

①

Adapter for work-in-progress

earthing

Default Chapter3
